Broan-Nutone 1696NEF 50cfm Fan Motor-Blade-Grille (Use w/ 1667h Or 6884h Housing) REPLACES 1688ef

Product Description

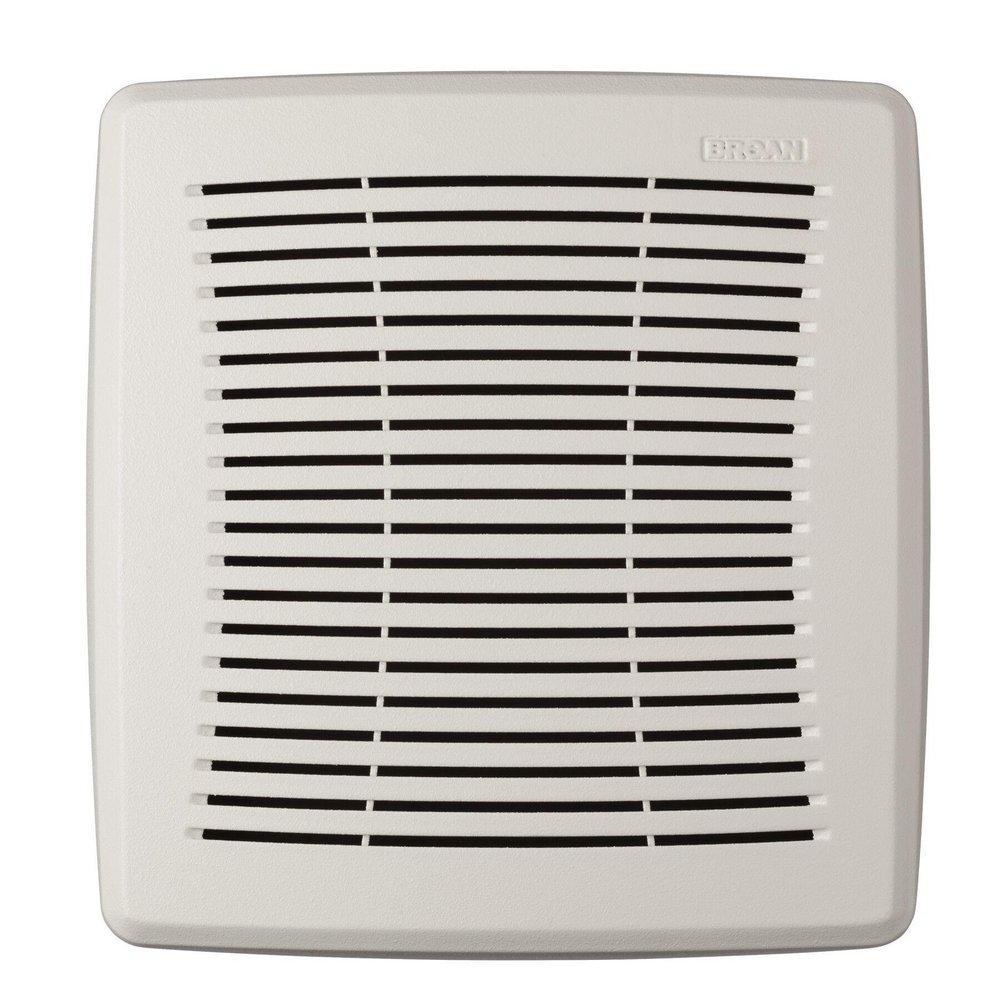

The BROAN-NUTONE 1696NEF 50cfm Fan Motor-Blade-Grille is designed for use with 1667H or 6884H housings. This motor assembly replaces 1688EF and operates at 50 CFM. It is suitable for bathroom or utility room ventilation and is ENERGY STAR certified. The unit is designed for ceiling or wall mount installations.

• ENERGY STAR Certified
• 2.0 Sones for quiet operation
• Suitable for rooms up to 50 sq. ft.

Product Highlights

The BROAN-NUTONE 1696NEF offers efficient ventilation with a motor, blade, and grille assembly. It is Energy Star certified and suitable for bathroom or utility room use.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 1696NEF

Technical Specifications

• Airflow 1 (cfm): 50.0
• Bathroom and Utility Room Airflow at 0.25 in. w.g.: 38.2
• Sound Level (sones): 2.0
• Efficacy 1 (cfm/Watt): 2.9
• Duct Size: 3 in
• Lighting: No
• ENERGY STAR Certified: Yes
• Type: Bathroom/Utility Room
• Number of Speeds: 1
• MPN: 1696NEF
• Brand: BROAN-NUTONE
• AMP: 0.3
• CFM: 50
• Color Finish Category: Whites
• Color Finish Name: White
• Depth: 9
• Energy Star Compliant: Yes
• Height: 4-3/4
• Installation Type: Ceiling Mount
• Length: 9
• Material: Plastic
• Sones: 2
• UL Listed: Yes
• Vent Duct Shape: Round
• Volts: 120V
• Width: 8-3/4
