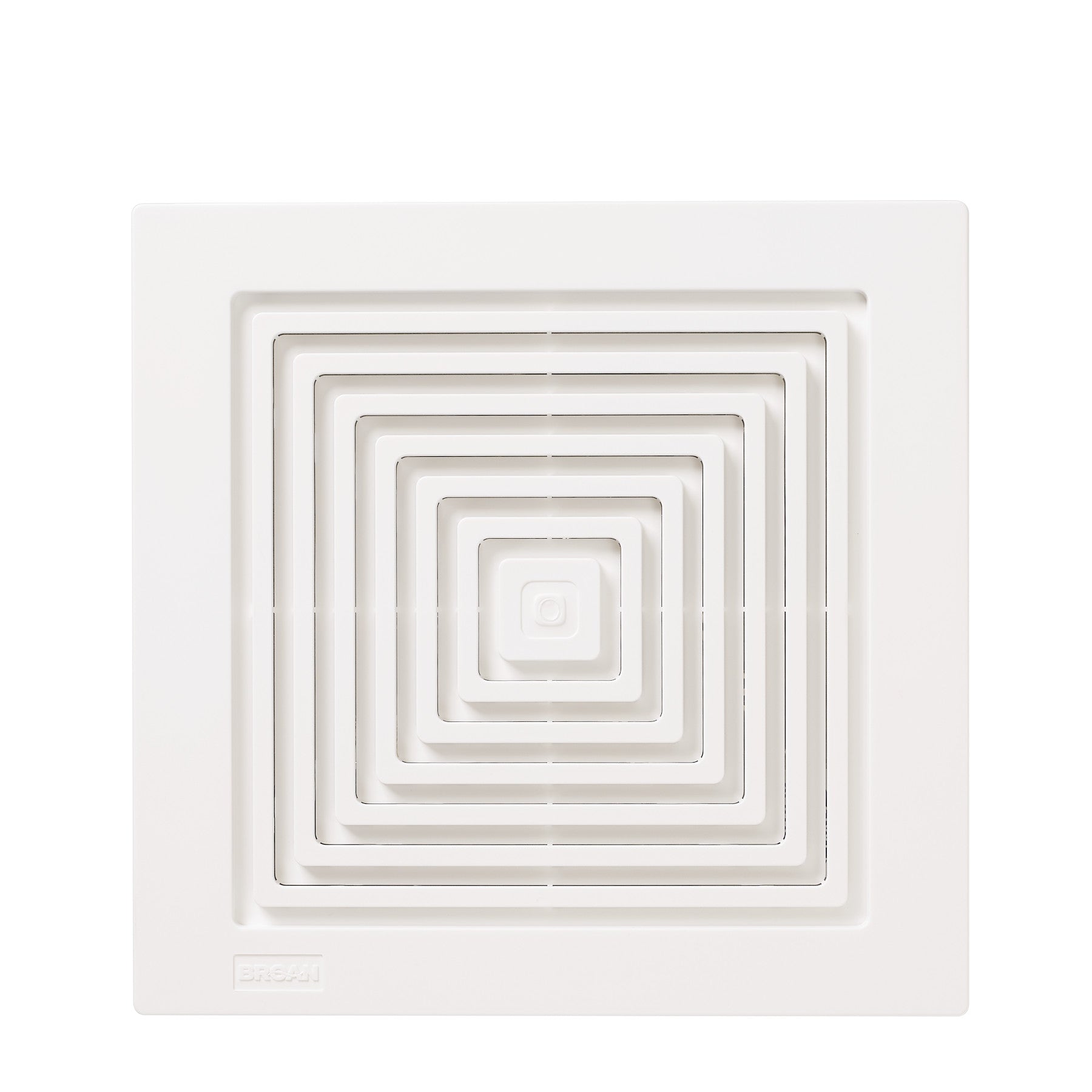

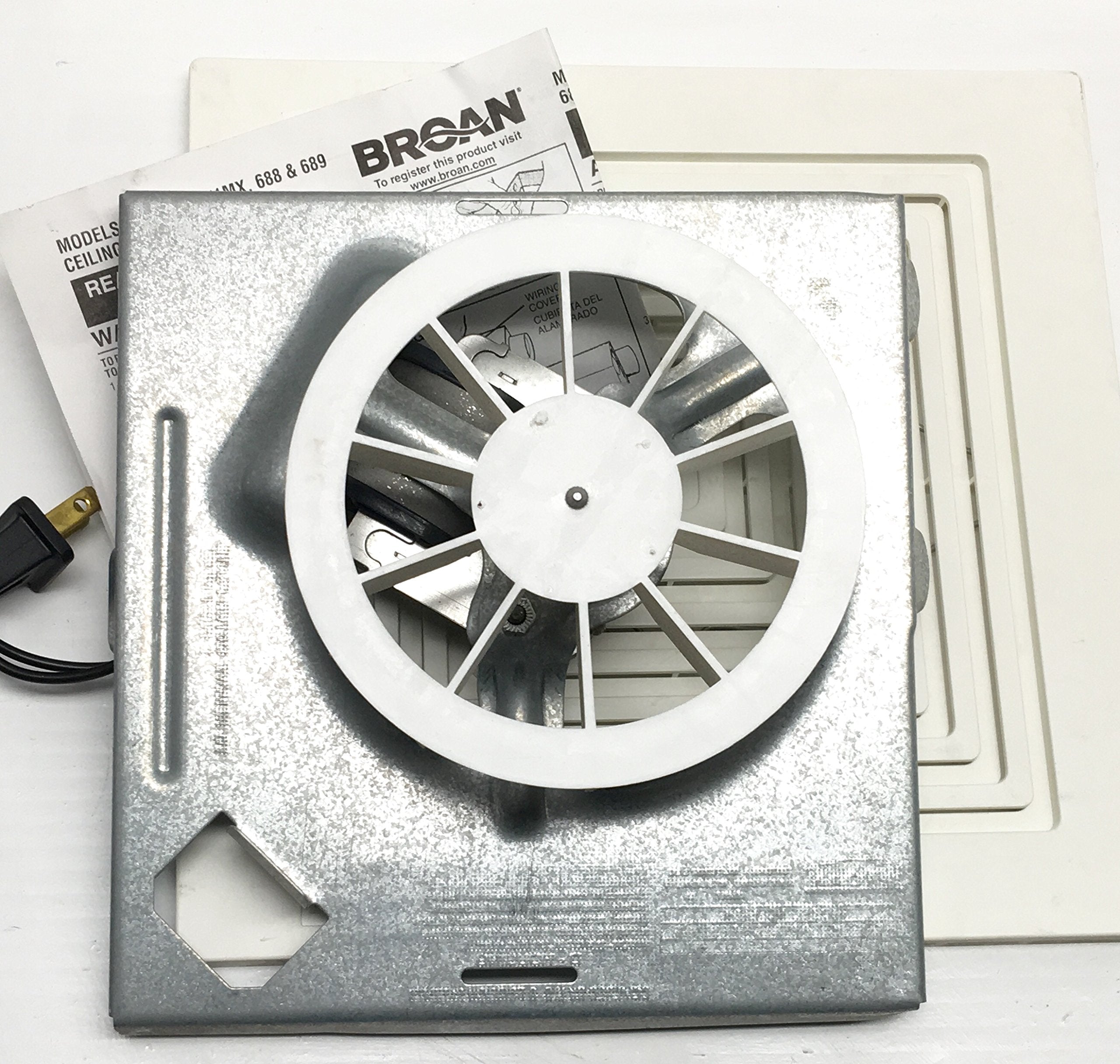

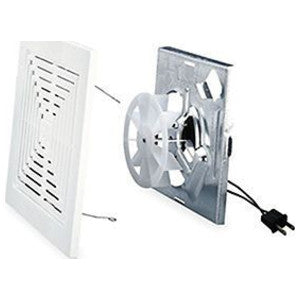

Broan-Nutone 1688F Finish Pack with Motor Assembly and Grille, 50 CFM

Product Description

The Broan-NuTone 1688F Finish Pack includes a motor assembly and grille with 50 CFM. Designed to simplify installation, this project pack allows for separate ordering of fan components, helping to prevent loss, damage, or storage issues. It is suitable for ceiling or wall mounting. The finish kit complements any decor and reduces humidity.

• Provides 50 CFM ventilation to remove odors and pollutants.
• Operates at 4.0 Sones for privacy.
• Designed for ceiling or wall installation.

Product Highlights

This finish pack includes a motor assembly and grille, offering a convenient solution for completing bathroom fan installations. It provides sufficient ventilation and quiet operation.

Product Information

Standard Information

• Brand: Broan-NuTone
• Manufacturer Part Number: 1688F
• Country of Origin: USA

Technical Specifications

• Finish types: White
• Assembly required: No
• Batteries required: No
• Included Components: Grille
• Type: Project Finish Pack
• Brand: Broan-NuTone
• Length: 7-1/2 in
• Voltage: 120 Volt
• Amperage: 0.9 Amp
• Duct Size: 3 in
• Duct Shape: Round
• Nightlight: No
• Airflow Rate: 50 CFM
• Grille Width: 9-1/4 in
• Grille Length: 9 in
• Housing Width: 7-1/2 in
• Mounting Type: Ceiling,Wall
• Housing Height: 3-5/8 in
• Housing Material: Galvanized
• Installation: Ceiling, Wall
• Air Flow: 50 CFM
• Sound Level: 4.0 Sones
• HVI Certified: True
• Grill width: 9.25"
• Catalog Number: 1688F
• Manufacturer: Broan-NuTone
• Country of Origin: United States
• Made in USA: Yes
• Special Features: Wall installation
• Item Type: Project Finish Pack
• ECCN: EAR99
• UNSPSC: 40101502
• CFM: 50
• ENERGY STAR® certified: No
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: No
• Radiation Damper Available: No
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Heater Wattage: 0
• Recommended Room Size (Sq Ft): 45
• Rated Amps: 0.9
• Can Be Used To Comply With Title 24: No
• Minimum Construction Space Required: 2" x 4"
• High Efficiency Luminaire: No
• Voltage Rating: 120 V
• Amperage Rating: 0.9 A
• Frequency Rating: 60 Hz
• Material: Steel, Polymeric
• Finish: Galvanized
• Color: White Grille
• Width: 7-1/4 in
• Height: 3-5/8 in
• CFM Rating: 50 cfm at 0.1 in
• Phase: 1
• Model/Part Number: 1688F
• Base Unit of Measure: Unit(S)
• Wattage: 55 W
• Product Voltage: 120 VAC
