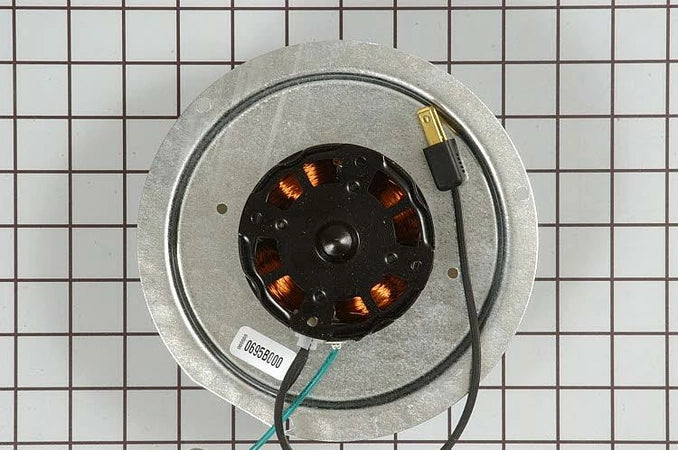

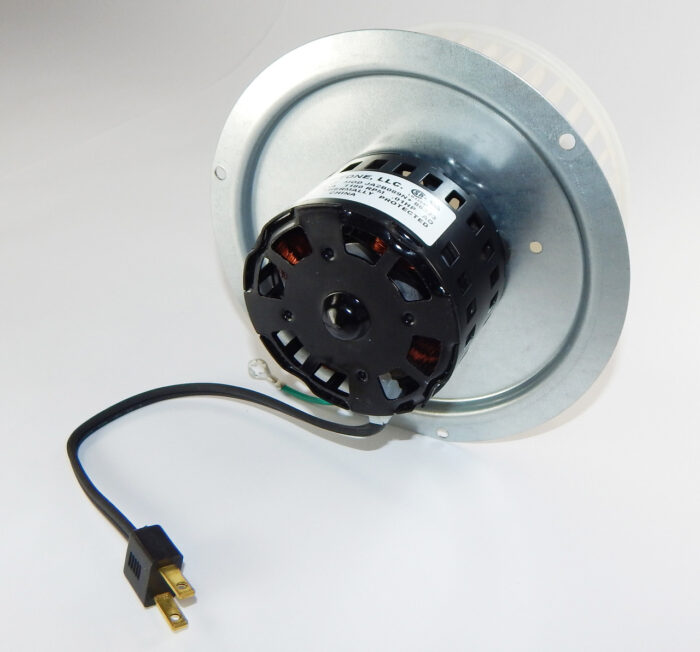

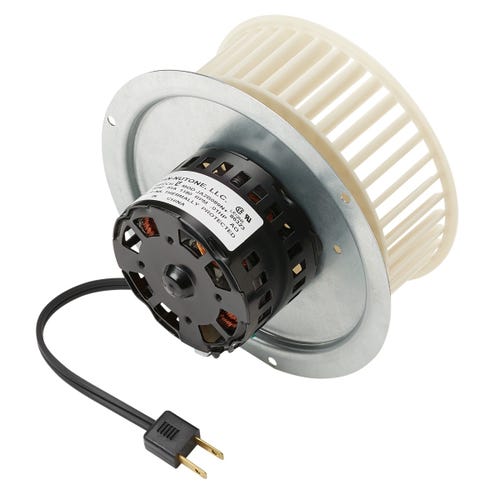

BROAN-NUTONE 0695B Blower Assembly

Product Description

The BROAN-NUTONE 0695B blower assembly is a replacement part for ventilation systems. This assembly offers a pre-assembled motor, blower wheel, and motor mounting plate. It operates at a voltage of 120V and a current of 0.61 amps. The CW Shaft End rotation and speed of 1180 RPM make it suitable for various Broan-Nutone models, including the QT80.

• Includes pre-assembled motor, blower wheel, and mounting plate.
• Motor operates at 120V, 0.61 amps, and 1180 RPM.
• Features a 2-prong plug for easy installation.

Product Highlights

This blower assembly is essential for maintaining efficient air circulation in ventilation systems.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• MPN: 0695B

Technical Specifications

• Weight: 2.751800 lbs
• Dimensions: 7.5 x 7.5 x 6.8 inches
• Motor Diameter: 3.3 inches
• RPM: 1180
• Current: 0.61 amps
• Input Voltage: 120V
• Rotation: CW Shaft End
• Shaft Size: 1/4 x 1 inches
• Motor Case Length: 2 inches
• Mounting Plate: 5 13/16 inches on center
• Blower Wheel Dimensions: 6 1/4 x 2 inches
• Plug Type: 2 Prong
