Broad-ocean Motor 0131m00717s Ecm Blower Motor 1HP 460V

Product Description

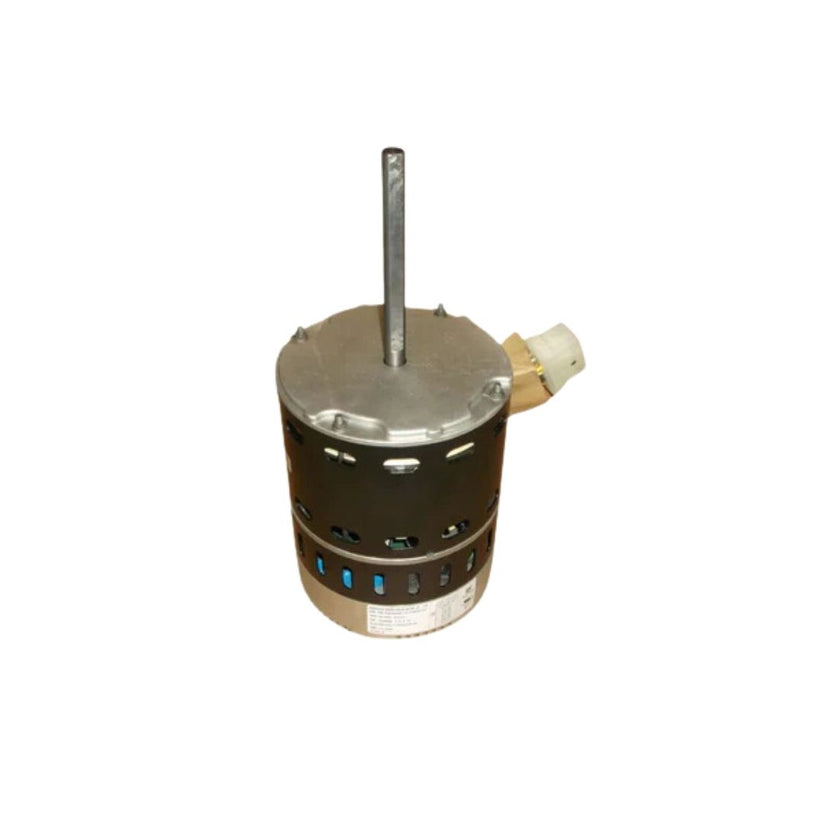

The BROAD-OCEAN MOTOR 0131m00717s is a 1 HP ECM direct drive blower motor designed for forced-air HVAC systems requiring variable speed operation at 460 volts. Running at up to 1400 RPM with electronically commutated motor technology, this unit delivers precise airflow control and improved efficiency over standard PSC motors. The open air-over body with ball bearings supports continuous duty in air handler and furnace blower applications. Licensed HVAC technicians performing equipment upgrades or warranty replacements handle this motor as a direct drive, belly band mounted unit. The counter-clockwise rotation at the lead end and 1/2-inch flat shaft are key orientation details before installation.

This motor is suited for commercial and light commercial air handling equipment operating on single-phase 460-volt power at 50 or 60 Hz. The variable speed ECM design makes it appropriate for systems that modulate airflow in response to demand, including multi-stage and zoned HVAC configurations. The belly band mounting style fits standard blower scroll housings in rooftop units, air handlers, and horizontal furnace cabinets where direct drive blower assemblies are specified. At 15.65 pounds and 12 inches overall length, it fits within typical blower cabinet envelopes for this frame class.

Key Features

• ECM variable speed technology for precise airflow and improved system efficiency over PSC alternatives
• Belly band mounting for straightforward drop-in replacement in compatible blower housings
• Ball bearing construction supports continuous duty and extended service intervals
• Open air-over body design — motor is cooled by airflow passing through the blower assembly
• Counter-clockwise rotation at the lead end with a 1/2-inch flat shaft for positive drive engagement
• Single-phase 460V operation at 50 or 60 Hz suits a range of commercial equipment configurations

Compatibility

Designed as an OEM-style ECM direct drive replacement for single-phase 460-volt air handling and blower assemblies using a Frame 48, belly band mounted motor with a 5-5/8-inch diameter body.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor or making any wiring connections. Confirm shaft rotation direction and belly band positioning before securing the motor in the scroll housing, as reversing orientation will result in incorrect airflow direction. Follow all applicable NEC requirements for motor branch circuit wiring and overcurrent protection on 460-volt single-phase equipment.

Technical Specifications

• Motor Type: ECM Direct Drive
• Horsepower: 1 HP
• Voltage: 460 volts
• Phase: Single
• Frequency: 50/60 Hz
• Amperage: 1.84 amps
• Speed: 1400 RPM / Variable
• Rotation: Counter Clockwise Lead End
• Frame: 48
• Mounting: Belly Band
• Bearing Type: Ball
• Body Type: Open Air-Over
• Shaft: 1/2 inches Flat x 5 inches
• Motor Diameter: 5-5/8 inches
• Motor Length Less Shaft: 7 inches
• Overall Length: 12 inches
• Weight: 15.65 pounds
• Country of Origin: China

Standard Information

• Brand: BROAD-OCEAN MOTOR
• Manufacturer Part Number: 0131m00717s
