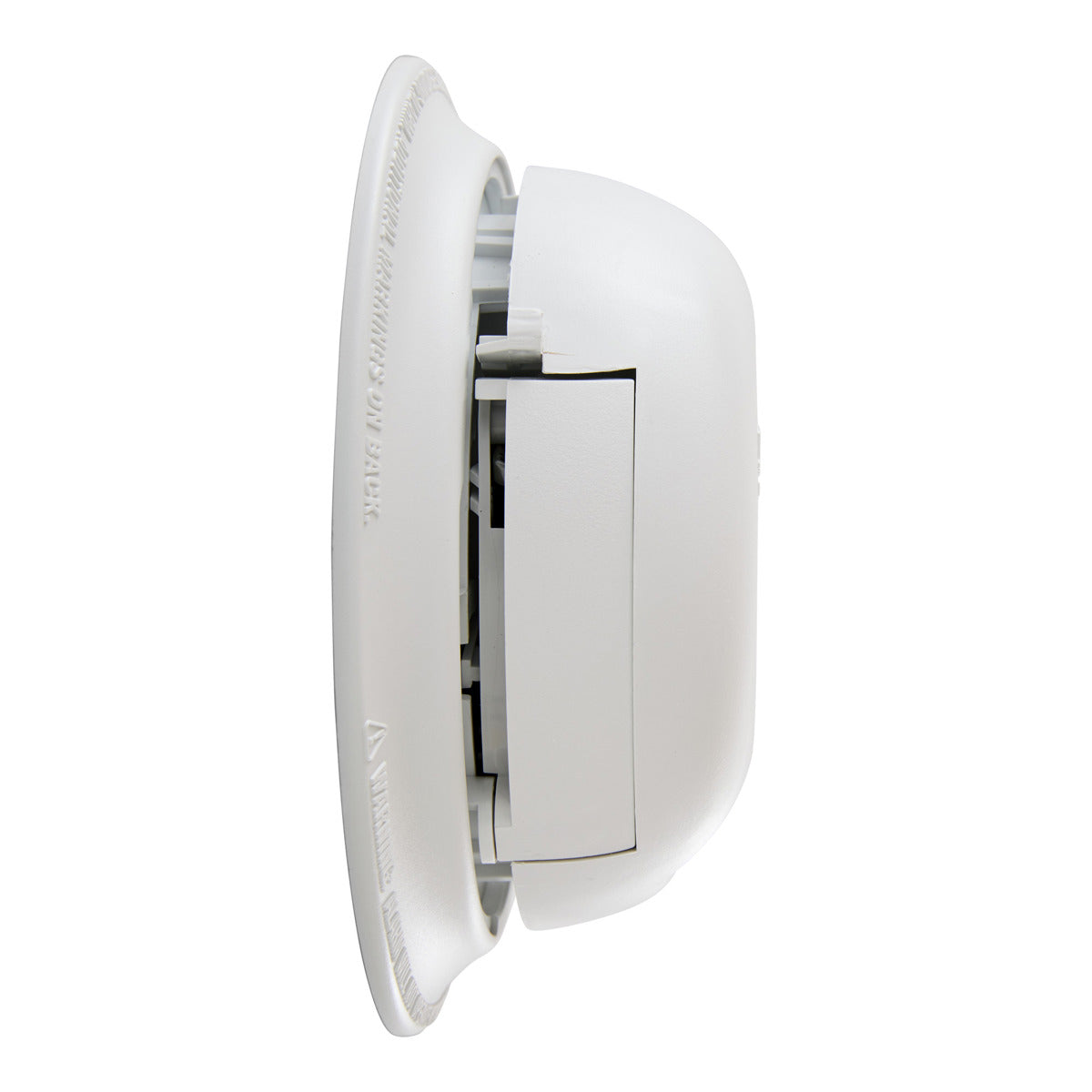

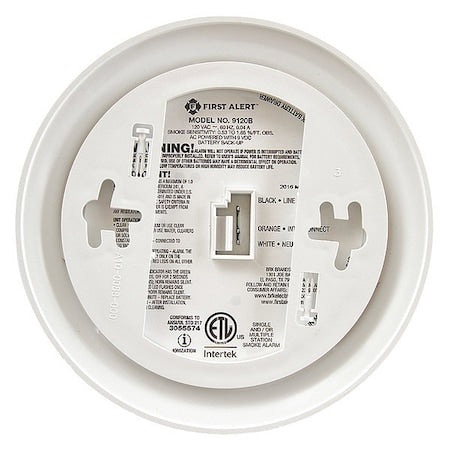

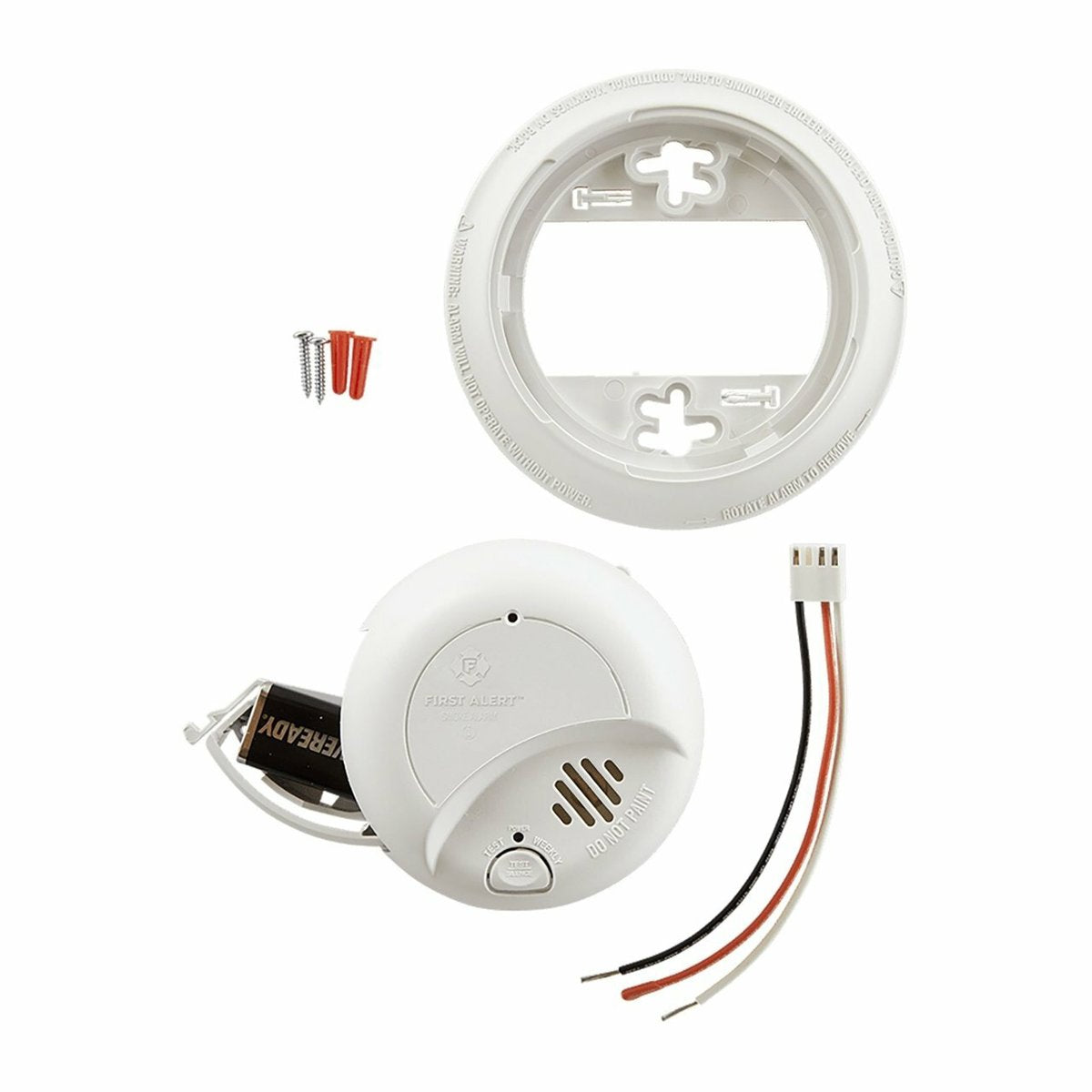

Brk 9120B 120V ac 60Hz Wire-In Smoke Alarm, 9V Battery Backup

Product Description

The BRK 9120B smoke alarm is designed for residential and institutional applications. This 120V AC, 60Hz wire-in smoke alarm comes with a 9V battery backup. It is designed for single or multiple station use and helps reduce nuisance alarms.

• Single button test/silence
• 9V Battery Backup
• Latching alarm indicator remembers which unit initiated an alarm

Product Highlights

The BRK 9120B smoke alarm features easy installation, smart technology to reduce nuisance alarms, and a 10-year limited warranty.

Product Information

Standard Information

• Brand: BRK
• Manufacturer Part Number: 9120B
• Country of Origin: Mexico

Technical Specifications

• Type: Ionization Smoke Alarm
• Brand: BRK
• Product UPC: 02905451301
• Sensor Type: Ionization
• 12-Digit UPC: 029054513014
• Application: Single and or multiple station alarm specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories and other multi-family dwellings as defined in standard NFPA 101.
• Output Current: 0.04 Amps
• Operating Voltage: 120V AC 60Hz w/ 9V battery backup
• Enclosure Material: Plastic
• Buy American Compliant: Y
• Environmental Conditions: 10 to 90 PCT
• Country of Origin: Mexico
• Made in USA: No
• Mounting: Ceiling
• Sensitivity: Audio Alarm: 85dB at 10 feet
• Standard: UL217
• Item Type: Smoke Alarm
• Temperature Range: 40 Degree F (4 Degree C) to 100 Degree F (38 Degree C)
• Alarm Type: Smoke Alarm
• Audible Alert: 85 dB @ 10 ft
• Interconnection Capability: Up to 18 Units
• Operating Temperature: 40 to 100 deg F
• Power Source: 120 VAC
• Visual Alert: Red LED
• GTIN: 00029054513014
• Power Consumption: 120V AC 60Hz w/ 9V Carbon Zinc battery backup
• Mounting Type: Electrical junction box; wall or ceiling
• Standby Current: 0.04 Amps (standby/alarm)
• IGCC: 7572
• Sensor: Ionization Smoke Sensor
• Hush Mode: Yes
• Test Button: Yes
• Battery Size: 9V
• Battery Backup: Yes
• Compatible With: BRK Hardwired Alarms
• Detection Method: Ionization
• Detector Features: Hush Button, Side Loading Battery, Test Button
• Visual Alert Type: LED
• Battery Locking Pin: Yes
• Detector Power Source: Hardwired
• Communication Protocol: Not Applicable
• Number of Tandem Detectors: 18
• Maximum Operating Temperature: 100 Degrees F
• Minimum Operating Temperature: 40 Degrees F
• Voltage Rating/Source: 120 VAC at 60 Hz with 9 V Battery Backup
• LED/Strobe Type: Red LED Indicating DC Power, Green LED Indicating Constant AC Power
• Horn Type: 85 dB at 10 Ft
• Approval: UL 217, CSFM, NFPA 72
• Alarm Size: 5.6 Inch Dia x 2 Inch H
• Current Rating: 0.04 Ampere
• ADA Compliant: No
• Visual Alert Style: LED
• Includes Batteries: Yes
