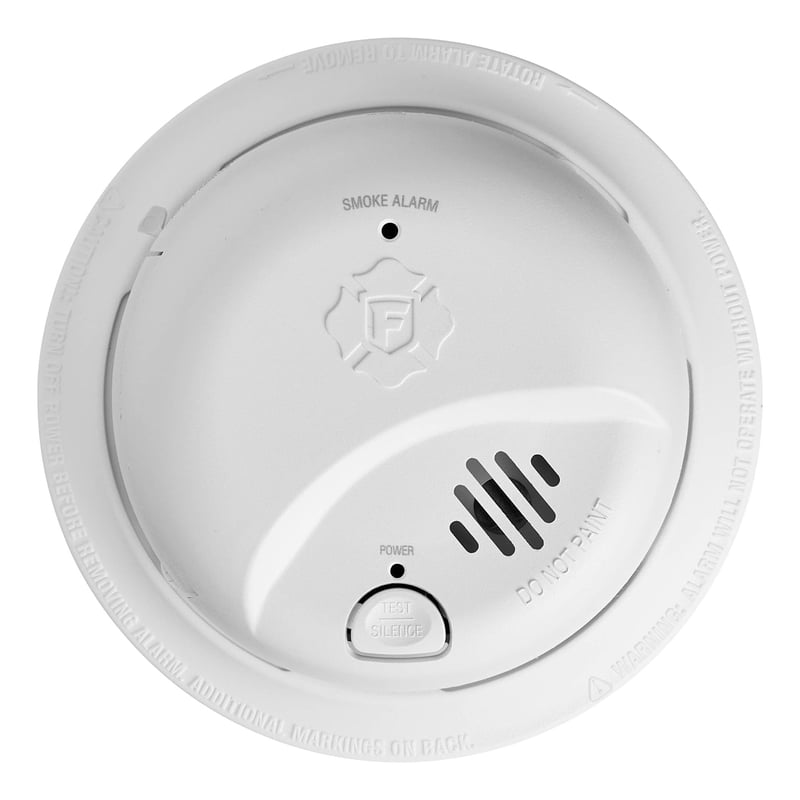

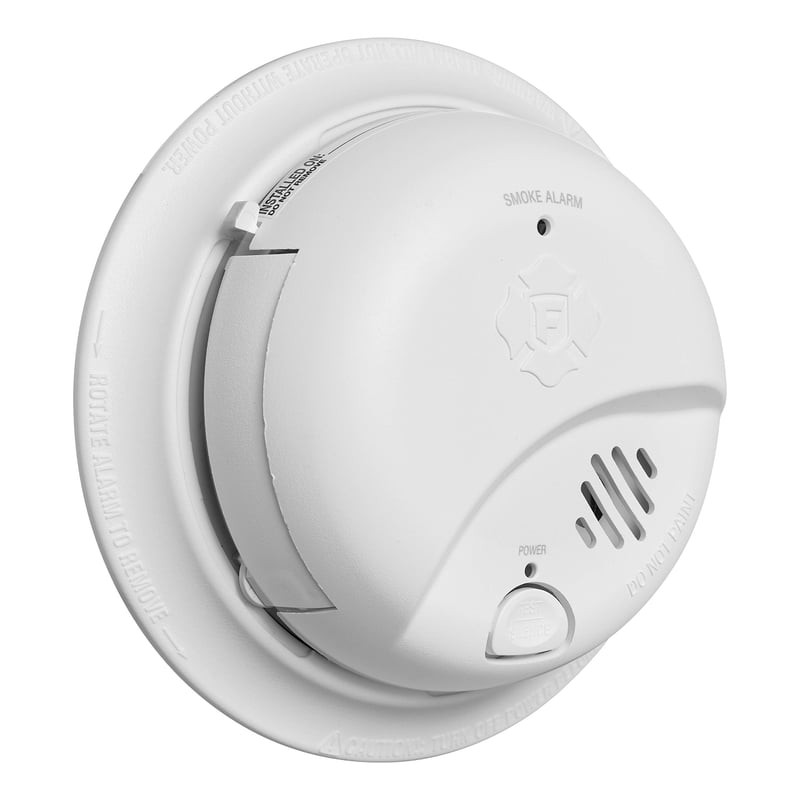

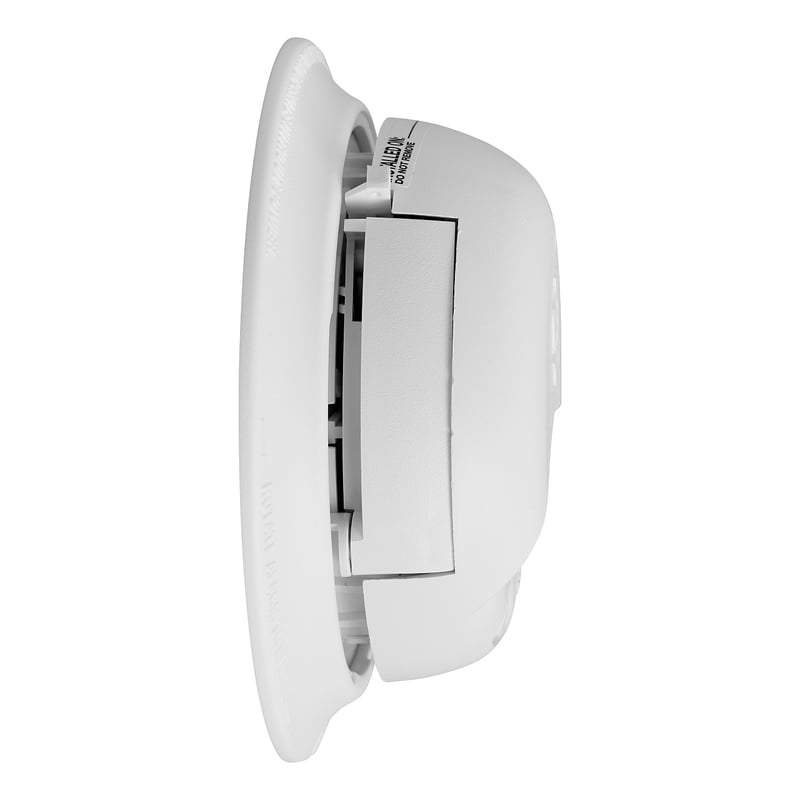

Brk 1046836 SMI100-AC Interconnect Hardwire Smoke Alarm With Battery Backup Replacement 9120B

Product Description

The BRK SMI100-AC 1046836 is an interconnect hardwire smoke alarm with battery backup. It features direct wire-in with 9V battery backup for protection during power outages. The alarm interconnects with most First Alert and BRK hardwired alarms, sounding all compatible alarms when one is triggered. Includes ionization smoke sensing technology.

• Direct wire-in with 9V battery backup.
• Interconnects with most First Alert and BRK hardwired alarms (up to 12 smoke alarms and 6 other alarms).
• Test/Silence Button for temporarily silencing or testing the alarm.

Product Highlights

Hardwired smoke alarm with battery backup and interconnectivity. Ideal for new or replacement installations.

Product Information

Standard Information

• Brand: BRK
• Manufacturer Part Number: 1046836
• Country of Origin: United States

Technical Specifications

• MPN: 1046836
• Brand: BRK
• Type: Smoke Alarm
• Sensor: Ionization
• Standard: Conforms to UL 217 8th Edition Standard
• Application: Hardwire Quick Connect Plug Included
• Battery Type: 9V Alkaline
• Power Sources: Hardwired
• Special Features: End-of-Life Warning,Precision Detection,Battery Backup,Hardwire Interconnectivity,Hardwire Quick Connect Plug Included
• Number Of Batteries: 1
• Alarm Type: Smoke

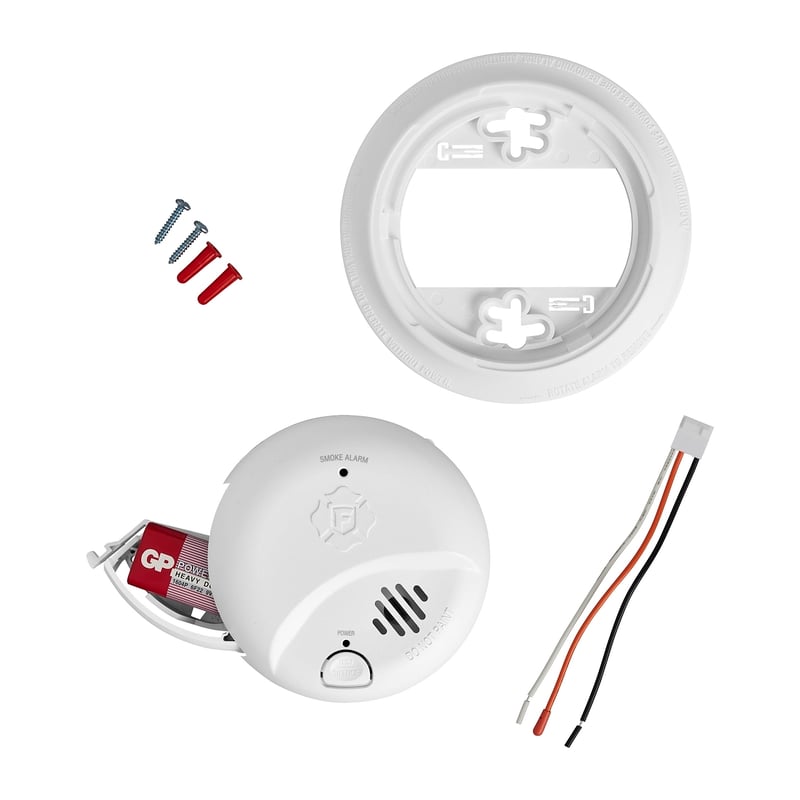

• Includes: Easy Adapter Plug, 9V Alkaline Battery
• Model #: SMI100-AC
• Operating Voltage: 120V AC 60Hz w/ 9V battery backup (9120B only)
• Operating Current: .04 amps (standby/alarm)
• Temperature Range: 40��F (4��C) to 100��F (38��C)
• Humidity Range: 10% to 90% relative humidity (RH)
• Audio Alarm: 85dB at 10 feet
• Test/Silence: Electronically simulates smoke condition, causing the unit to alarm Press and hold test/silence button
• Alarm Reset: Automatic when smoke clears
• Interconnections: Up to 18 units of First Alert or BRK Smoke, CO and Heat Alarms. Maximum of 12 smoke alarms. See user��s manual for details.
• Smoke Sensor: Dual chamber ionization
• Indicator Lights/Sounds: AC Power: Constant Green LED DC Power: Intermittent Red LED (9120B only) Local Alarm: Red LED flashes rapidly Remote Alarm: Red LED out. Latching Alarm: Green LED flashes 2 sec. on/2 sec. off after local alarm
• Listing: Listed to UL217 8th Edition Standard
• Model: SMI100-AC
• Category: Smoke & CO Detectors / Fire Safety
