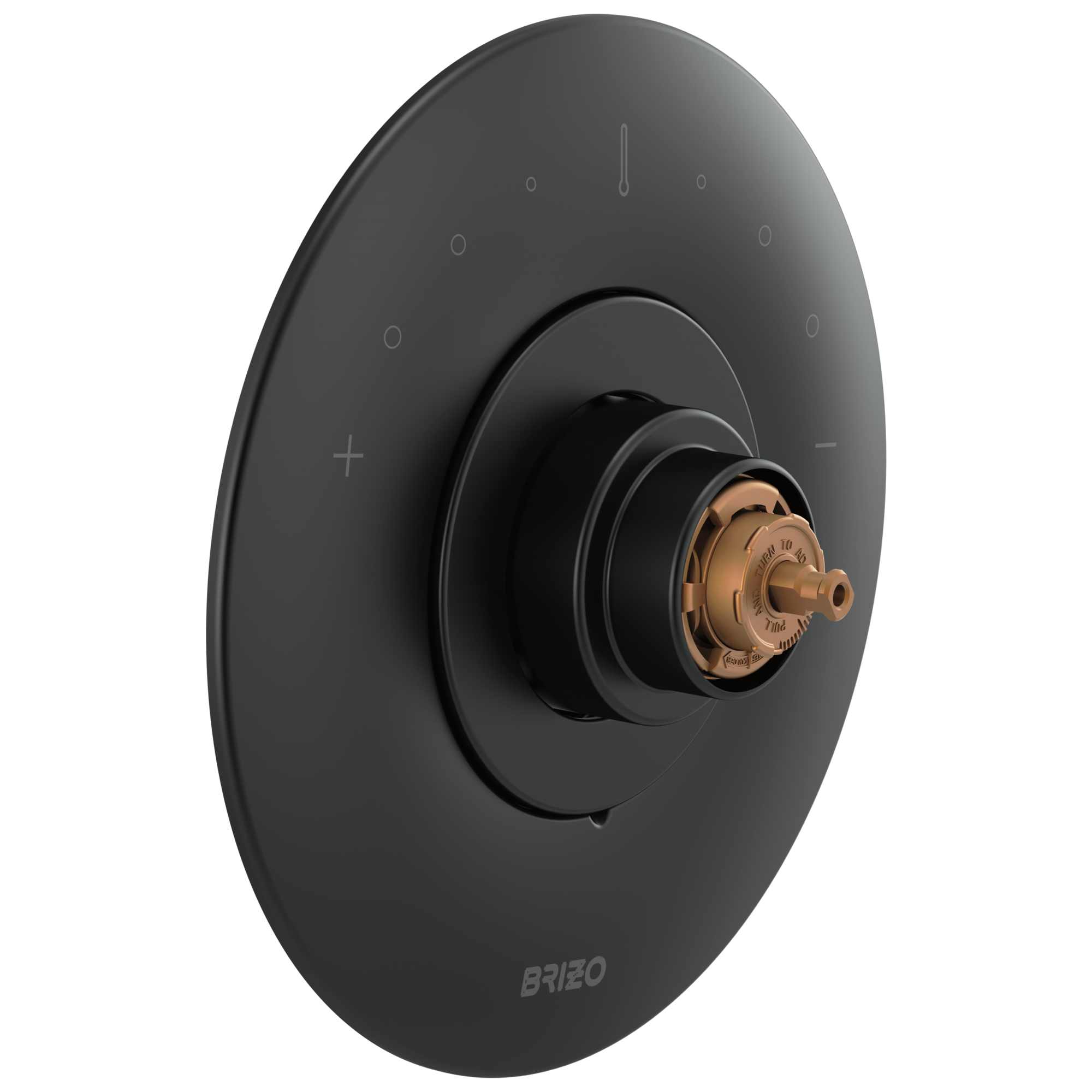

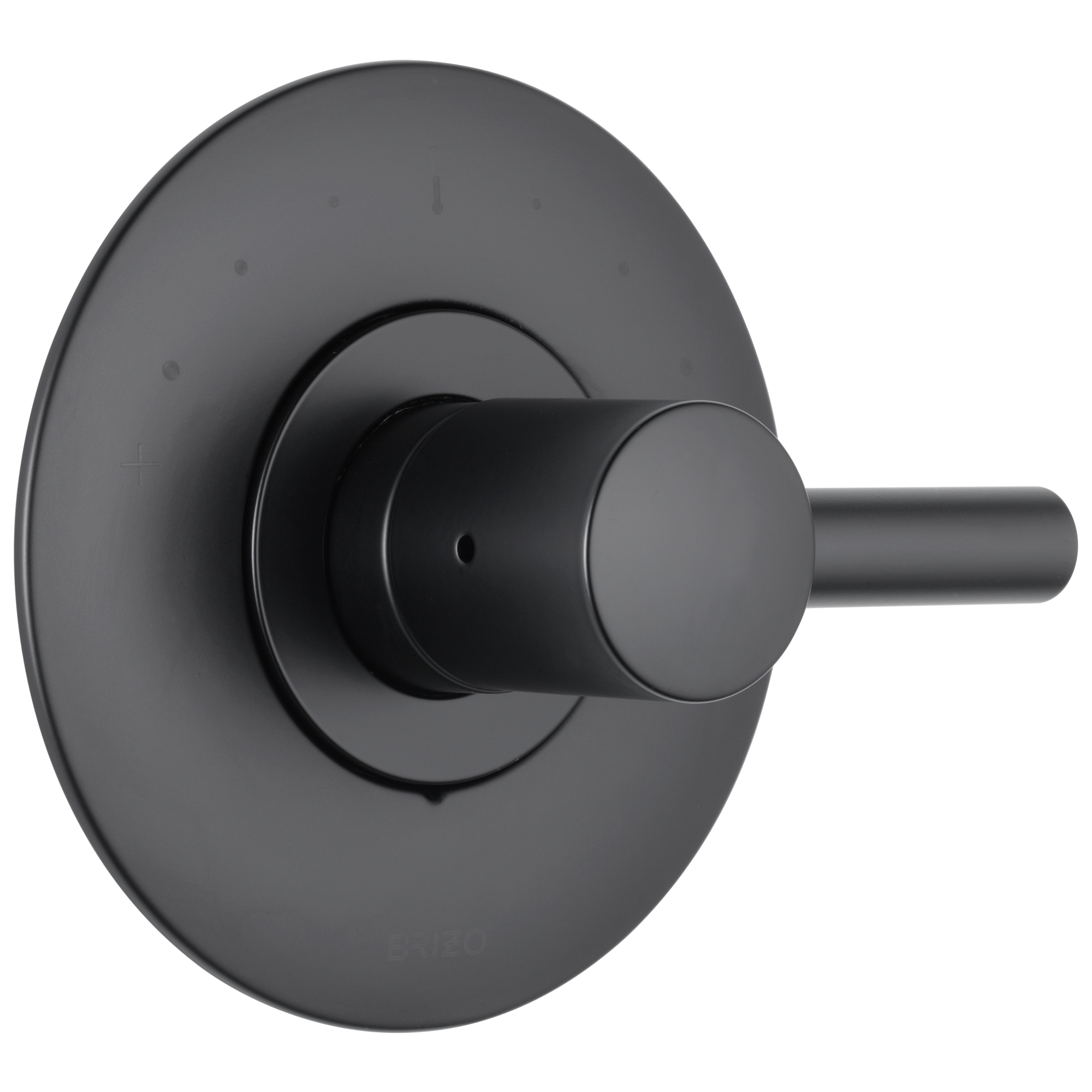

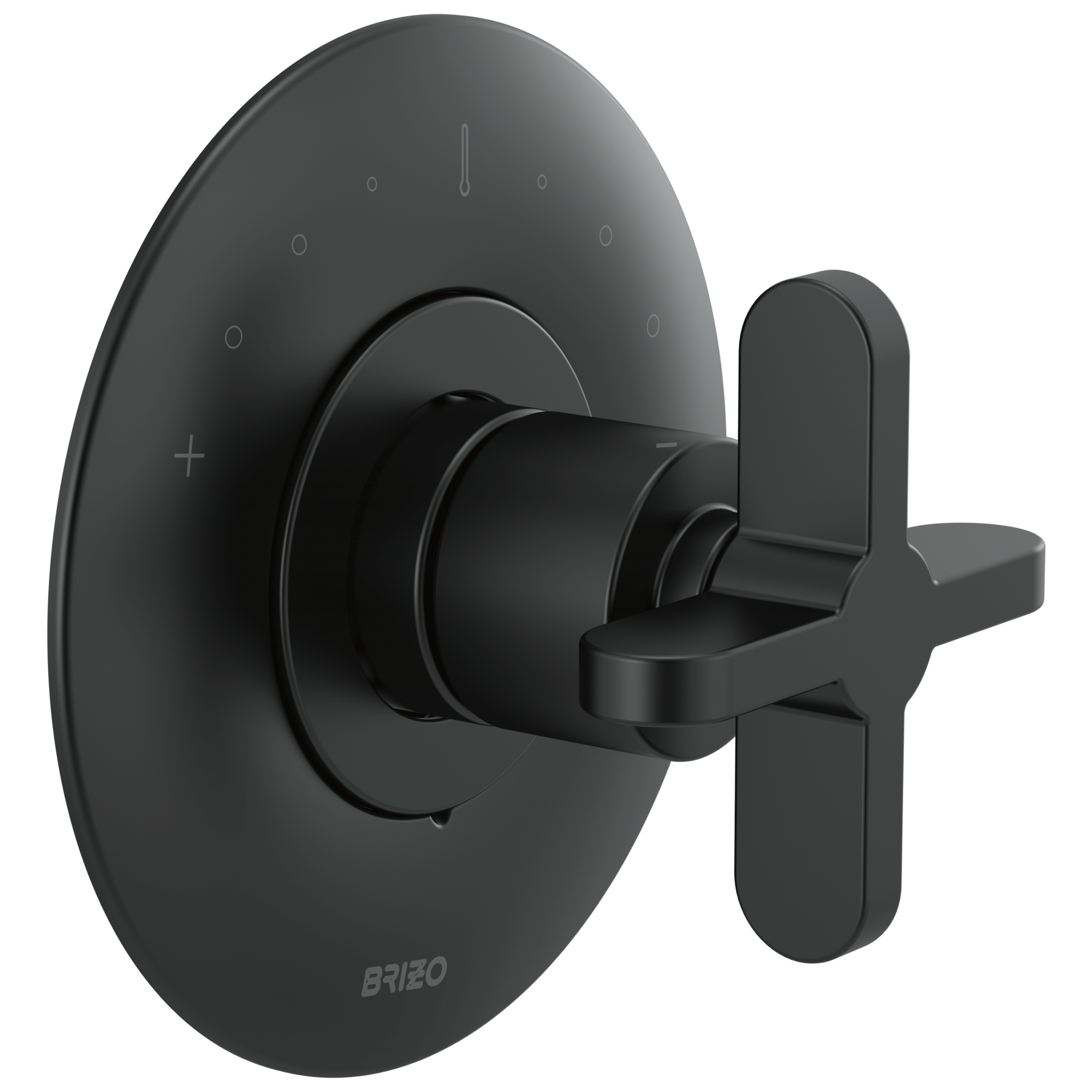

Brizo T66T075-BL Jason Wu for Brizo Sensori Thermostatic Valve Trim

Product Description

The Brizo T66T075-BL Jason Wu for Brizo Sensori Thermostatic Valve Trim includes a Sensori thermostatic cartridge. This trim regulates and maintains water output temperature. Clear markings indicate hot and cold ranges. It features a limit stop to prevent water from exceeding one hundred twenty degrees Fahrenheit.

• Includes Sensori thermostatic cartridge for reliable control.
• Maintains outlet temperature accuracy of +/- 3.6 degrees Fahrenheit.
• High temperature limit set to one hundred twenty degrees Fahrenheit for safety.

Product Highlights

This valve trim is ideal for residential bathroom installations, ensuring consistent water temperature during use.

Product Information

Standard Information

• Manufacturer: Brizo
• Colour: Matte Black

Technical Specifications

• Thermostatic cartridge: Ships with trim
• High Temperature Limit Stop: 120 degrees Fahrenheit
• Temperature Control: Sensori thermostatic control +/- 3.6 degrees Fahrenheit
• Installation: Accommodates wall thickness up to five eighths inches
• Extension Kit: RP72604 extends installation up to one and three quarters inches
• Handle controls temperature: Must be used with Sensori volume controls
• Valve Trim Diameter: Seven and a half inches
• Valve Trim Projection: Three and one eighth inches from wall
