Brizo t60288-bl Thermostatic Shower Only Trim

Product Description

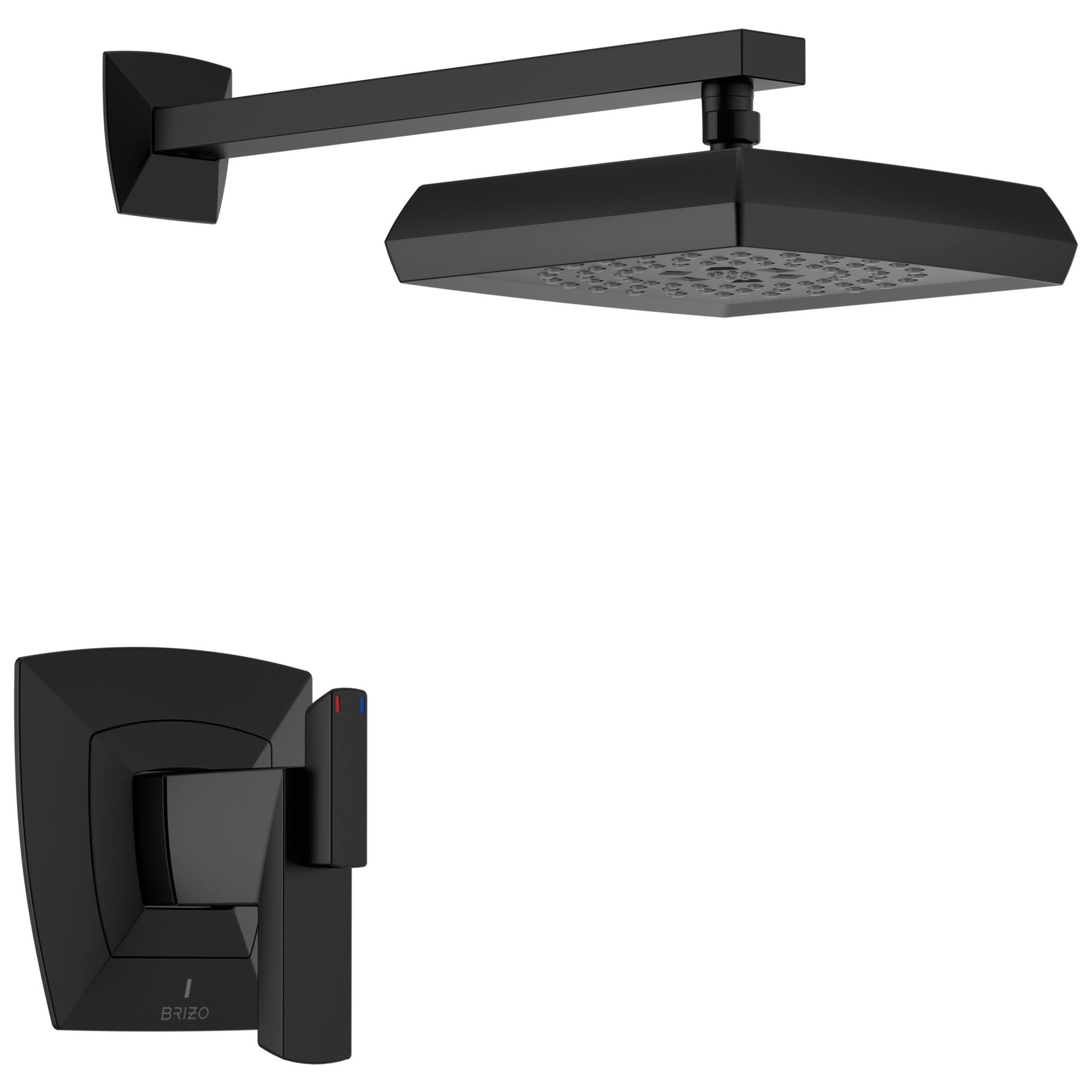

The BRIZO t60288-bl is a TempAssure thermostatic shower-only trim designed for residential shower installations where precise temperature control and consistent water delivery are the priority. This trim pairs with the MultiChoice Universal rough-in valve body, providing independent temperature and volume control through separate handles. The showerhead uses H2Okinetic technology with self-cleaning spray holes, delivering a medium flow rate of 1.75 gallons per minute at 80 psi. The included 13-inch decorative solid brass shower arm and 8-inch by 8.5-inch showerhead give this trim a defined footprint suited to both remodel and new-construction applications. Finish is matte black.

This trim is intended for residential shower-only applications and installs over a pre-installed MultiChoice Universal thermostatic rough-in valve. The TempAssure thermostatic cartridge maintains a set water temperature even when other fixtures in the system draw flow, reducing the risk of unexpected temperature swings during a shower. Independent volume control allows the user to pause or adjust flow without disturbing the temperature setting. Red and blue temperature markings on the handle aid in clear identification. The optional RP91022 extension kit extends the rough-in installation depth up to 1.75 inches when needed.

Key Features

• TempAssure thermostatic valving maintains set temperature independent of supply pressure fluctuations
• H2Okinetic showerhead with self-cleaning spray holes for low-maintenance operation
• Independent temperature and volume controls on a single trim assembly
• 13-inch decorative solid brass shower arm included
• Showerhead plate measures 8 inches by 8.5 inches
• Compatible with optional RP91022 extension kit for installations requiring up to 1.75 inches of additional depth

Compatibility

Designed for use with the MultiChoice Universal thermostatic rough-in valve body. The appropriate finish must be ordered separately to match trim. When rough-in depth requires adjustment, the RP91022 extension kit extends installation up to 1.75 inches.

Installation Notes

Installation of thermostatic shower trim is typically performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply to the valve rough-in before beginning trim installation. Verify the rough-in valve body is fully set and pressure-tested before attaching trim components. Do not overtighten the shower arm connection into the brass outlet; use thread sealant tape on all threaded joints.

Technical Specifications

• Maximum Flow Rate: 1.75 gpm at 80 psi
• Showerhead Dimensions: 8 inches x 8.5 inches
• Shower Arm Length: 13 inches
• Shower Arm Material: Solid brass
• Rough-In Extension (optional RP91022): Up to 1.75 inches
• Finish: Matte Black

Standard Information

• Brand: BRIZO
• Manufacturer Part Number: t60288-bl
