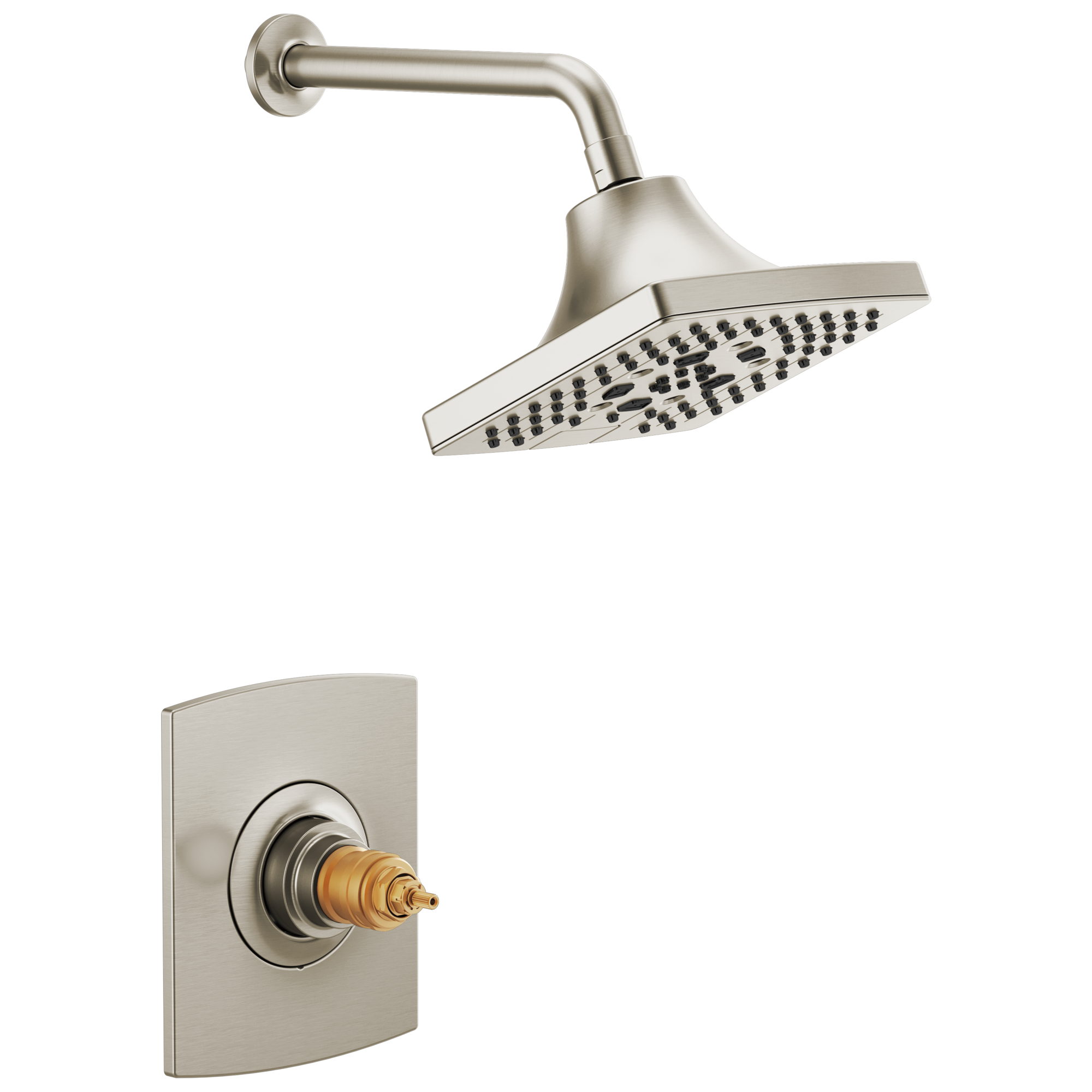

Brizo t60206-nklhp Thermostatic Shower Trim 1.75 Gpm

Product Description

The BRIZO t60206-nklhp is a thermostatic shower-only trim kit designed for use with a compatible in-wall thermostatic valve body. The kit includes the TempAssure thermostatic cartridge and all necessary trim components, but does not include volume or temperature handles. The integrated thermostatic cartridge maintains outlet water temperature within plus or minus 3.6 degrees F of the set point, protecting occupants from sudden temperature swings. A high-temperature limit stop is factory-set at 120 degrees F. The showerhead offers five spray settings selectable via a push-button, including H2Okinetic Rinsing Spray, Shampoo Spray, Full Spray, Full plus Shampoo Spray, and Massage Spray. Maximum flow rate is 1.75 gallons per minute at 80 psi.

This trim is suited for residential shower applications where a thermostatic system has already been roughed in with a compatible valve body. The independent temperature and volume controls allow the user to preset a comfortable temperature and adjust flow separately, a common setup in master bath and luxury shower installations. Markings on the trim indicate hot and cold positions for quick reference. The spray face carries a finished appearance consistent with the Nickel Luxe Hammerhead Platinum finish designation in the part number. Licensed plumbers typically handle the trim-out phase of this installation after the valve body has been set during rough-in.

Key Features

• TempAssure thermostatic cartridge maintains outlet temperature within plus or minus 3.6 degrees F
• High-temperature limit stop preset at 120 degrees F for scald protection
• Independent temperature and volume control
• Five selectable spray settings via push-button: H2Okinetic Rinsing Spray, Shampoo Spray, Full Spray, Full plus Shampoo Spray, and Massage Spray
• Finished spray face included
• Trim-only kit — handles sold separately

Compatibility

Designed as an OEM-style thermostatic shower trim for use with a compatible Brizo in-wall thermostatic valve body; specific compatible valve body model numbers were not provided in the available product data and should be confirmed with the manufacturer before ordering.

Installation Notes

Installation should be performed by a licensed plumber during the trim-out phase, after the thermostatic valve body has been properly roughed in and pressure-tested per local plumbing codes. Shut off the water supply to the shower system before beginning any trim work. Confirm the valve body matches this trim kit before installation, as thermostatic cartridges are not universally interchangeable. Follow all applicable IPC and local plumbing code requirements, including maximum temperature limit stop settings.

Technical Specifications

• Maximum Flow Rate: 1.75 GPM at 80 psi
• Temperature Accuracy: plus or minus 3.6 degrees F
• High-Temperature Limit Stop: 120 degrees F
• Spray Settings: 5

Standard Information

• Brand: BRIZO
• Manufacturer Part Number: t60206-nklhp
