Brizo r66600 Sensori Volume Control Rough

Product Description

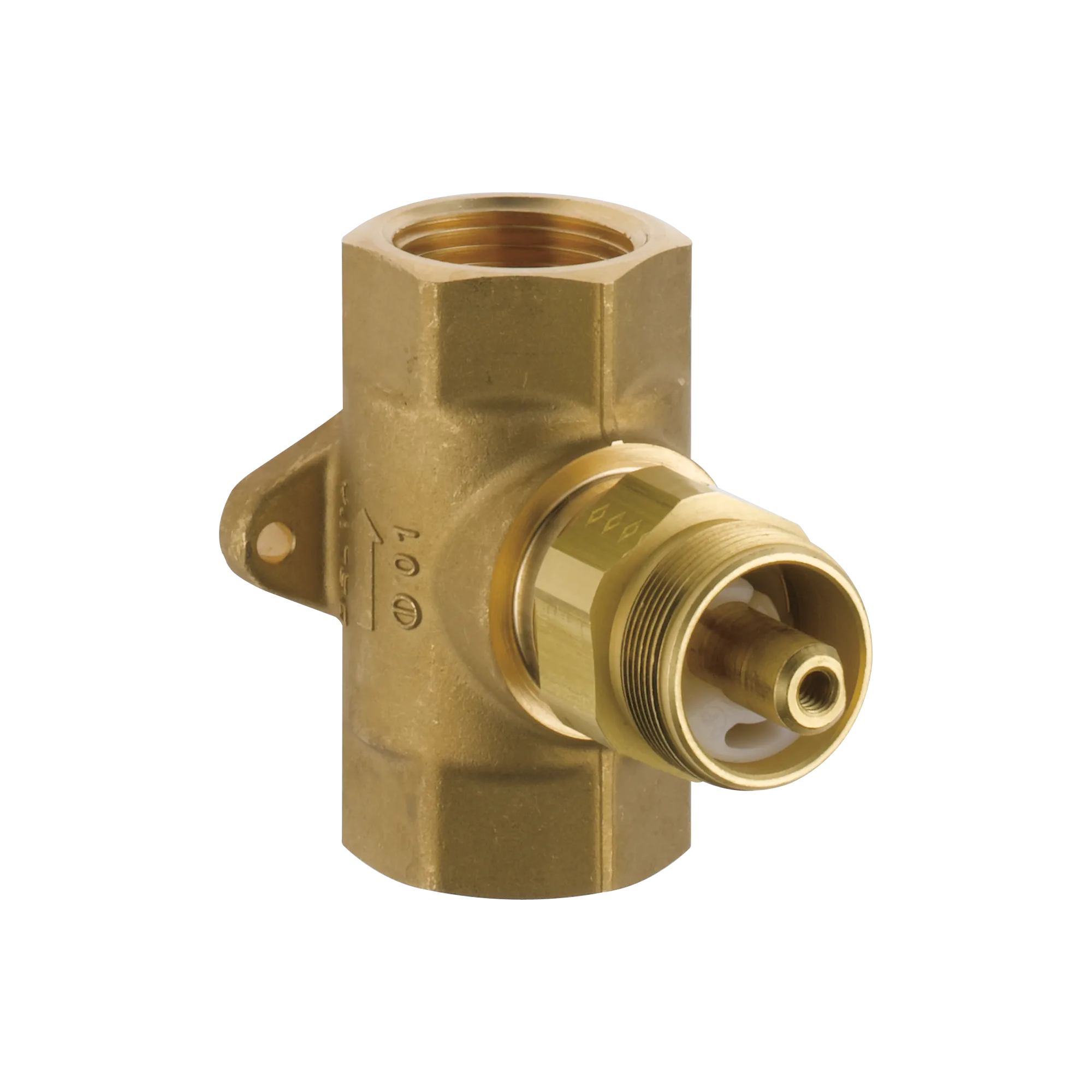

The BRIZO r66600 is a rough-in volume control valve designed for use in Sensori thermostatic shower systems. It controls water flow to individual outlets and body spray arrays, allowing each zone to be managed independently. The valve accommodates a 3/4 inch rough-in and supports a maximum flow rate of 7.7 gallons per minute at 60 psi. This component is installed during the rough-in phase of construction by a licensed plumber and remains concealed behind the wall until trim is applied.

The r66600 is used in residential shower systems where multiple outlets or body spray groupings require individual volume control. Building code and system design typically require one volume control per outlet and one per set of body sprays, up to the maximum rated flow. The optional RP74456 extension kit can extend the rough installation depth by up to 1 3/4 inches to accommodate deeper wall assemblies or thicker tile substrates.

Key Features

• 3/4 inch rough-in valve for concealed in-wall installation
• Maximum flow rate of 7.7 gallons per minute at 60 psi
• Required per outlet and per body spray grouping in multi-outlet shower systems
• Compatible with RP74456 extension kit for installations requiring up to 1 3/4 inch extension of rough depth
• Designed for use in thermostatic shower system configurations

Compatibility

Designed for use within the BRIZO Sensori thermostatic shower system. One volume control is required for every outlet and every set of body sprays, up to the maximum rated system flow. The RP74456 extension kit extends rough installation depth up to 1 3/4 inches.

Installation Notes

This valve is installed by a licensed plumber during the rough-in phase, prior to wall finish and tile work. Shut off the water supply completely before beginning installation. Follow all applicable local plumbing codes, including IPC requirements for pressure-balancing and thermostatic shower systems. Do not apply trim or pressure-test beyond the valve's rated working pressure without confirming system compatibility.

Technical Specifications

• Rough-In Size: 3/4 inch
• Maximum Flow Rate: 7.7 gallons per minute at 60 psi
• Extension Kit: RP74456 (extends rough installation up to 1 3/4 inches, sold separately)

Standard Information

• Brand: BRIZO
• Manufacturer Part Number: r66600
