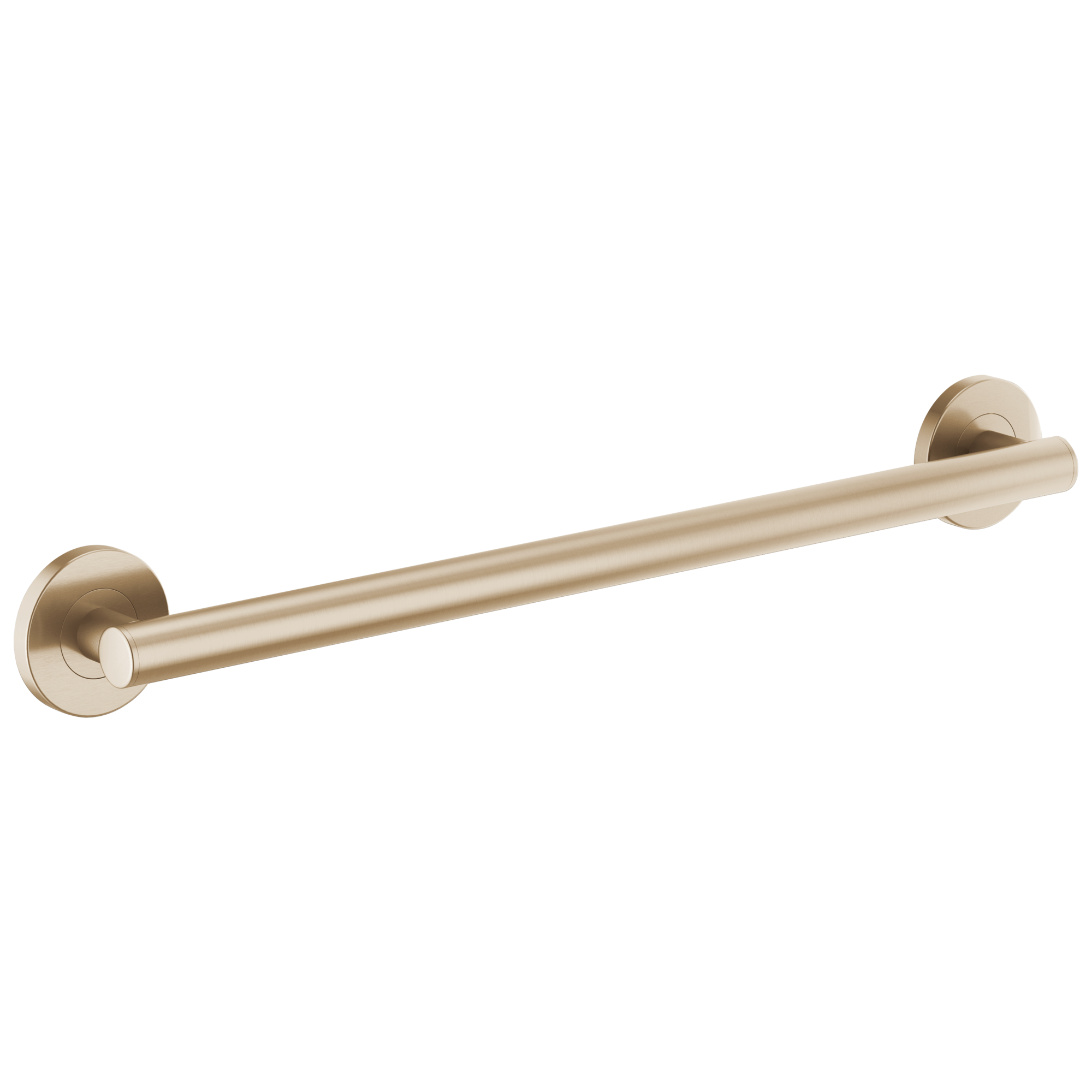

Brizo 69375-gl Linear Round Grab Bar 24 Inches

Product Description

The BRIZO 69375-gl is a 24-inch linear round grab bar designed for accessible bathroom installations. Built to support up to 500 pounds of force — twice the ADA minimum requirement — this bar provides a reliable handhold in shower, tub, and toilet areas. The 1.25-inch diameter bar pairs with 3-inch diameter flanges and concealed mounting hardware for a clean, finished appearance. Installation requires no exposed fasteners, and a retrievable wall anchor is included in the package. Licensed plumbers and finish carpenters typically handle this type of accessible fixture installation.

This grab bar suits residential and light commercial accessible bathroom builds and remodels where ADA-compliant or ADA-equivalent grab bar placement is specified. The concealed mounting system makes it well suited for tile and drywall surfaces where a clean wall finish is a priority. The included retrievable wall anchor simplifies rough-wall installations without requiring a pre-installed blocking backer in all cases.

Key Features

• Supports up to 500 pounds of force — twice the ADA requirement
• 1.25-inch bar diameter for a secure, comfortable grip
• 3-inch diameter flanges with concealed mounting for a clean finish
• Extends 2.75 inches from wall with 1.5-inch wall clearance
• Retrievable wall anchor mounting hardware included
• 24-inch length suitable for standard grab bar placement locations

Compatibility

Designed as an OEM-style replacement or new-installation grab bar for ADA-compliant and accessible residential or commercial bathroom applications requiring a 24-inch linear round bar.

Installation Notes

Installation should be performed by a licensed plumber or qualified contractor familiar with ADA grab bar placement requirements. Power off any adjacent GFCI-protected circuits before working near wet-area walls. Mounting into wall studs or blocking is strongly preferred; use the included retrievable wall anchor only where stud mounting is not possible. Follow local building codes and ADA Standards for Accessible Design for proper height and positioning.

Technical Specifications

• Bar Length: 24 inches
• Bar Diameter: 1.25 inches
• Flange Diameter: 3 inches
• Wall Projection: 2.75 inches
• Wall Clearance: 1.5 inches
• Maximum Load Capacity: 500 pounds
• Mounting Type: Concealed with retrievable wall anchor

Standard Information

• Brand: BRIZO
• Manufacturer Part Number: 69375-gl
