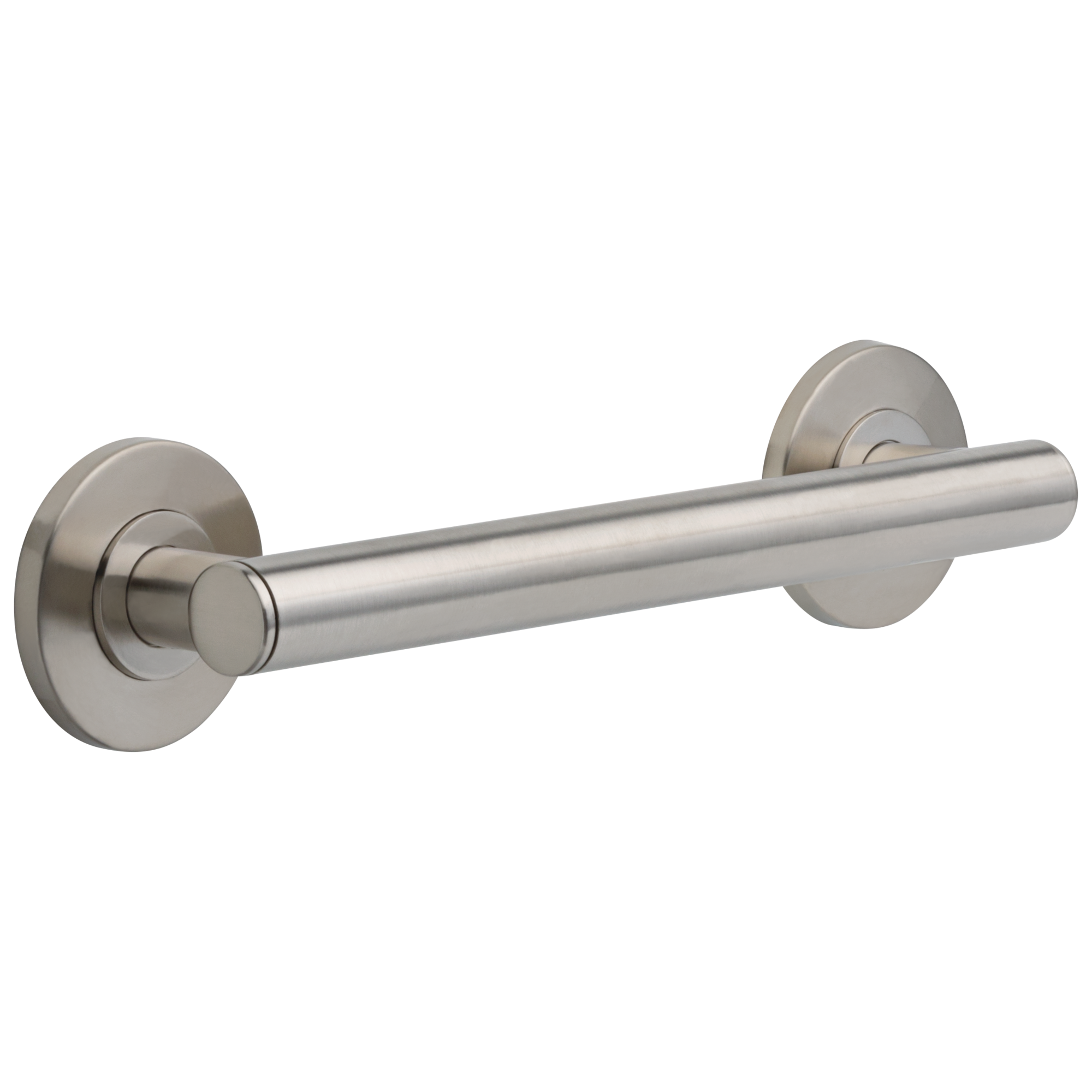

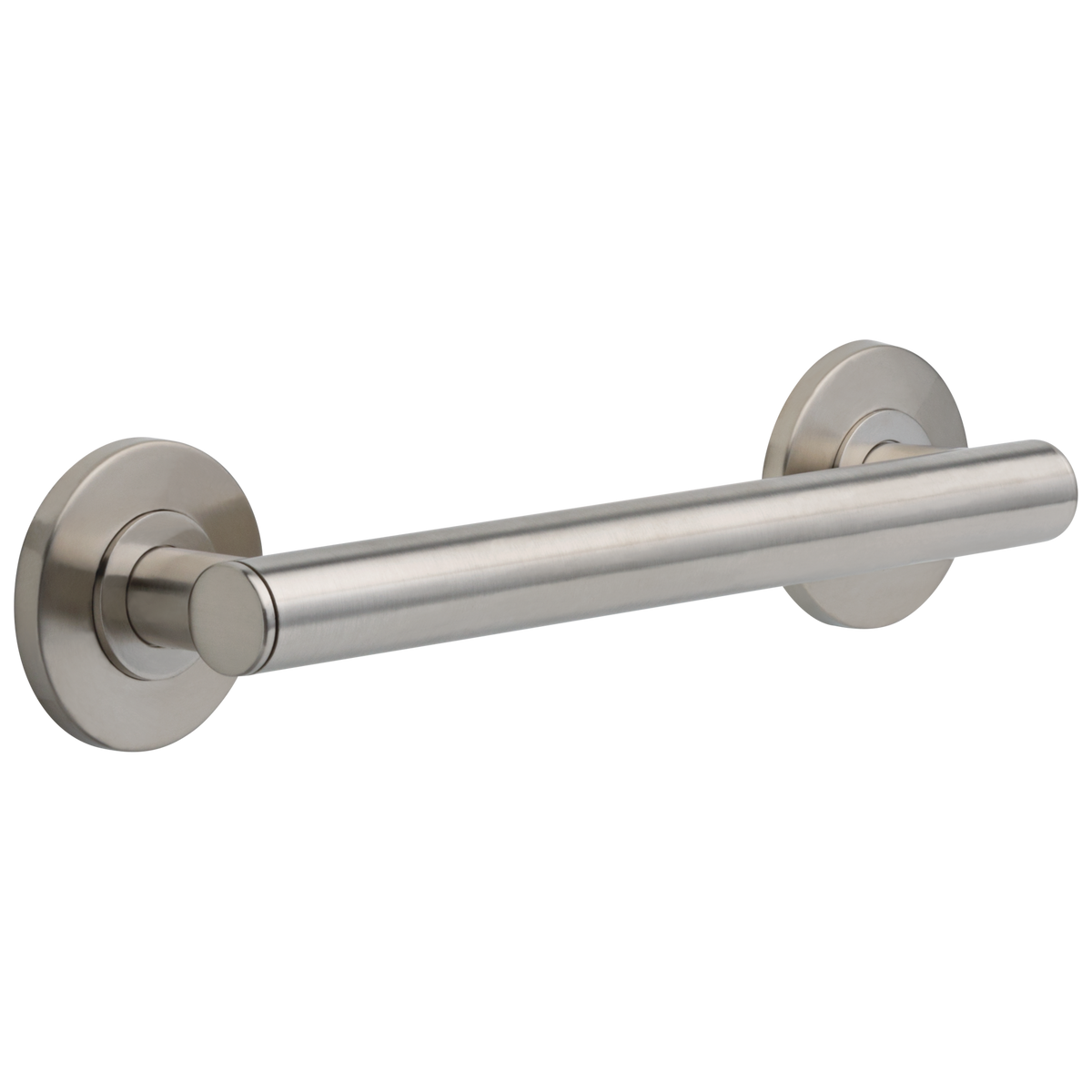

Brizo 69275-NK 12 inches Linear Round Grab Bar

Product Description

The Brizo 69275-NK 12 inches Linear Round Grab Bar is designed to support up to 500 pounds of force, exceeding the ADA requirement. This grab bar includes concealed mounting for a seamless appearance and comes with necessary hardware and a retrievable wall anchor.

• Supports up to 500 lbs of force, exceeding ADA standards
• Features a 1 1/4 inches diameter with 3 inches diameter flanges
• Extends 2 3/4 inches from the wall with 1 1/2 inches wall clearance

Product Highlights

This grab bar enhances safety in bathrooms or areas where assistance is needed.

Product Information

Standard Information

• Brand: Brizo
• MPN: 69275-NK

Technical Specifications

• Supports: Up to 500 lbs of force
• Diameter: 1 1/4 inches
• Flange Diameter: 3 inches
• Extends from wall: 2 3/4 inches
• Wall clearance: 1 1/2 inches
• Mounting: Concealed mounting
• Hardware: Mounting hardware & retrievable wall anchor included
• Height: 3-1/2 inches
• Length: 12 inches
• Shape: Straight
• Material: Metal
• Installation Type: Wall Mounted
• Product Warranty: Limited Lifetime Warranty
• Width: 15-1/2 inches
• Collection: Odin
• Country Of Origin: China
• Depth: 2-3/4 inches
• Mount Type: Concealed
• Size: 12-9/16 inches
• Mounting Holes: 12 inches (305mm)
• Projection: 2-3/4 inches (95mm)
