Product Description

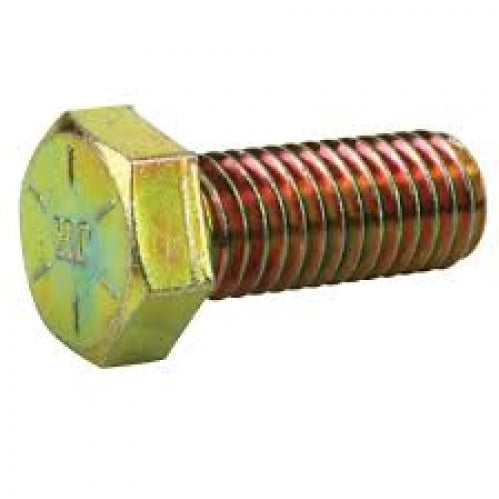

The BRIGHTON-BEST 455430 is a hex head cap screw, fully threaded, designed for machinery and construction applications. It measures 5/8-11 x 1-3/4 inches and conforms to ASME/ANSI B18.2.1 standards. Constructed from alloy steel with a zinc yellow finish, it offers a tensile strength of 150000 psi and a hardness of 33 to 39 HRC.
- Hex head cap screw
- Grade 8 alloy steel
- Zinc Yellow CR+6 coated
Product Highlights
This cap screw is suitable for demanding applications requiring high strength and corrosion resistance.
Product Information
Standard Information
-
Brand: BRIGHTON-BEST
-
Manufacturer Part Number: 455430
-
Country of Origin: US
Technical Specifications
-
Diameter (Inch): 5/8
-
Finish: Zinc Yellow CR+6
-
Head Type: Hex
-
Material: Alloy Steel
-
Material Grade: Grade 8
-
Overall Length (Inch): 1-3/4
-
Package Quantity: 25
-
Pitch: 11
-
System of Measurement: Inch
-
Thread Size: 5/8"-11
-
Thread Standard: UNC
-
Thread Style: Fully Threaded
-
Thread Type: Coarse
-
Hardness: 33 to 39 HRC
-
Head Size: 25/64 in H
-
Length Under Head: 1-3/4
-
Material Specification: ASTM B633-Fe, Zn5 Type 2
-
Measurement System: Imperial
-
Tensile Strength: 150000
-
Type: Fully Threaded
-
Application: For machinery and constructions
-
Country of Origin: US
-
Standards/Approvals: ASME/ANSI B18.2.1
-
UNSPSC: 31161501
-
Manufacturer: Brighton-Best International
-
PGroup: Hex Head Cap Screws (Bolts)
-
Package Description: 25/CS
-
MPN: 455430
-
Diameter - Thread Size: 5/8-11
