Bridgeport SGBTL383CL BRIDGEPO 1 TL SPLT GND BSH LUG # 4-14

Product Description

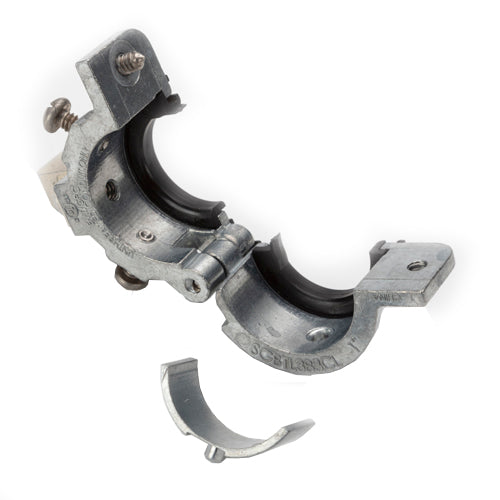

The Bridgeport SGBTL383CL is a grounding insulated threadless split bushing. This product has a trade size of one inch and accommodates wire sizes ranging from fourteen to four AWG. It is designed for versatile applications, including bonding stub-ups and use in data environments.

• Material: Die Cast Zinc
• Height: 2.734 inches
• Insulator rated at 150°C

Product Highlights

This split bushing is cULus listed and complies with UL 514B and UL 467 specifications. It is suitable for both EMT and threadless rigid conduits.

Product Information

Standard Information

• Manufacturer: Bridgeport Fittings
• MPN: SGBTL383CL

Technical Specifications

• Application: For bonding stub-ups or in data and indoor/outdoor applications
• Color: Gray
• Finish: Ball Burnished/Mirror Smooth
• Height: 2.734 inches
• Lug Type: Lay-In
• Material: Die Cast Zinc
• Maximum Wire Size: 4 AWG
• Minimum Wire Size: 14 AWG
• Series: SGBTL
• Standards/Approvals: RoHS Compliant, REACH Compliant, cULus 325B, Federal Specification No. A-A-50553, UL File No. E20412, NEMA FB-1, UL 514B, UL 467
• Trade Size: 1 inch
• Type: Grounding Insulated Threadless
