Bridgeport SGB-390CL Bushing Grounding Split 4In 6AWG

Product Description

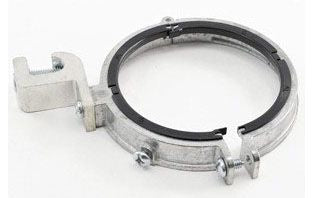

The Bridgeport SGB-390CL is a split grounding bushing designed for use in rigid and IMC conduits. This product features an insulated throat and is crafted from die-cast zinc, making it suitable for installation in various electrical systems. Ideal for applications where wires have already been pulled, the bushing allows easier installation post-wire pull.

• Rated for temperatures up to 150 degrees Celsius.
• Accepts wire sizes from six AWG to 250 kcmil.
• Patented hinged design simplifies alignment and installation.

Product Highlights

This grounding split bushing is cULus listed and features UV-stabilized insulation, making it a good choice for outdoor applications. Its design minimizes the chances of damage during wire pulls, helping to improve efficiency on the job site.

Product Information

Standard Information

• Manufacturer: Bridgeport Fittings LLC
• Brand: Bridgeport

Technical Specifications

• Catalog Number: SGB-390CL
• Diameter: 5 inches ID x 3.87 inches OD
• Material: Zinc Die Cast
• Finish: Ball Burnished
• NEMA Rating: FB-1
• Special Features: Grounding lug wire capacity #6 - 250MCM
• Country of Origin: United States
• UPC: 781747903907
