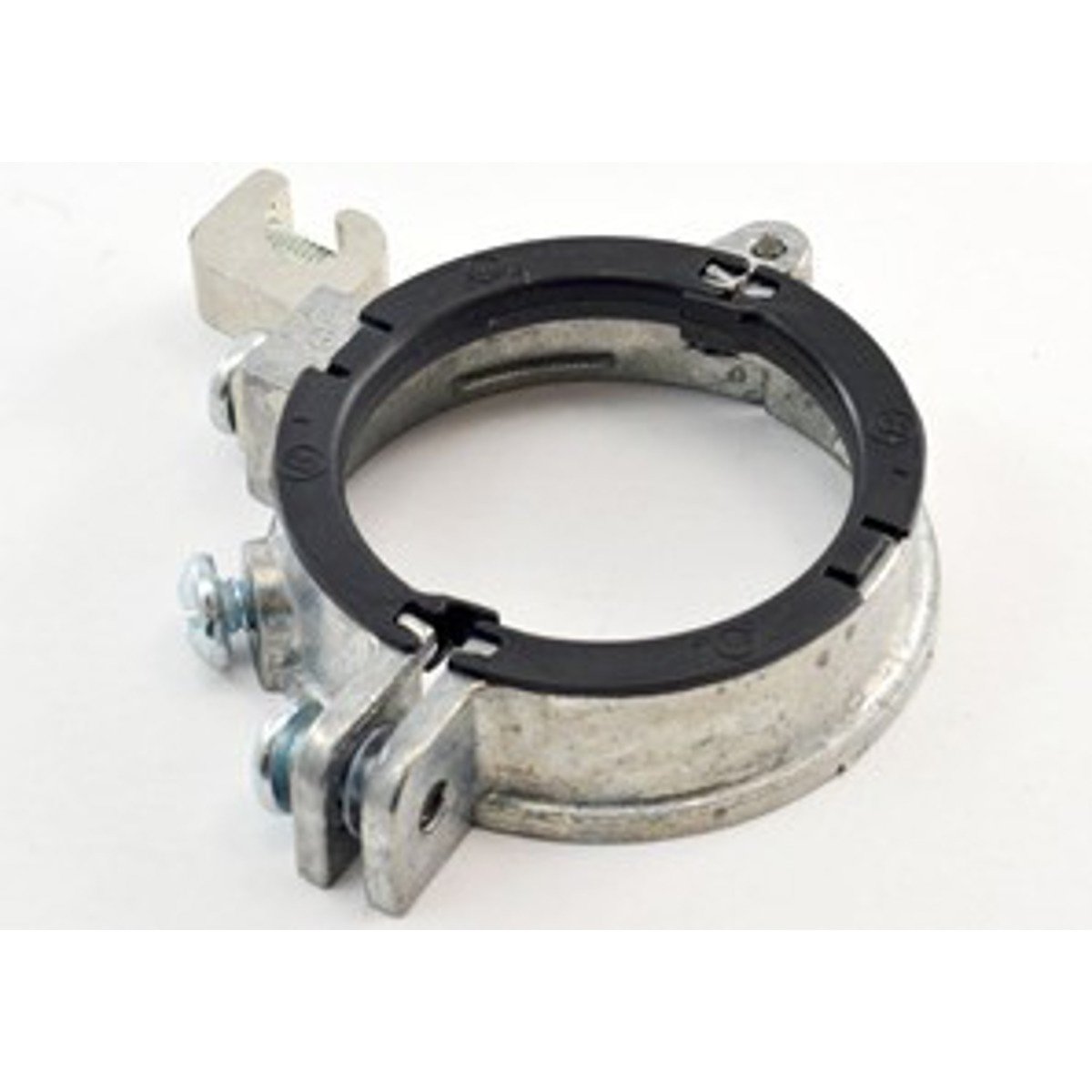

Bridgeport SGB-38614 Split Bushing, Insulated Grounding Zinc Die Cast Size 2 Inch 14-4 Lug

Product Description

The Bridgeport SGB-38614 is a split bushing designed for insulated grounding applications. This model is made from zinc die cast and is rated for a temperature of one hundred fifty degrees Celsius. It is suitable for use with wires already pulled through conduit or EMT fittings. The grounding lug is made from aluminum alloy 6061-T6, ensuring durability and reliability in outdoor applications.

• Insulated grounding bushing
• Suitable for Rigid and IMC conduit
• UV stabilized insulators

Product Highlights

This product features a patented design and includes stainless steel hardware for enhanced stability and performance.

Product Information

Standard Information

• Brand: Bridgeport
• MPN: SGB-38614

Technical Specifications

• Catalog Number: SGB-38614
• Country of Origin: China
• Application: Insulated grounding for wiring through Rigid/IMC conduit
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Temperature Rating: 150 Degrees C
• Special Features: Grounding Lug Wire Capacity #14 - #4
• Standard: cULus listed
