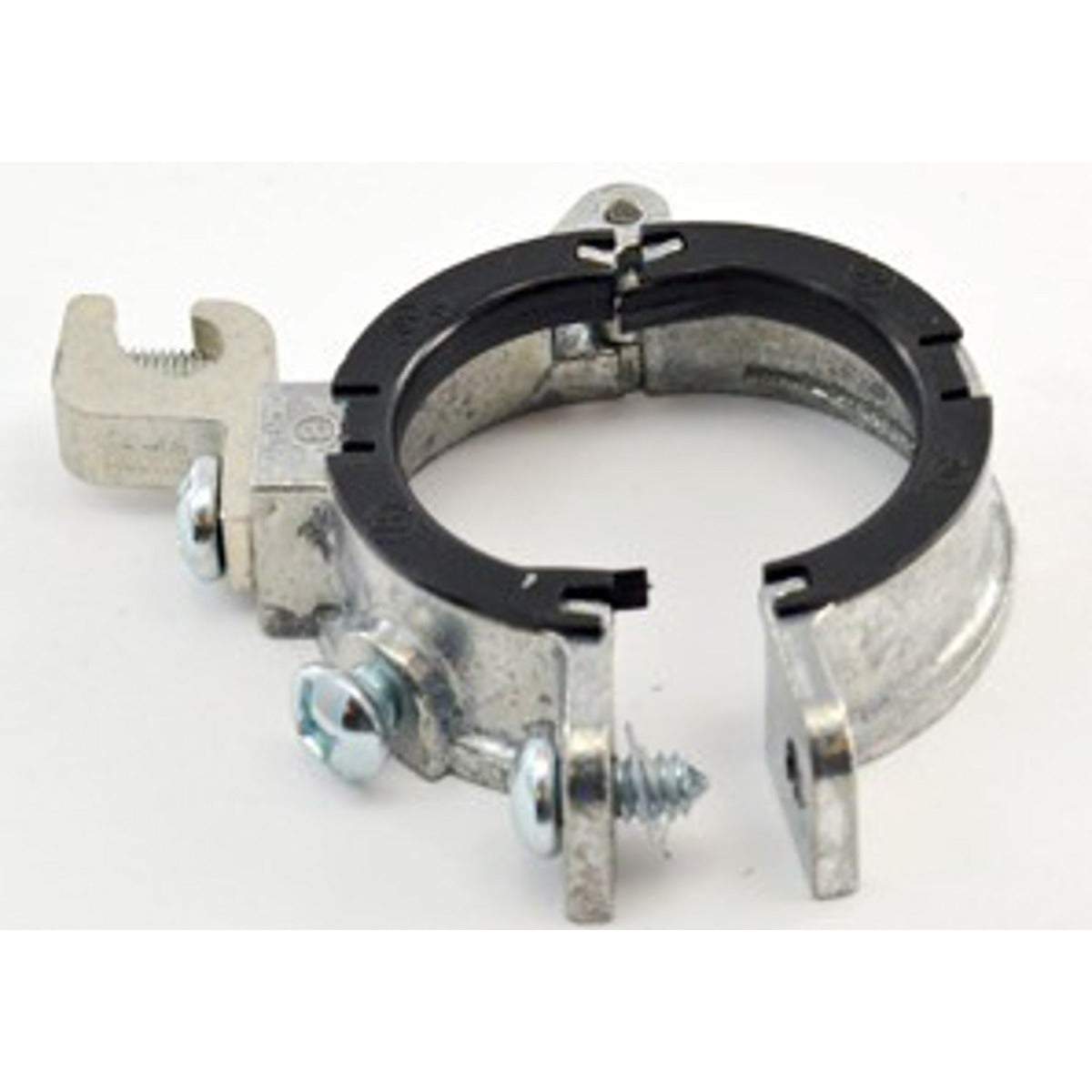

Bridgeport SGB-38514 Split Bushing Insulated Grounding Zinc Die Cast Size 1-1/2 Inch 14-4 Lug

Product Description

The Bridgeport SGB-38514 Split Bushing is ideal for situations where wires have already been pulled through conduit or EMT fittings, and an insulated grounding bushing is needed. This product features a grounding lug made from aluminum alloy that ensures high durability and reliability.

• Temperature rated to 150 degrees Celsius
• Complies with cULus standards and is patented
• Available with UV stabilized insulators for outdoor use

Product Highlights

This split bushing offers enhanced flexibility during installation and is designed for use in solar and outdoor applications, ensuring long-term performance.

Product Information

Standard Information

• Brand: Bridgeport
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Catalog Number: SGB-38514
• Country of Origin: China
• Material: Zinc Die Cast
• Finish: Ball Burnished
• Application: Used in situations where wires have already been pulled through Rigid/IMC conduit
• Temperature Rating: 150 Degrees C
• NEMA Rating: FB-1
• Special Features: Grounding Lug Wire Capacity #14 - #4
