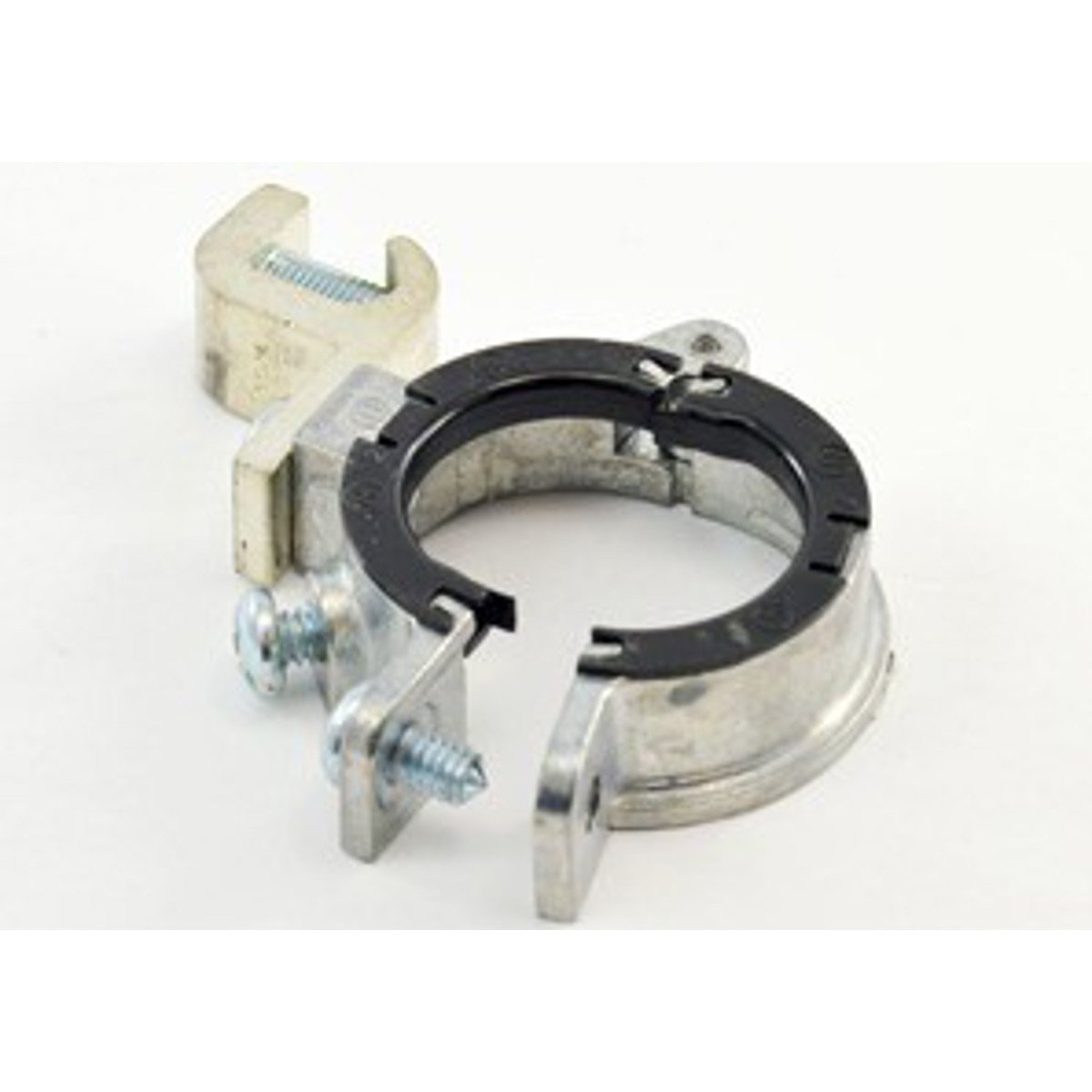

Bridgeport SGB-384CL Bushing Grounding Split 1-1/4 in 14AWG

Product Description

The Bridgeport SGB-384CL is a grounding bushing designed for use with wires already pulled through rigid conduit. This bushing is suitable for 14 AWG minimum to 4 AWG maximum wire sizes. The split design allows for easier installation, reducing the effort required during wire pulls.

• Insulated grounding bushing with a split design
• Compatible with 1-1/4 inch trade size conduits
• Rated for outdoor use with stainless steel hardware

Product Highlights

This patented bushing features a hinged design for quick application in tight spaces, aluminum alloy construction for durability, and UV stabilized insulators.

Product Information

Standard Information

• Brand: Bridgeport
• Manufacturer Part No: SGB-384CL

Technical Specifications

• Material: Zinc Die Cast
• Insulation Material: Nylon
• Temperature Rating: 150 degrees Celsius
• Diameter: 2.08 inches ID x 1.34 inches OD
• Color: Gray with Black Insulator
• Finish: Ball Burnished
• Approval: cULus listed
• Country of Origin: China
