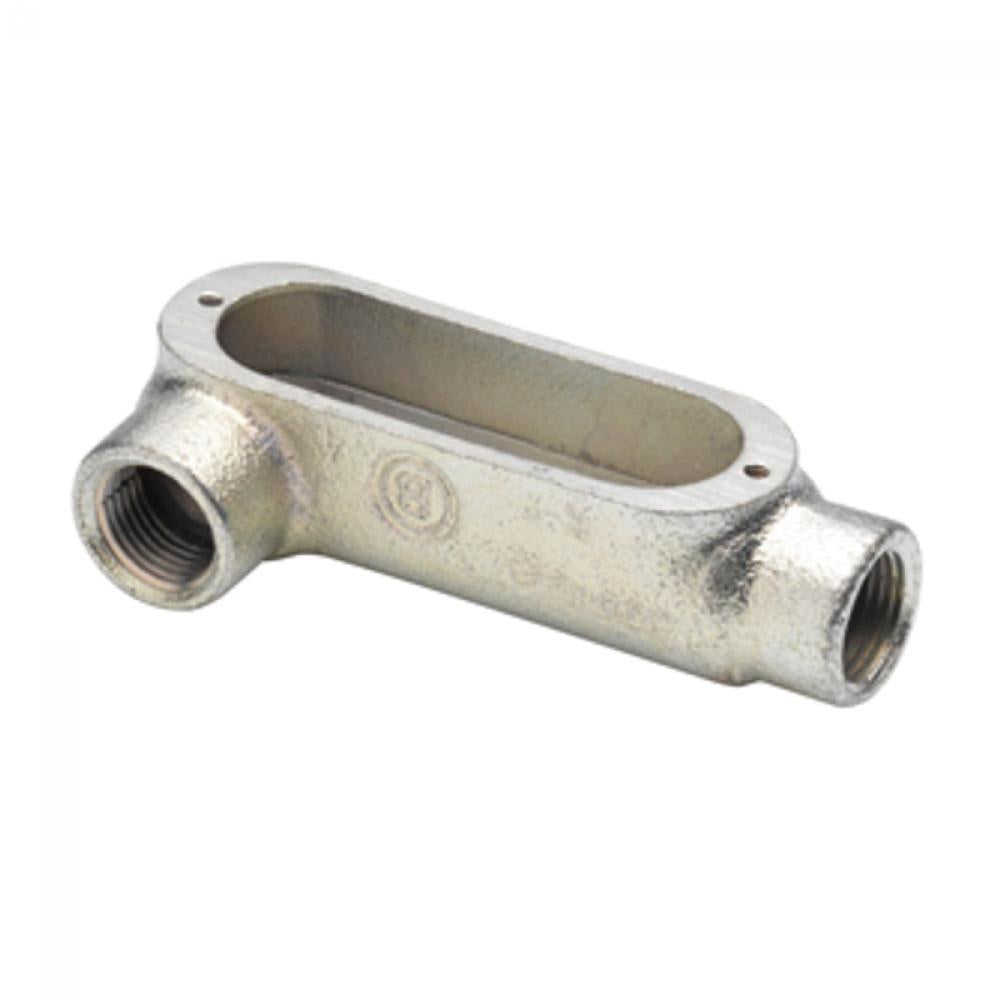

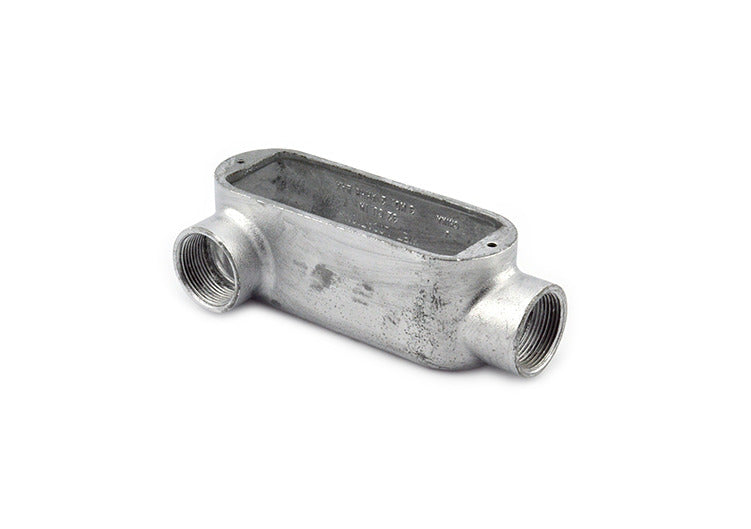

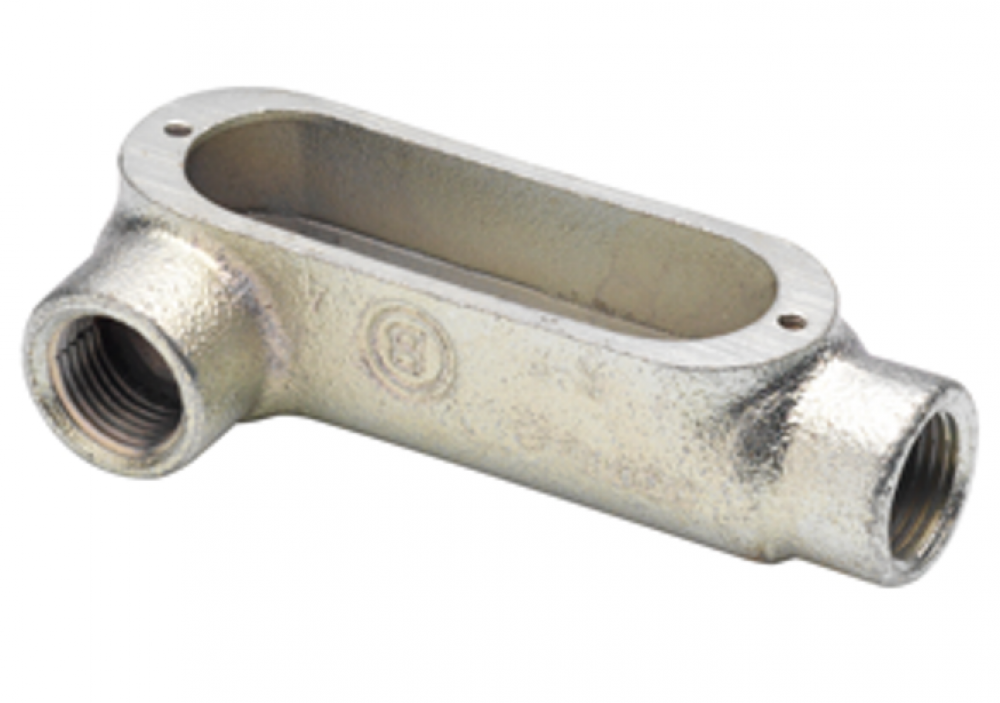

Bridgeport LR64 Lr-Type Rigid Conduit Body Malleable 1-1/4 inches

Product Description

The BRIDGEPORT LR64 is a 1-1/4" Lr-Type Rigid Conduit Body made from malleable iron. This conduit body allows access to the interior of a conduit system for inspection, pulling, and maintenance. It is designed for a 90-degree cable pull, with the cable exiting through the right side of the body. NPT threads allow rigid and intermediate metal conduit to be screwed directly into the conduit body.

• Designed for a 90 degree cable pull, with the cable exiting through the right side of the body
• Constructed from malleable iron for impact, abrasion, and corrosion resistance
• NPT threads allow rigid and intermediate metal conduit to be screwed directly into the conduit body

Product Highlights

Provides easy access to conduit systems for pulling, inspection, and maintenance. Suitable for heavy-duty industrial applications.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: LR64
• Country of Origin: USA

Technical Specifications

• Application: For Rigid/IMC conduit
• Capacity: 32.3 cu-in
• Category Name: Conduit Bodies - Type LR
• Color: Gray
• Connection Type: Threaded
• Country: USA
• Enclosure: NEMA FB-1
• Finish: Electro-Plated Zinc
• Form: 35
• Hub Size: 1-1/4 in
• Material: Malleable Iron
• Number of Hubs: 2
• Series: 5 Series
• Standard/Approvals: ARRA, Buy American Act, RoHS, REACH Compliant, Federal Specification W-C-586D, cULus 514A File No. E11077
• Type: Type LR
• Unspsc: 39131708
• Ul Standard: UL-514A
