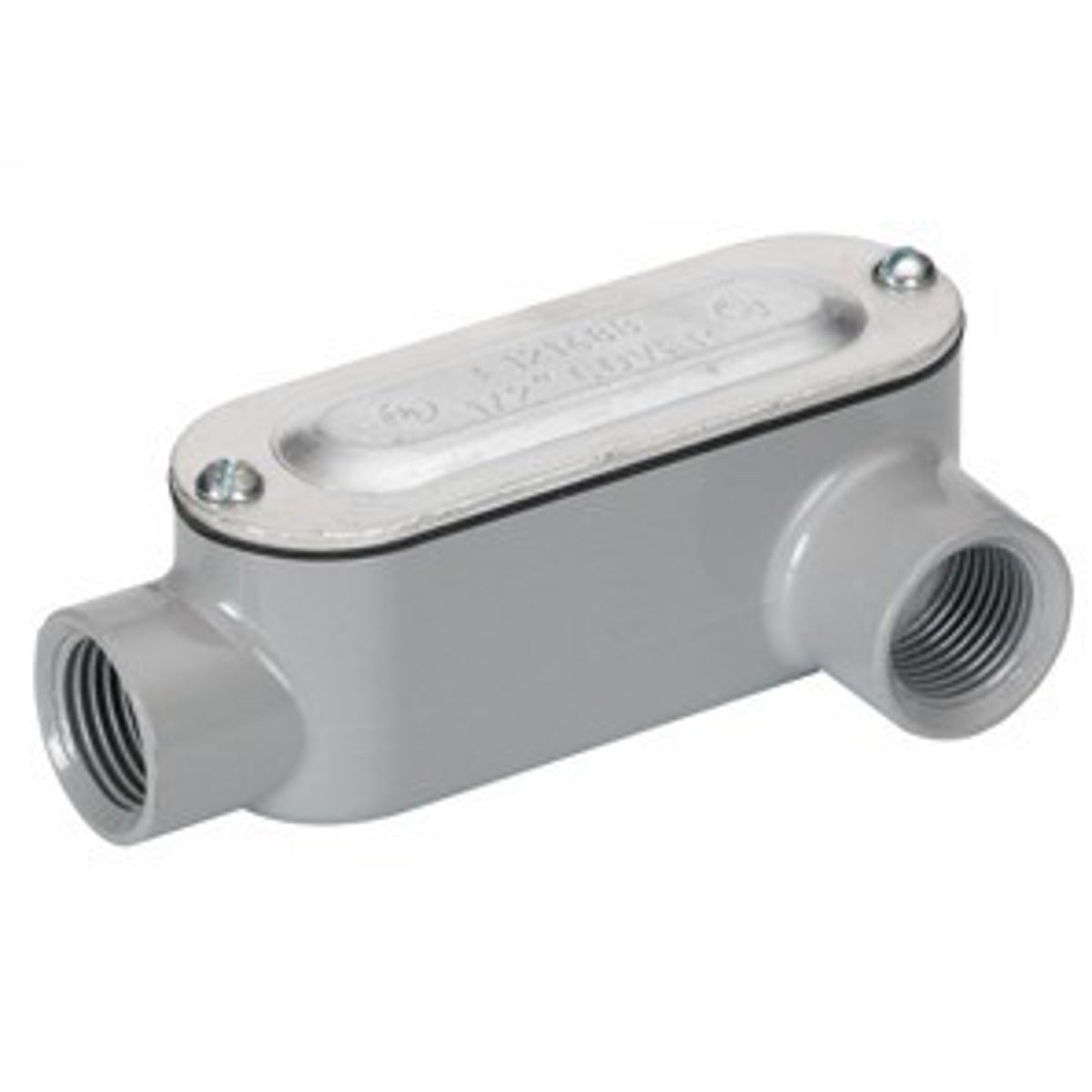

Bridgeport LL-47CG Type LL Conduit Body With Cover and Gasket 2-1/2 Inch

Product Description

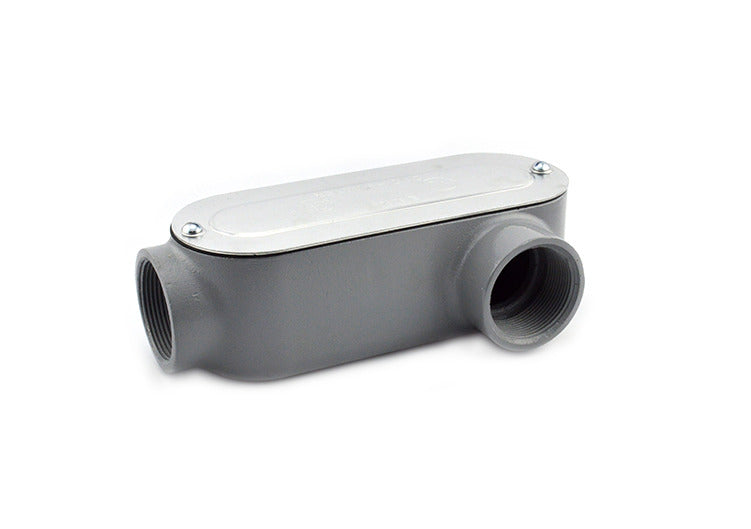

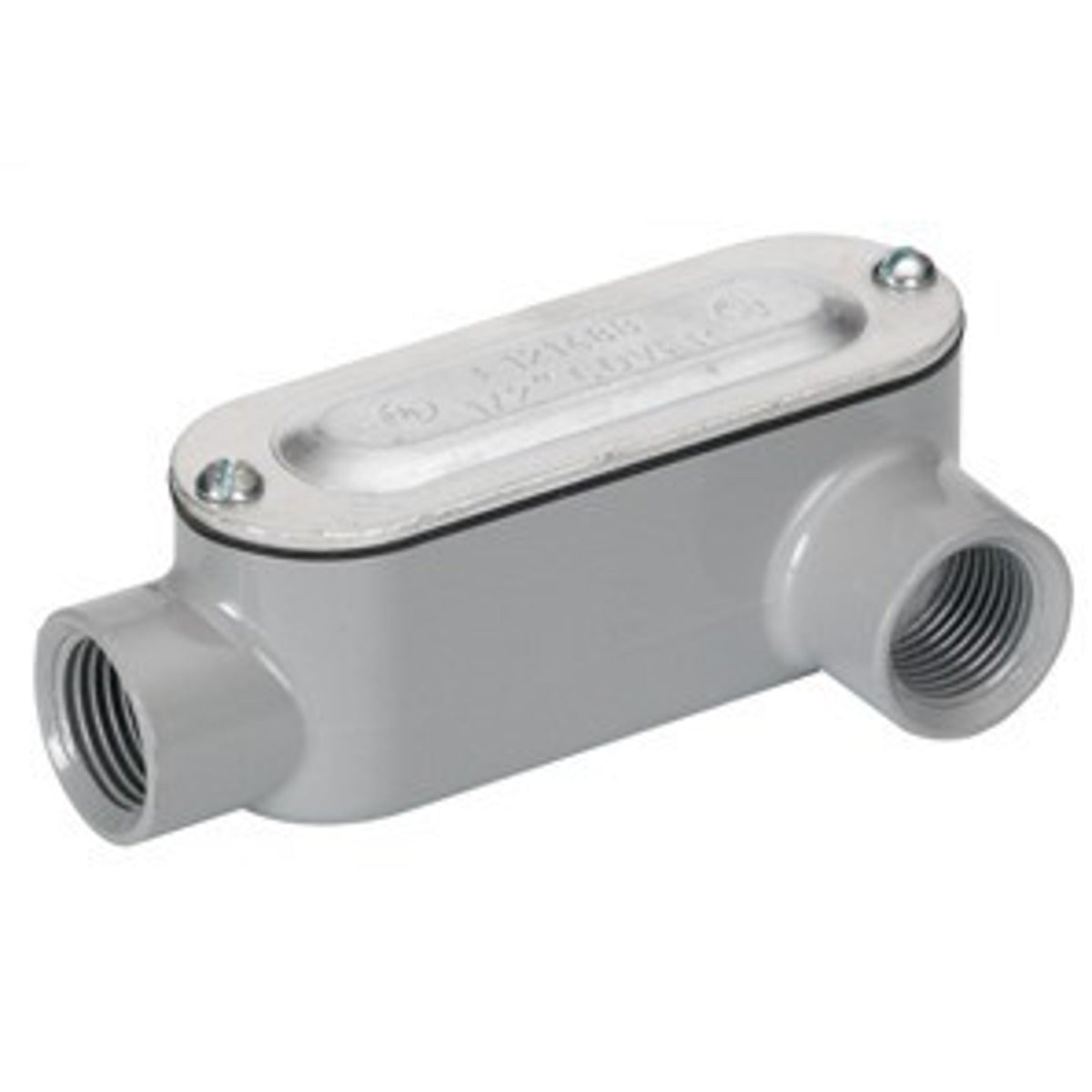

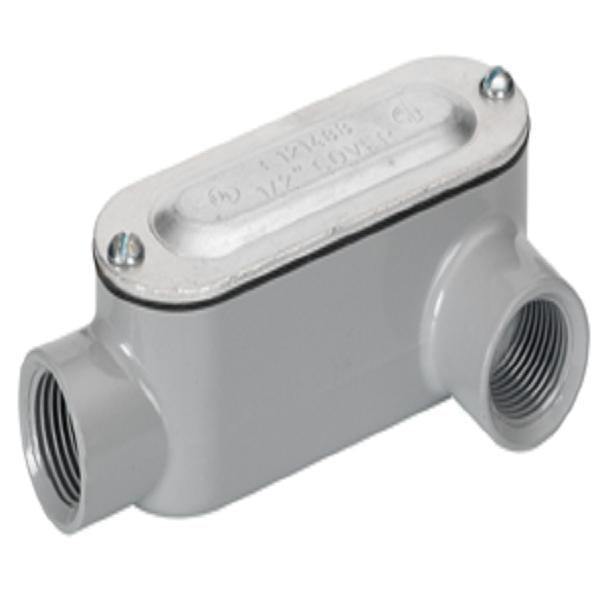

The BRIDGEPORT LL-47CG is a Type LL conduit body designed for rigid conduit or IMC, allowing access for inspection, pulling, and maintenance. Constructed from aluminum with an enamel paint finish, it includes a cover and gasket. This conduit body facilitates a 90-degree cable pull, exiting through the left side.

• Allows access for inspection, pulling, and maintenance
• Designed for a 90 degree cable pull, with the cable exiting through the left side of the body
• Aluminum construction reduces weight while providing a cost-effective solution

Product Highlights

Provides easy access to conduit interiors for maintenance. Features NPT threads for direct attachment and a gasketed cover for environmental protection.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: LL-47CG
• Country of Origin: India

Technical Specifications

• Catalog Number: LL-47CG
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: India
• Made in USA: No
• Application: Threaded bodies for rigid conduit or IMC allows access for inspection, pulling and maintenance.
• Finish: Enamel Paint
• Hub Size: 2-1/2 IN
• Material: Aluminum
• NEMA Rating: FB-1
• Standard: cULus, CSA
• UPC: 781747035479
• GTIN: 00781747035479
• Item Type: Type LL Conduit Bodies w/Cover & Gasket
• Size: 2 1/2 in
• Configuration: LL
• Hub Location: 90 Degree
• Number of Hubs: 2
• Installation: Threaded (Rigid/IMC)
• Approval: UL 514A, UL (Canada and US), CSA
• Used On: IMC/Rigid Conduit
• ROHS Compliant: True
• Applicable Standard: Federal Specification WC-586D, NEMA FB-1
• Capacity: 157.4 Cu Inch
• Includes: Cover and Gasket
• Enclosure: NEMA FB-1
• Form: 85
• Series: 5 Series
• Type: Type LL
