Bridgeport LB-49CG 3-/2 inches Threaded Bodies for Rigid Conduit or IMC 3-1/2 IN

Product Description

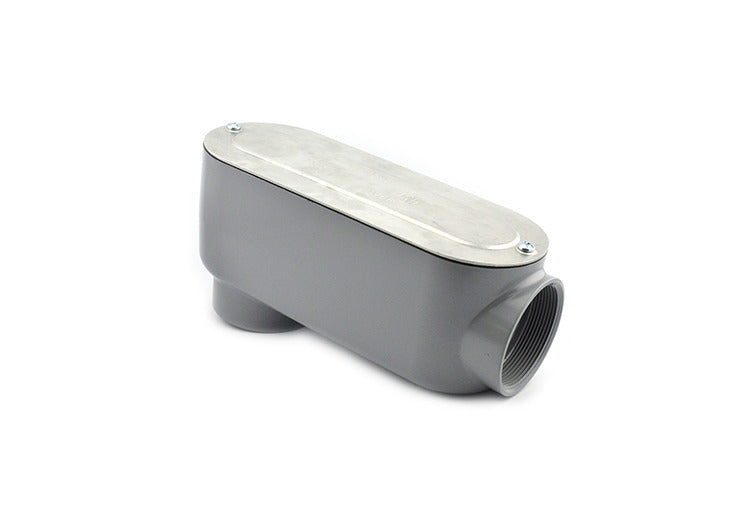

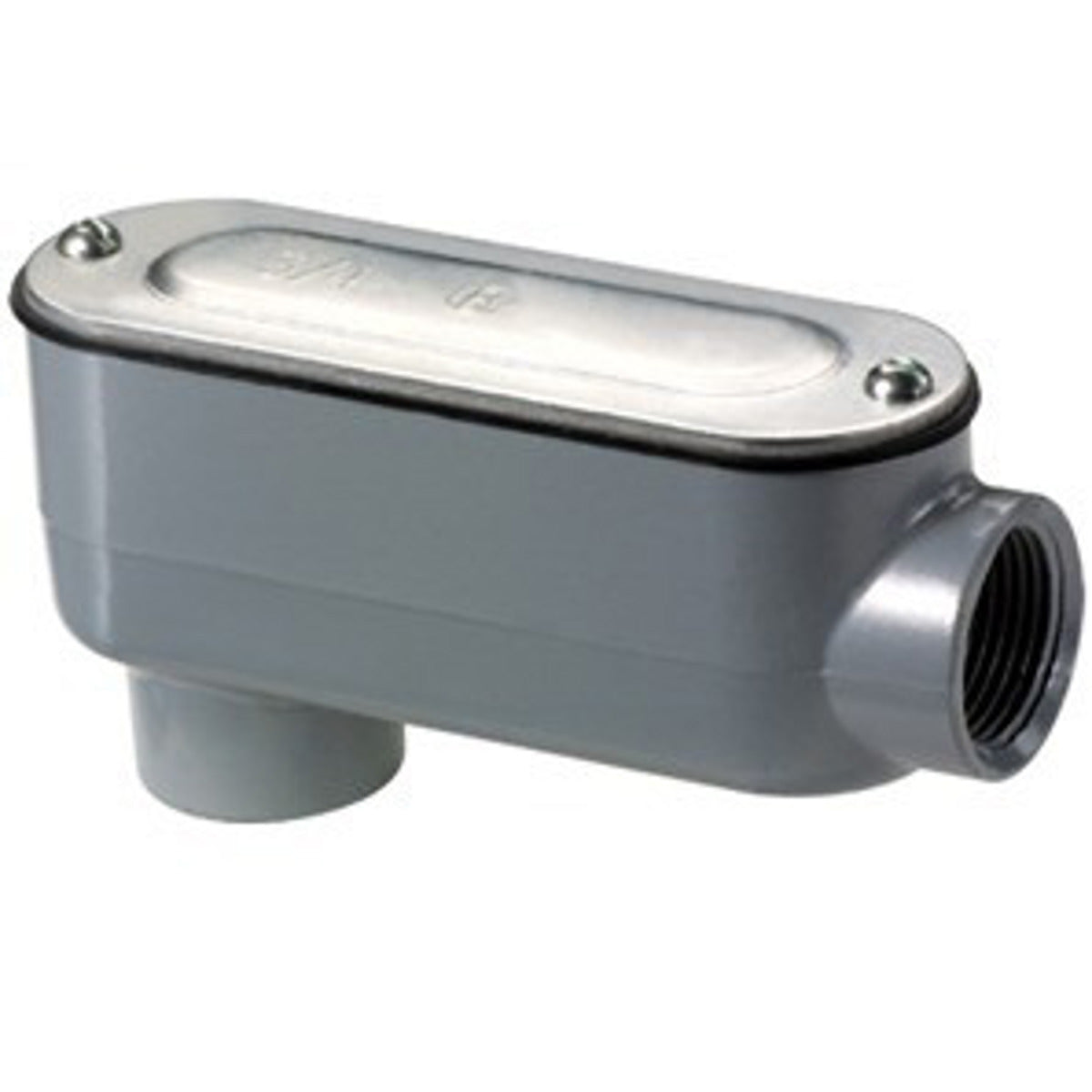

The BRIDGEPORT LB-49CG is a threaded body for rigid conduit or IMC, allowing access for inspection, pulling, and maintenance. Constructed from aluminum with an enamel paint finish, it features a 3-1/2 IN hub size and includes a cover and gasket. This Type LB set screw conduit body is suitable for a 90-degree cable pull.

• Allows access for inspection, pulling, and maintenance
• Features a 90-degree cable pull
• Includes cover and gasket

Product Highlights

Provides easy access to conduit systems for maintenance. Aluminum construction reduces weight while providing a cost-effective solution.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: LB-49CG
• Country of Origin: India

Technical Specifications

• Catalog Number: LB-49CG
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: India
• Made in USA: No
• Application: Threaded bodies for rigid conduit or IMC allows access for inspection, pulling and maintenance.
• Finish: Enamel Paint
• Hub Size: 3-1/2 Inch
• Material: Aluminum
• NEMA Rating: FB-1
• Standard: cULus, CSA
• UPC: 781747036490
• GTIN: 00781747036490
• Item Type: Type LB Set Screw
• Size: 3 1/2 in
• Configuration: LB
• Hub Location: 90 deg
• Number of Hubs: 2
• Installation: Threaded (Rigid/IMC)
• Approval: UL 514A, UL (Canada and US), CSA
• Used On: IMC/Rigid Conduit
• ROHS Compliant: True
• Applicable Standard: Federal Specification WC-586D, NEMA FB-1
• Capacity: 311.8 Cu Inch
• Ul Standard: UL-514A
• Trade Size: 3-1/2 Inch
• Type: Type LB
• Access Opening: Back
• Conduit Type: Rigid, IMC
• Form: Form 85
• Cover Type: Screw On
• Installation Type: Threaded
• Length: 15-9/16 Inch
• Series: 5 Series
• Enclosure: NEMA FB-1
