Bridgeport GRC-63 Clamp, Grounding Rod, Direct Burial, 5/8 Inch

Product Description

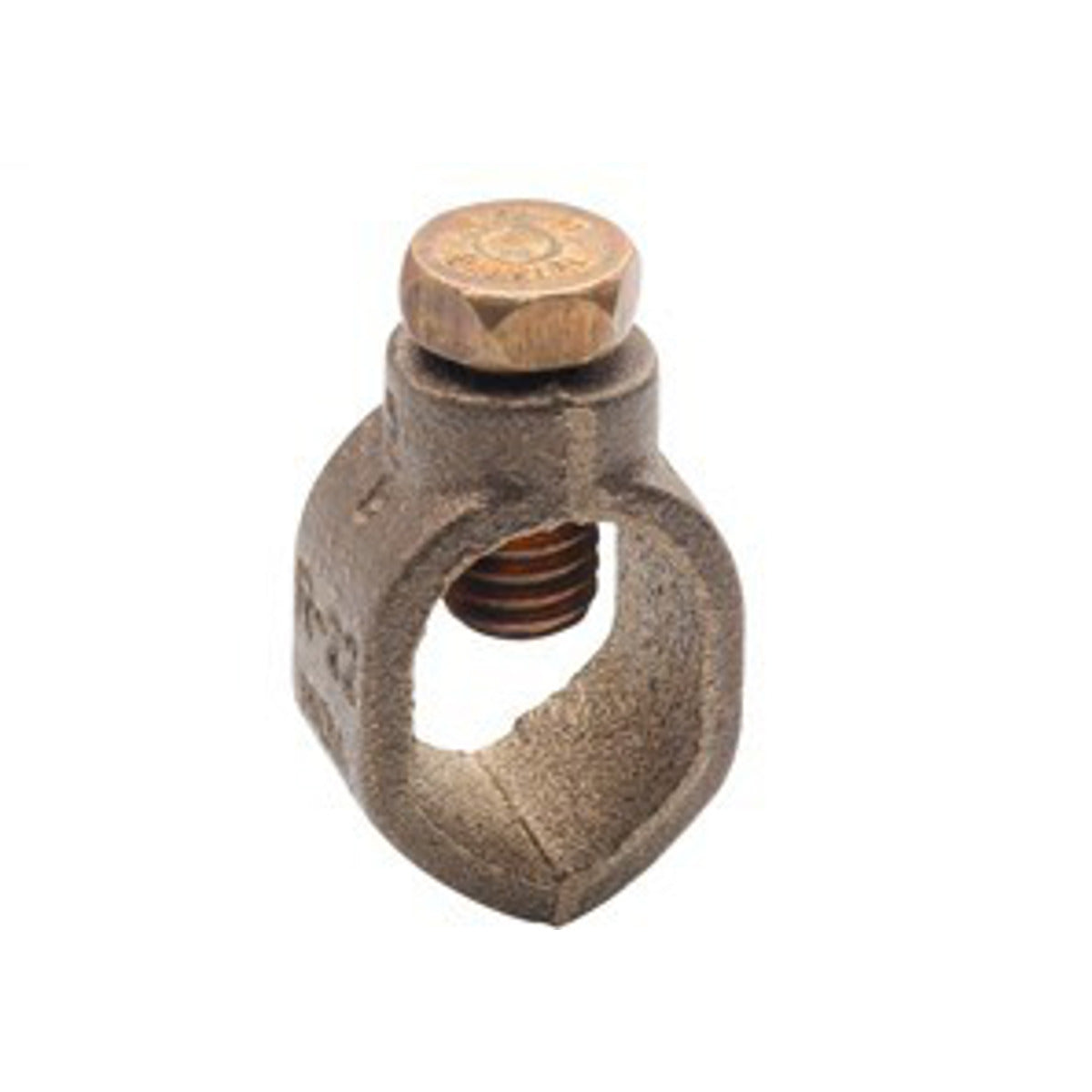

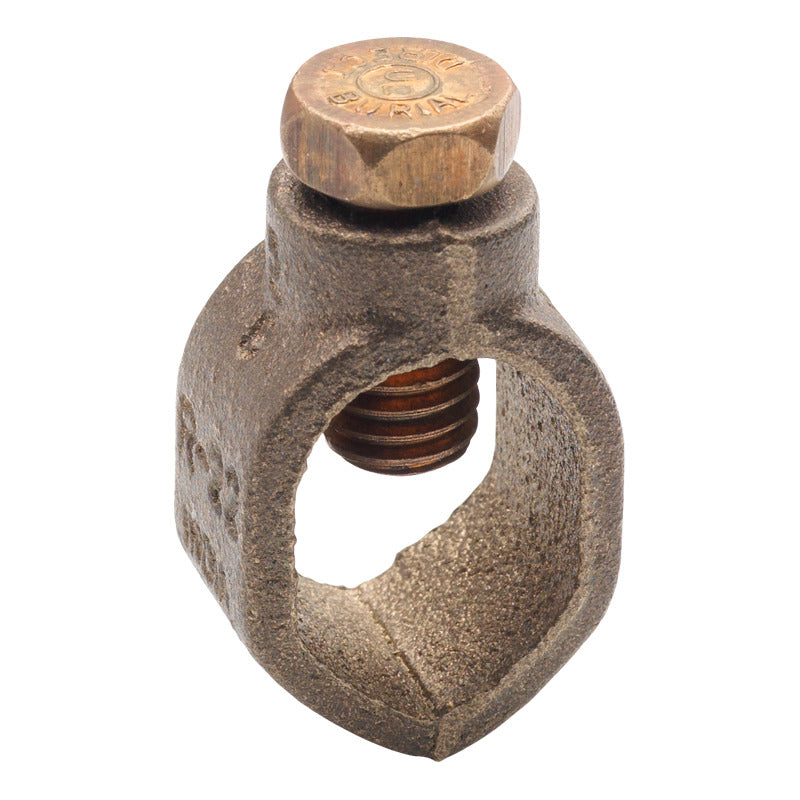

The BRIDGEPORT GRC-63 clamp is designed for terminating bare copper conductor to a ground rod. It accommodates conductor sizes from #10 solid to #2 stranded. Constructed with materials containing a minimum of 80% copper, this clamp is suitable for direct burial applications and is listed for use with 1/2' and 5/8" ground rods and size #4 rebar.

• Terminates bare copper conductor to ground rod
• Accommodates #10 solid to #2 stranded conductors
• Suitable for direct burial

Product Highlights

This grounding rod clamp ensures a secure and reliable connection for grounding applications, withstanding direct burial conditions.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: GRC-63
• Country of Origin: IND

Technical Specifications

• Catalog Number: GRC-63
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Finish: None
• Material: Brass
• NEMA Rating: FB-1
• UPC: 781747013521
• GTIN: 00781747013521
• Size: 5/8 in
• Conductor Size: 10 AWG Solid to 2 AWG Stranded
• IPS Size: 5/8 Inch
• Approval: UL 467
• Application: Used On Terminating Bare Copper Conductor to Ground Rod
• ROHS Compatible: True
• Includes: Stainless Steel Hardware
• Country Of Origin: IND
• Ul Standard: UL-467
• Conductor Material: Copper
• Type: Grounding Rod Clamps
• 12-Digit UPC: 781747013521
• MDM Pkg GTiN: 00781747013521
• Product UPC: 78174701352
• Diameter: 5/8 in
• Standards: California Proposition 65
• Allowable Gauge Range: 10 - 2
