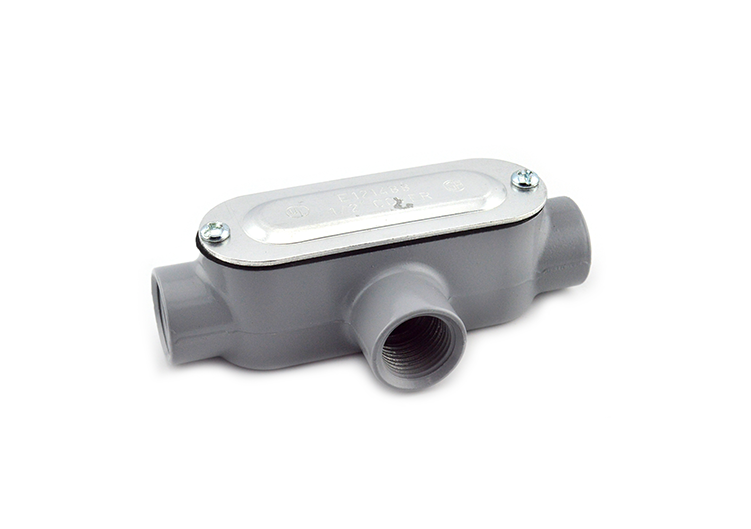

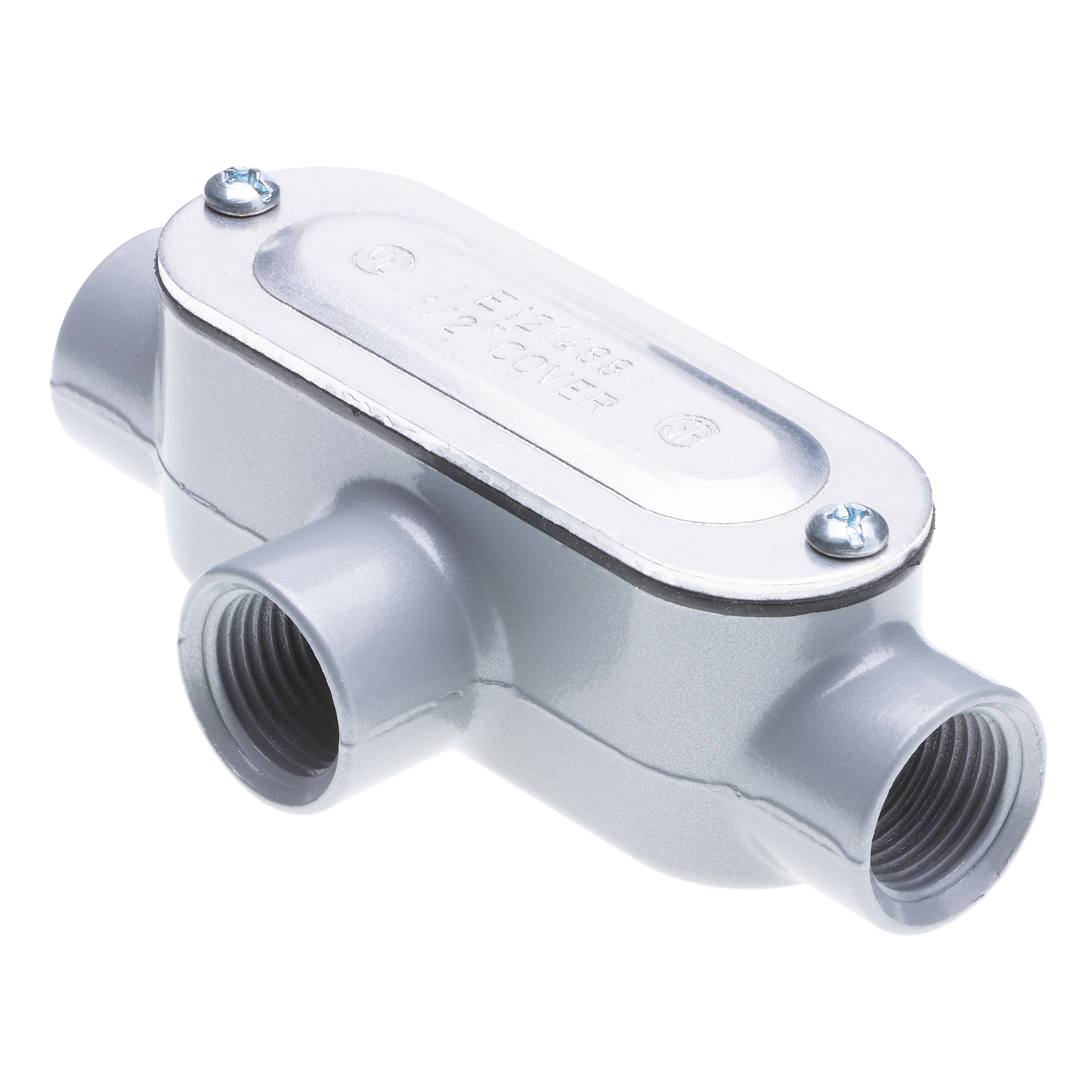

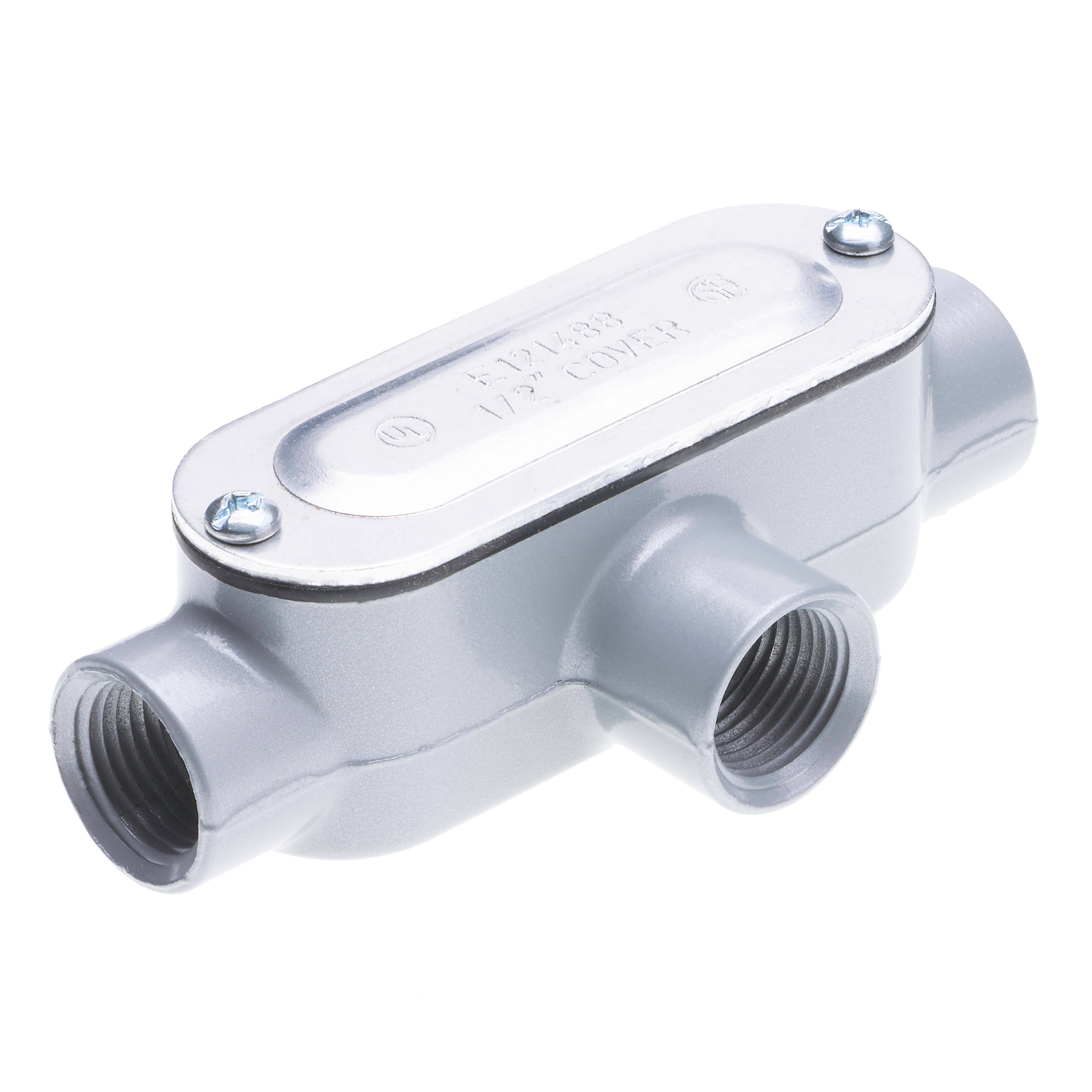

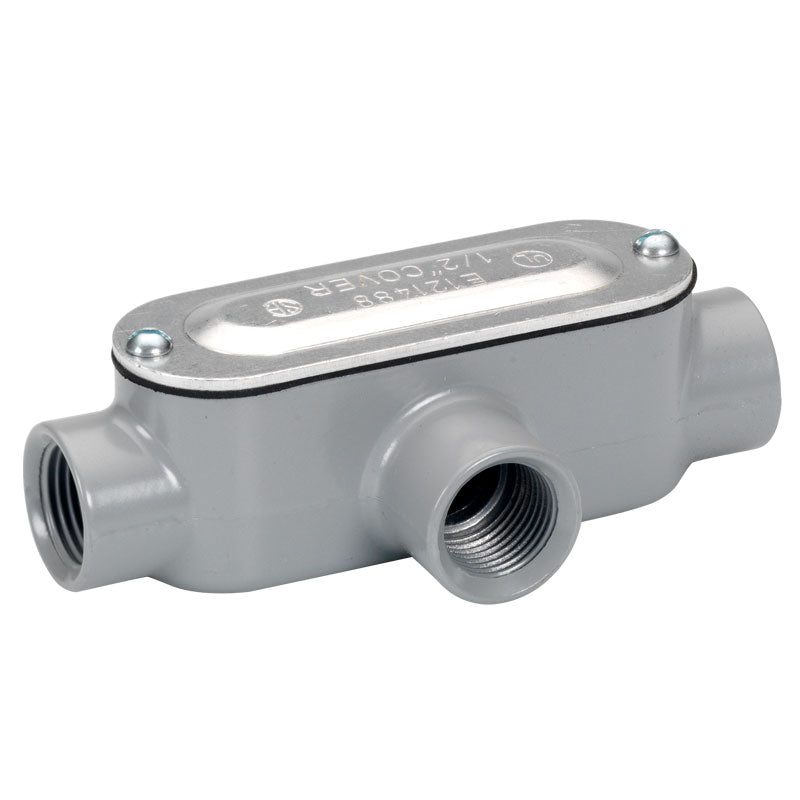

Bridgeport Fittings T-41CG aluminum type t threaded conduit body with cover and gasket 1/2 inch

Product Description

The BRIDGEPORT FITTINGS T-41CG is a 1/2 inch aluminum Type T threaded conduit body designed for rigid and IMC conduit systems. It provides access to the interior of a conduit for inspection, pulling, and maintenance. This conduit body features a Type T configuration, allowing for 90-degree cable pulls with outlets on both sides. It includes a cover and gasket for protection against dust, water, and oils.

• Designed for rigid and IMC conduits, facilitating 90-degree cable pulls.
• Includes a cover and gasket for protection against dust, water, and most liquids and oils.
• Constructed from durable enamel painted aluminum, offering a lightweight and cost-effective solution.

Product Highlights

Aluminum Type T conduit body with cover and gasket for rigid/IMC systems, 1/2 inch hub.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: T-41CG
• Country of Origin: India

Technical Specifications

• ECCN: EAR99
• Country of Origin: India
• UNSPSC: 39131708
• Series: Series 5
• Included Components: Cover and Gasket
• Hub Size: 1/2 Inch
• Access Opening: Tee Side
• Certifications: UL 514A E11077, cULus Listed, CSA 702847 Certified, RoHS Compliant, NEMA FB-1
• Configuration Type: Type T
• Hub Location: Tee Side
• Installation Type: Threaded (Rigid/IMC)
• Material: Enamel Painted Aluminum
• Number of Hubs: 3
• Conduit Type Compatibility: IMC/Rigid Conduit
• RoHS Compliance: Compliant
• Form: Form 85
• Capacity: 4.25 cu-Inch
• Cover Type: Screw On
• Finish: Enamel Paint
