Bridgeport Fittings SGN-64 Conduit Body Gasket Neoprene

Product Description

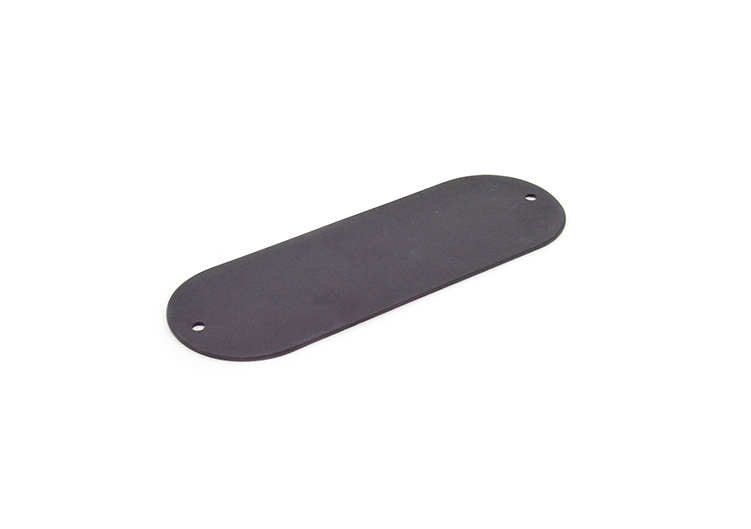

The BRIDGEPORT FITTINGS SGN-64 is a neoprene conduit body gasket rated for trade sizes 1-1/4 inches to 1-1/2 inches. It creates a dust-tight and rain-tight seal between a conduit body and its cover. Molded from 60 durometer neoprene, the gasket delivers a firm but flexible compression fit that resists impact and abrasion. The material holds up in both hot and cold environments and is impervious to most common liquids and oils. Electricians and electrical contractors use this gasket wherever a protected, weatherproof conduit body installation is required.

This gasket is suited for use in commercial and residential electrical installations where conduit bodies are exposed to moisture, dust, or outdoor conditions. It seats between the conduit body hub and its cover plate to complete a rain-tight enclosure. The SGN-64 covers trade sizes 1-1/4 inches and 1-1/2 inches. Bridgeport Fittings also offers neoprene conduit body gaskets in trade sizes from 1/2 inch through 4 inches for other applications.

Key Features

• 60 durometer neoprene construction for durable, flexible compression sealing
• Creates a dust-tight and rain-tight seal between conduit body and cover
• Resistant to impact, abrasion, and most common liquids and oils
• Performs reliably across hot and cold temperature environments
• Fits trade sizes 1-1/4 inches and 1-1/2 inches

Compatibility

Designed as an OEM-style replacement gasket for neoprene-sealed conduit body covers in 1-1/4 inch and 1-1/2 inch trade sizes. Part of a product line available from 1/2 inch through 4 inch trade sizes.

Installation Notes

Installation is performed by a licensed electrician. Power down the circuit and verify it is de-energized before servicing any conduit body assembly. Place the gasket between the conduit body and its cover, then secure the cover fasteners evenly to achieve a uniform compression seal. Follow applicable NEC requirements for the installation environment and enclosure rating.

Technical Specifications

• Material: Neoprene
• Durometer: 60
• Trade Size: 1-1/4 inches to 1-1/2 inches
• Seal Rating: Dust-tight and rain-tight

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: SGN-64
