Bridgeport Fittings SGBS-381CL Split Bushing Insulated Grounding Zinc Plated Steel 1/2 in

Brand: BRIDGEPORT FITTINGS
SKU: SGBS-381CL
Availability: Out Of Stock
$3,684.35
$3,684.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

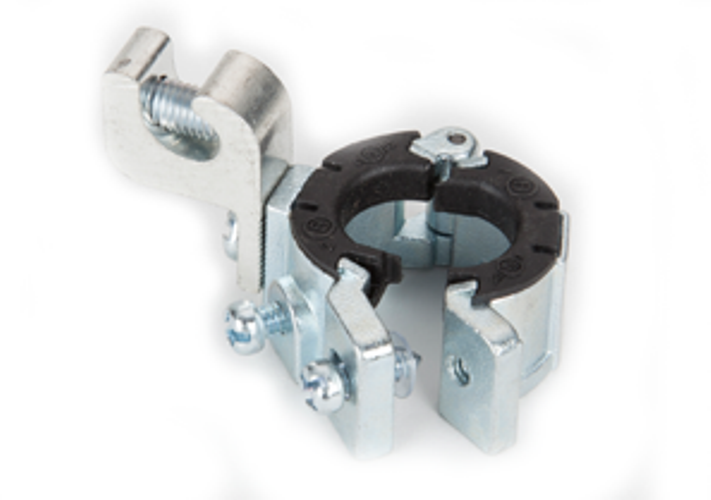

The BRIDGEPORT FITTINGS SGBS-381CL is a grounding-bonding split bushing designed for use with 1/2 inch rigid/IMC conduit or EMT. It features an adjustable grounding lug made from 6061-T6 Aluminum Alloy and an insulated throat rated for 150°C. Constructed from durable zinc-plated steel, this bushing accommodates wire sizes ranging from 14 AWG Solid to 4 AWG Stranded, ensuring electrical safety and wire protection.

  • Split Bushing design allows installation before or after wire pull.
  • Insulated throat rated for 150°C protects wire from damage.
  • Adjustable grounding lug accommodates 14 AWG to 4 AWG wire sizes.

Product Highlights

Durable zinc-plated steel construction with an adjustable aluminum alloy grounding lug for flexible installation.

Product Information

Standard Information

  • Brand: BRIDGEPORT FITTINGS
  • Manufacturer Part Number: SGBS-381CL
  • Country of Origin: China
Technical Specifications
Country of Origin
China
Type
Split Grounding Bushing, Low Profile Insulated
Insulation
Insulated
Material
Zinc-plated Steel
Trade Size
1/2 inch
Application
For rigid/IMC conduit or EMT fitting
Finish
Zinc Plated/Tin Electro Plated
Overall Height
21/32 in
Lug Type
6061-T6 Aluminum Alloy
Maximum Wire Size
4 AWG Stranded
Minimum Wire Size
14 AWG Solid
Standards
cULus Listed, UL 514B, E20412, REACH Compliant, RoHS Compliant, LEED, NEMA
Width
0.687 in
Series
Mighty-Rite(R)
Thread Size
1/2"-14
Thread Type
NPSM
Overall Length
21/32 in
Inside Diameter
0.61 in
Outside Diameter
1.14 in
Insulation Material
Nylon
Color
Grey with Black Insulator
Throat Temperature Rating
150°C
