Bridgeport Fittings LR-66 Lr Rigid Cond. Body Mall 2 inch 06266

Product Description

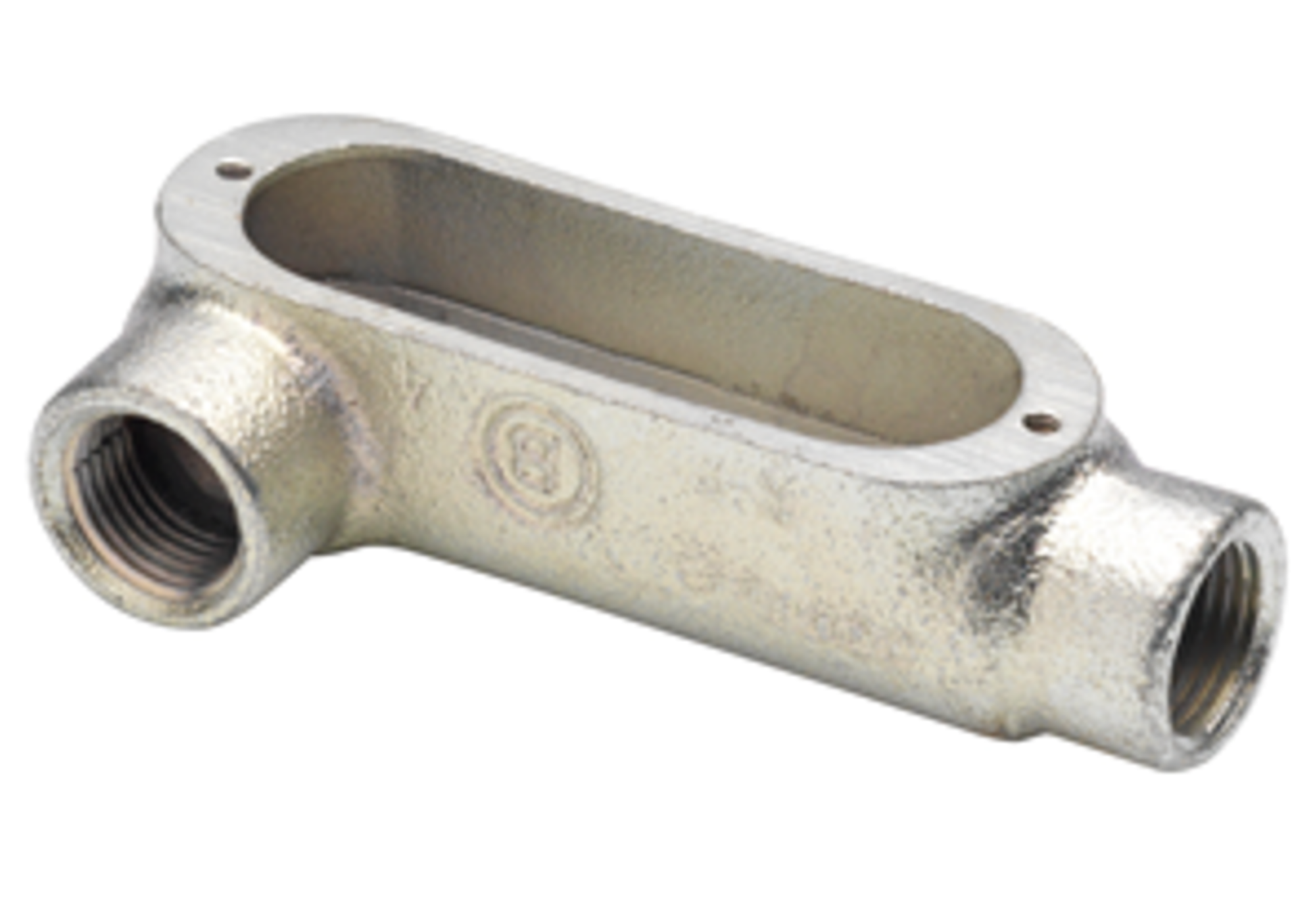

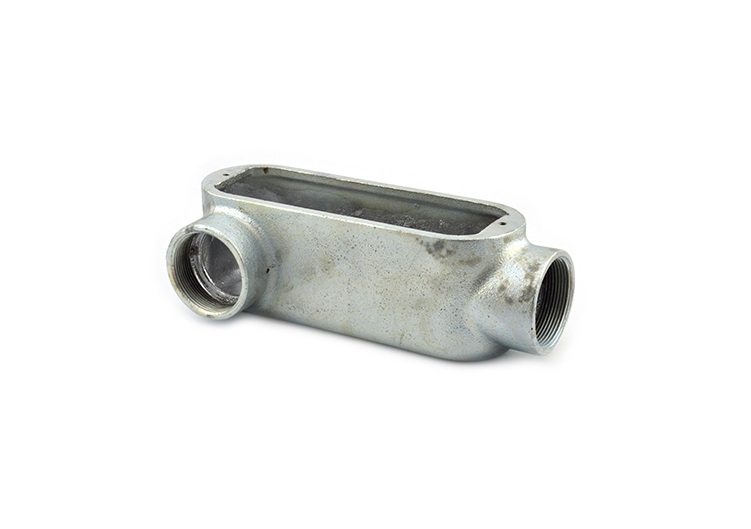

Bridgeport Fittings LR-66 is a 2-inch LR rigid conduit body, also known by alternate part number 06266. This malleable iron conduit body provides access to the interior of a conduit system for inspection, pulling, and maintenance. Designed for a 90-degree cable pull, the cable exits through the right side of the body, making it suitable for specific industrial applications. It features NPT threaded hubs for secure installation with rigid and intermediate metal conduit.

• Designed for 90-degree cable pulls with right-side exit.
• Constructed from heavy-duty malleable iron for impact, abrasion, and corrosion resistance.
• Features NPT threaded hubs for secure installation with rigid and intermediate metal conduit.

Product Highlights

Provides easy access for conduit system inspection, pulling, and maintenance.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: LR-66
• Country of Origin: United States

Technical Specifications

• Manufacturer: Bridgeport Fittings
• MPN: LR-66
• Model Number: LR-66
• Package Quantity: 1
• Finish: Zinc Plated
• UL Standard: UL-514A
• Material: Malleable Iron
• Country of Origin: United States
• Type: Rigid Conduit Body
• Installation Type: Threaded Rigid Installation
• Compatible Conduit Type: IMC/Rigid Conduit
• Hub Size: 2 inch
• Configuration: LR
• Hub Location: 90 Degree
• Access Opening: 90 Degree, Right Side
• RoHS Compliant: Yes
• Applicable Standard: Federal Specification WC-586D, NEMA FB-1
• Capacity: 73 cu inch
