Bridgeport Fittings LR-61CG Type Lr Conduit Body 1/2 Inch

Product Description

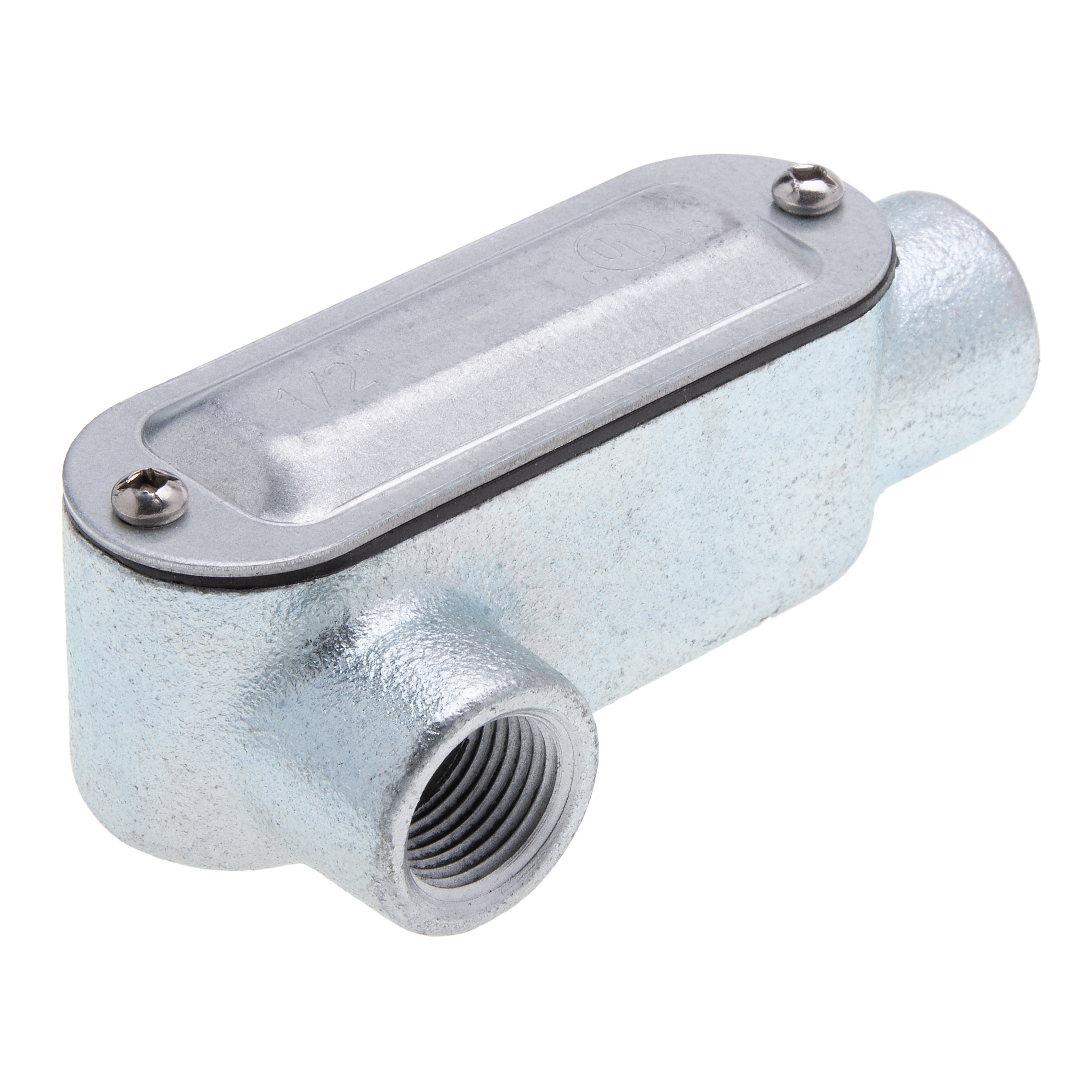

The BRIDGEPORT FITTINGS LR-61CG is a Type LR rigid conduit body constructed from malleable iron and fitted with a cover and neoprene gasket. Sized for 1/2 inch trade size conduit, it provides access to the interior of a conduit run for wire pulling, inspection, and maintenance. The Type LR configuration routes the cable in a 90-degree turn, with the cable exiting through the right side of the body. NPT-threaded hubs on the top and bottom accept rigid metal conduit or intermediate metal conduit directly. The neoprene gasket seals the cover against dust and water intrusion, making this body suitable for protected and semi-exposed locations.

This conduit body is used in commercial and industrial electrical installations wherever a right-angle pull point is required in a rigid or IMC conduit system. Licensed electricians install this fitting in both indoor and outdoor applications where conduit systems must remain accessible for future wire pulls or circuit changes. The cover-and-gasket construction suits locations subject to moisture, dust, or moderate environmental exposure.

Key Features

• Type LR configuration provides a 90-degree cable pull with right-side exit
• Malleable iron construction for durability in commercial and industrial conduit systems
• NPT-threaded hubs accept 1/2 inch rigid metal conduit or IMC directly
• Neoprene gasket seals cover against dust and water intrusion
• UL-Listed under File No. E11077
• Rated NEMA Type 2, 3, 3R, and 4

Compatibility

Designed for use with 1/2 inch trade size rigid metal conduit and intermediate metal conduit with standard NPT threads. Available in the same product series in trade sizes 1/2 inch through 4 inches.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit completely before opening or working within any conduit body. Thread conduit fully into the NPT hubs and ensure the cover gasket seats evenly before fastening the cover to maintain the NEMA enclosure rating. Do not overtighten the cover hardware in a way that deforms the gasket or compromises the seal.

Technical Specifications

• Trade Size: 1/2 inch
• Material: Malleable Iron
• Configuration: Type LR (90-degree right-side exit)
• Hub Thread Type: NPT
• Gasket Material: Neoprene
• UL Listing: File No. E11077
• NEMA Rating: Type 2, 3, 3R, and 4

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: LR-61CG
