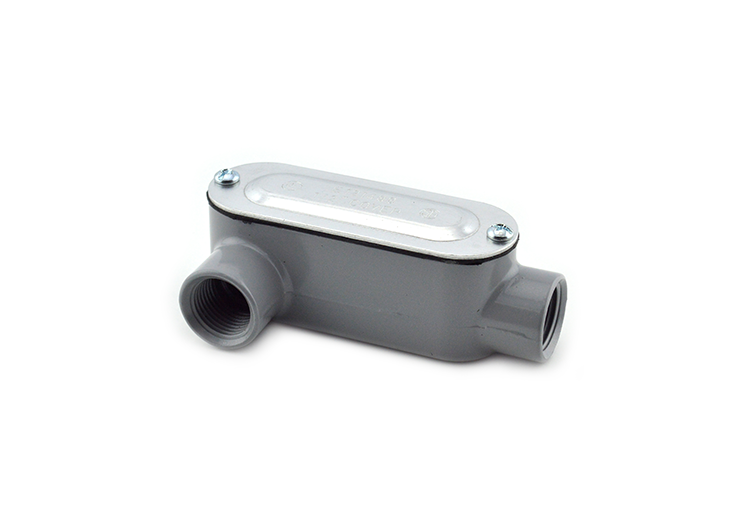

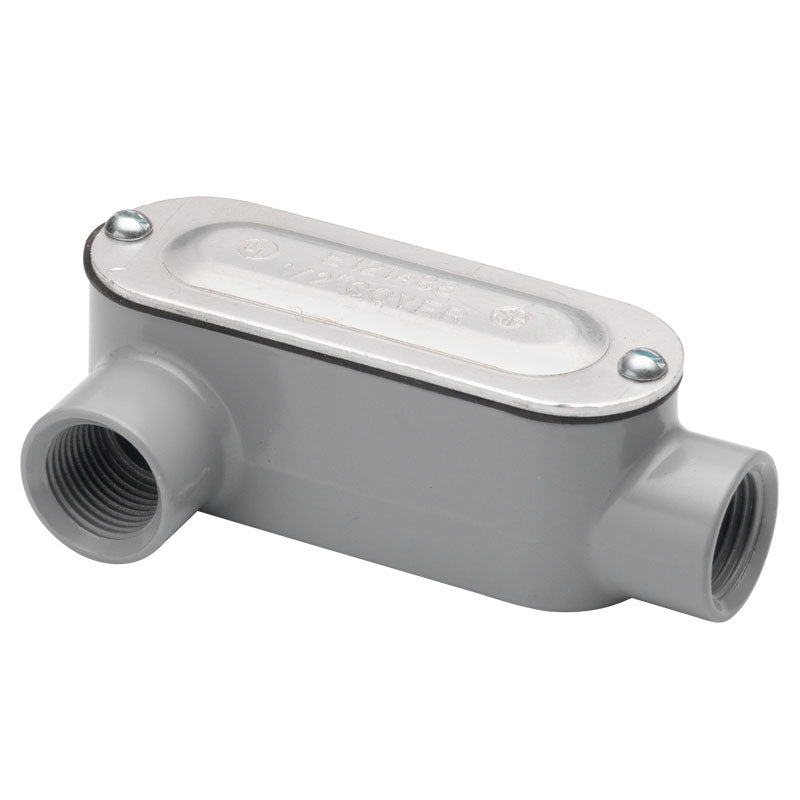

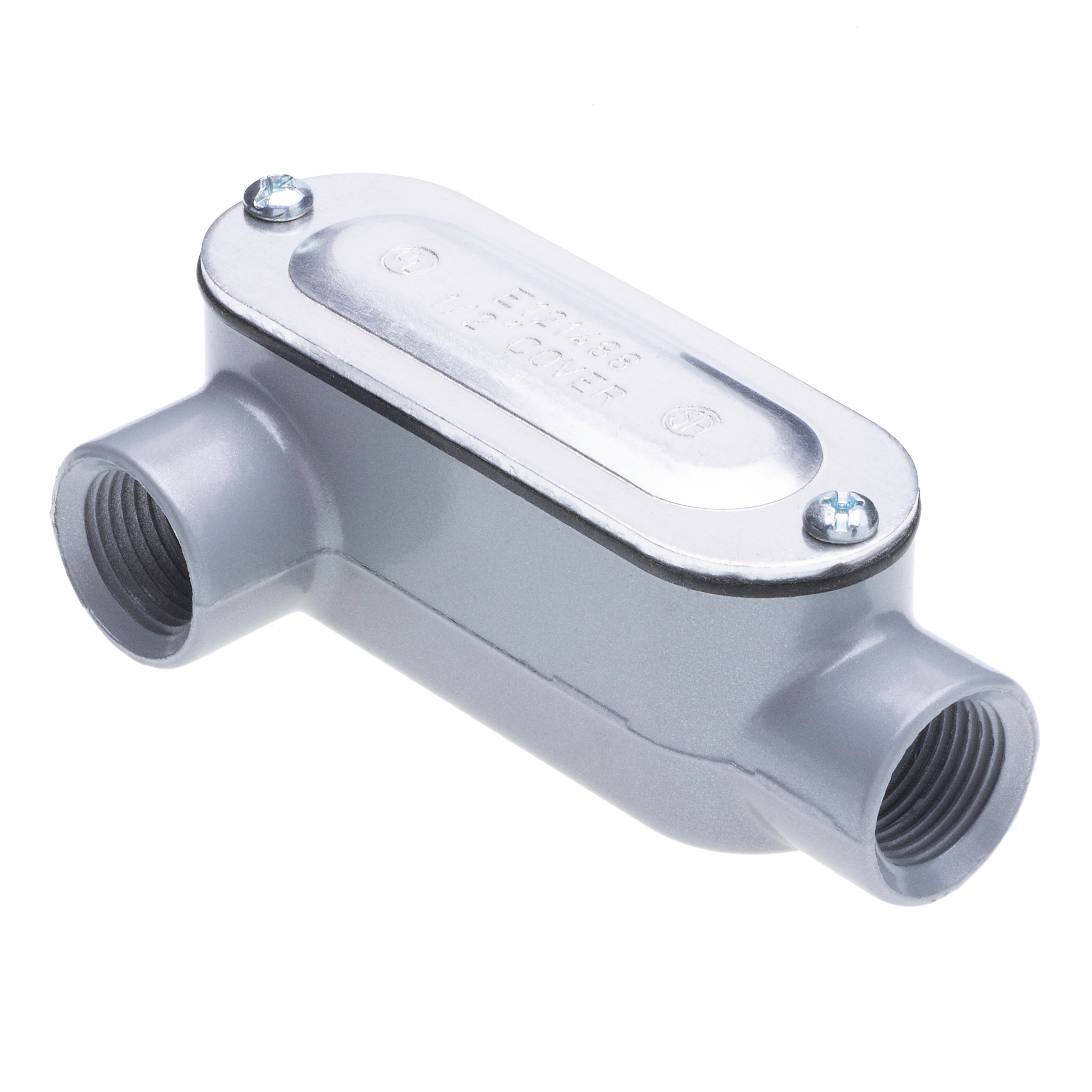

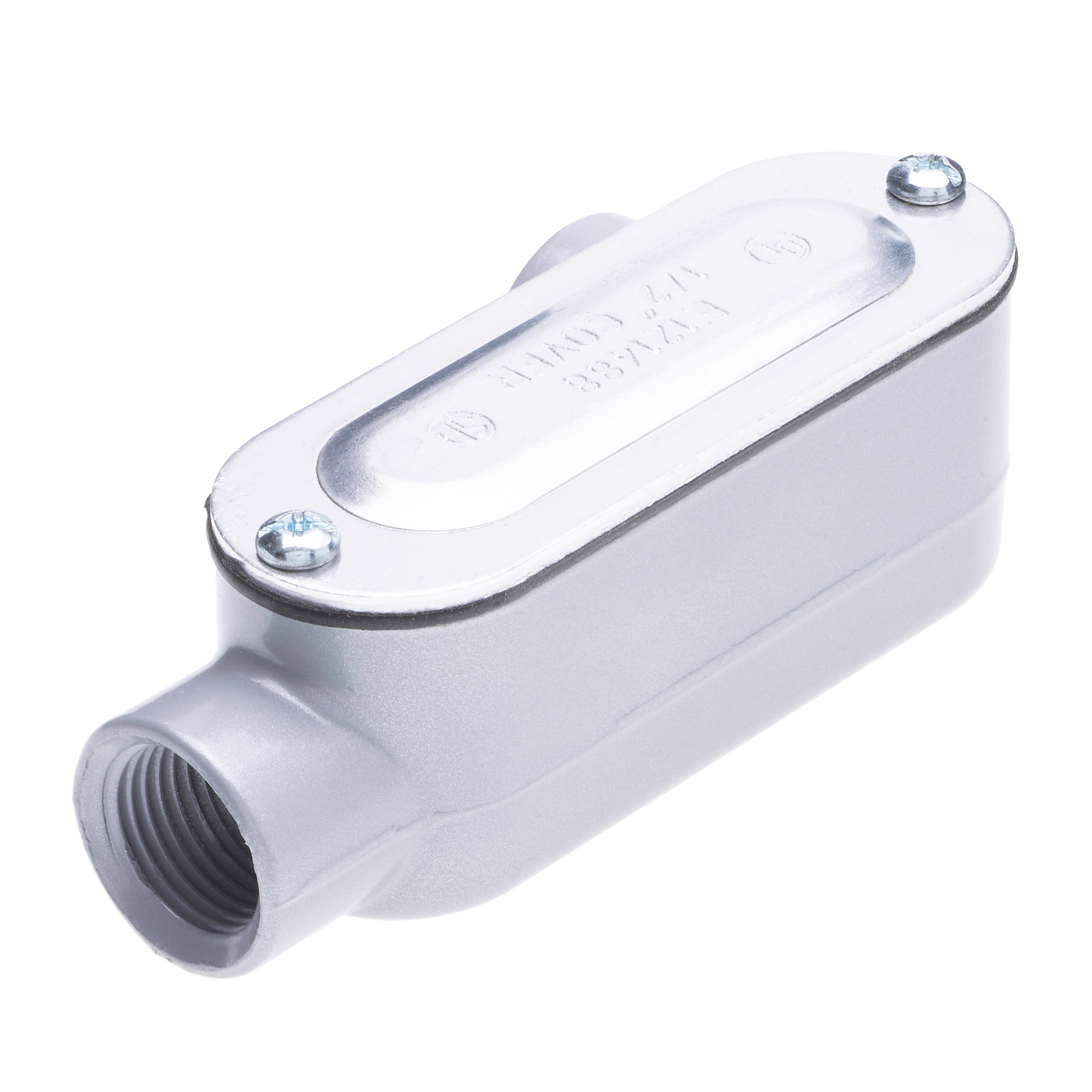

Bridgeport Fittings LR-41CG aluminum type LR threaded conduit body with cover and gasket 1/2 inch 90 degree

Product Description

The BRIDGEPORT FITTINGS LR-41CG is a 1/2 inch aluminum Type LR threaded rigid/IMC conduit body, supplied with a cover and gasket. This conduit body provides access to the interior of a conduit system for inspection, pulling, and maintenance. It is designed for a 90-degree cable pull, with the cable exiting through the right side of the body, making it suitable for various electrical installations.

• Designed for 90-degree cable pulls with right-side exit, facilitating specific wiring configurations.
• Includes a cover and gasket, offering protection against dust, water, and other liquids.
• Provides easy access to conduit interiors for inspection, cable pulling, and routine maintenance.

Product Highlights

This aluminum Type LR conduit body facilitates 90-degree cable pulls and provides protected access for rigid/IMC conduit systems.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: LR-41CG
• Country of Origin: India

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39131708
• Series: Series 5
• Trade Size: 1/2 Inch
• Access Opening: 90 Degree, Right Side
• Certifications: UL 514A, UL (Canada and US), CSA
• Configuration: LR
• Hub Location: 90 Degree
• Hub Size: 1/2 Inch
• Installation Type: Threaded (Rigid/IMC)
• Material: Enamel Painted Aluminum
• Number Of Hubs: 2
• Conduit Type: IMC/Rigid
• UPC: 781747037411
• Includes: Cover and Gasket
• GTIN: 30781747037412
• Form: Form 85
• Capacity: 4.25 cu-Inch
• Cover Type: Screw On
