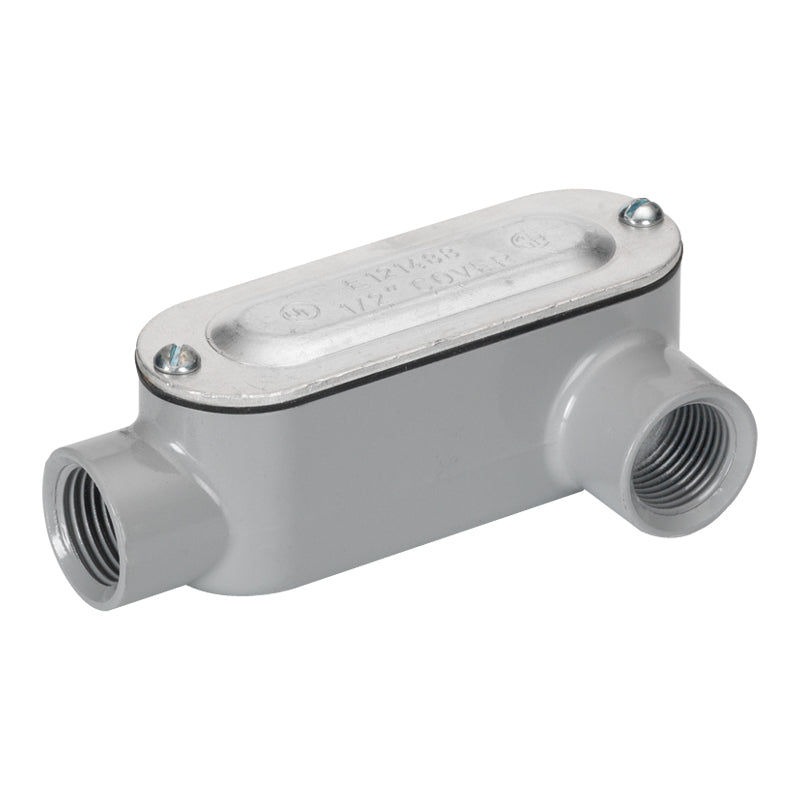

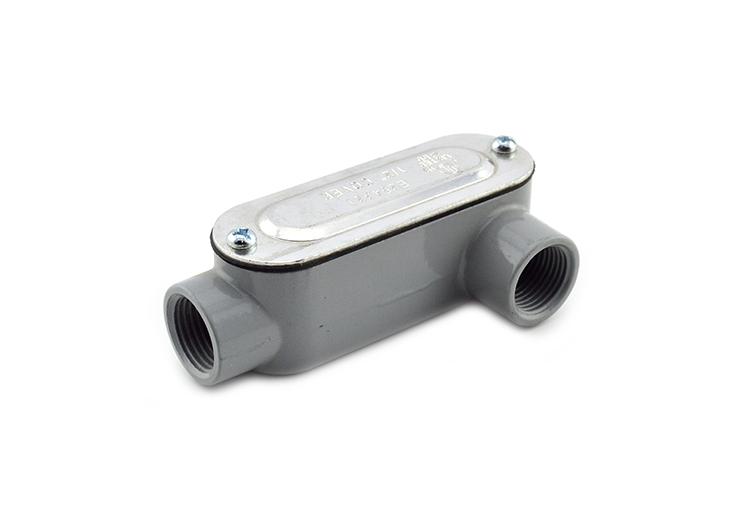

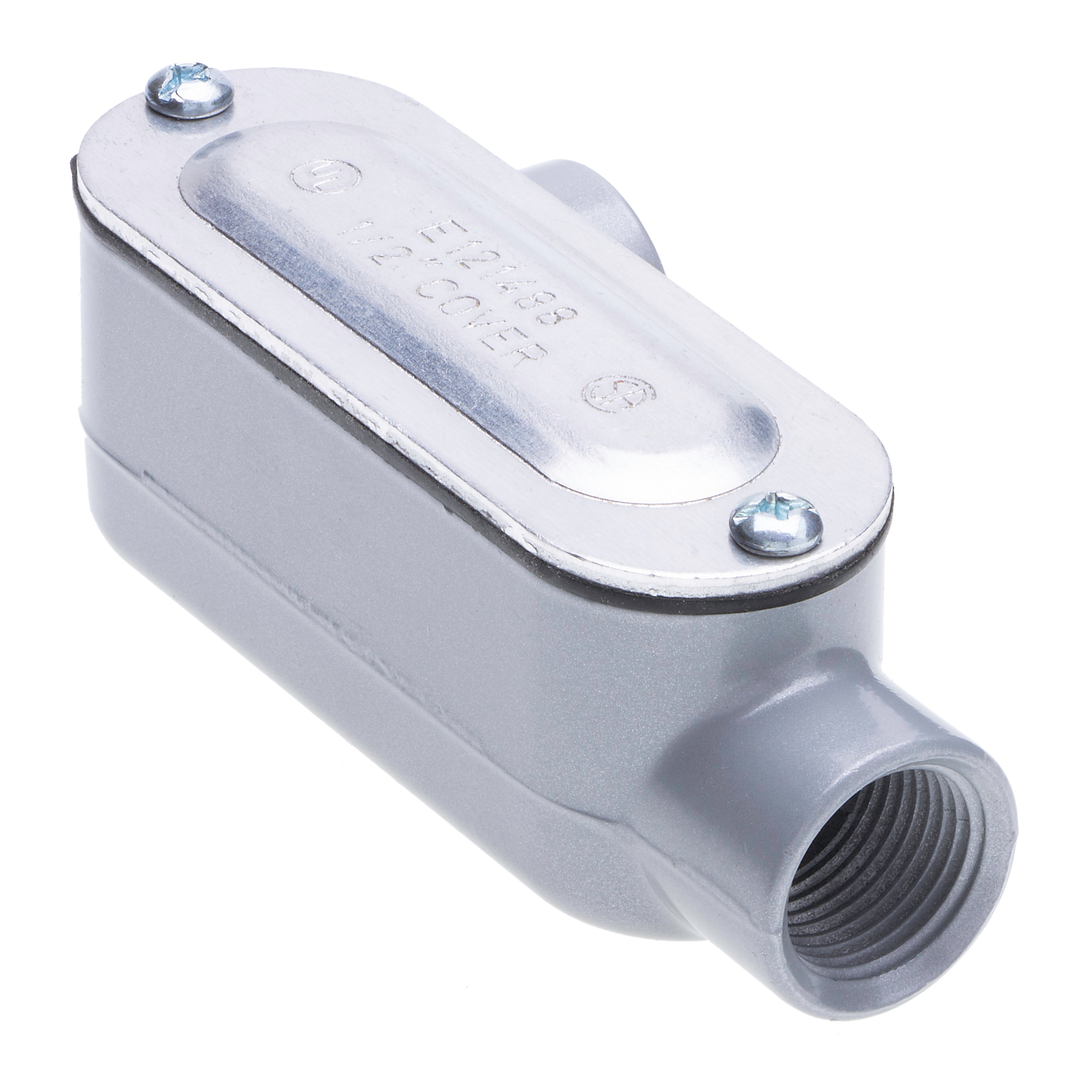

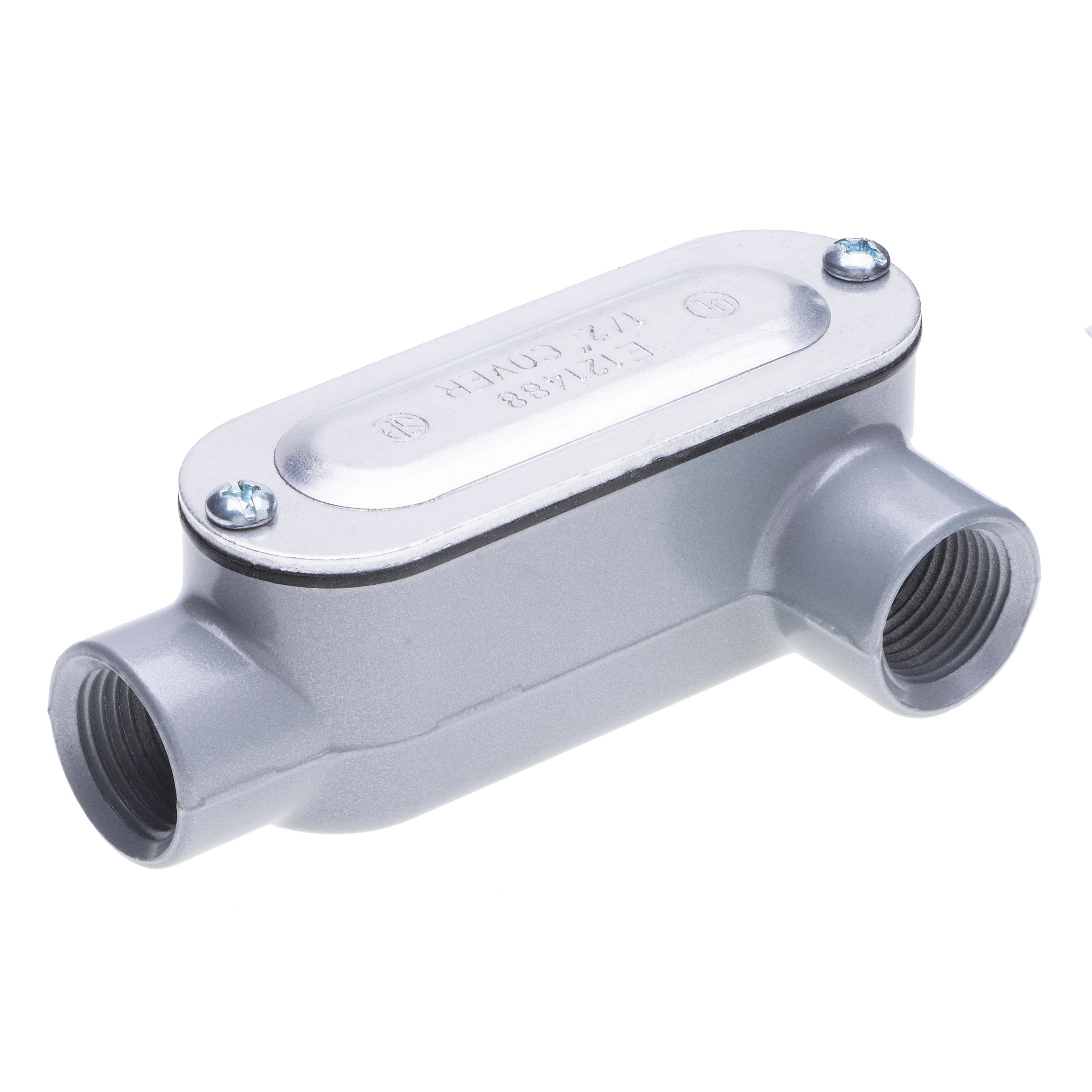

Bridgeport Fittings LL-41CG aluminum type LL threaded conduit body with cover and gasket 1/2 inch

Product Description

The BRIDGEPORT FITTINGS LL-41CG is an aluminum Type LL threaded conduit body, designed for 1/2 inch rigid/IMC conduits. It includes a cover and gasket, providing access to the conduit system for inspection, pulling, and maintenance. This conduit body features a 90-degree access opening on the left side, making it suitable for specific cable pull configurations. Its durable aluminum construction ensures reliable performance.

• Designed for 90-degree cable pull with left-side exit.
• Includes cover and gasket for protection against dust and water.
• Provides easy access for conduit system inspection, pulling, and maintenance.

Product Highlights

Durable aluminum construction with threaded installation for rigid/IMC conduits, ensuring reliable access and protection.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: LL-41CG
• Country of Origin: India

Technical Specifications

• Series: 5 Series
• Hub Size: 1/2 in.
• Access Opening: 90 Degree, Left Side
• Certifications: UL 514A, UL (Canada and US), CSA, ARRA, Buy American Act and RoHS Compliant, CSA 702847, UL E11077
• Type: LL
• Hub Location: 90 Degree
• Installation: Threaded (Rigid/IMC)
• Material: Aluminum
• Number of Hubs: 2
• Application: Rigid/IMC Conduit
• Conduit Body Type: Rigid and IMC
• Includes: Cover and Gasket
• Finish: Enamel Painted
• Capacity: 4.25 cu-in
• Connection Type: Threaded
• Enclosure Rating: NEMA FB-1
• Form: Form 85
