Bridgeport Fittings LB-65CG malleable lb conduit body with cover gasket 1-1/2 inch box of 2

Product Description

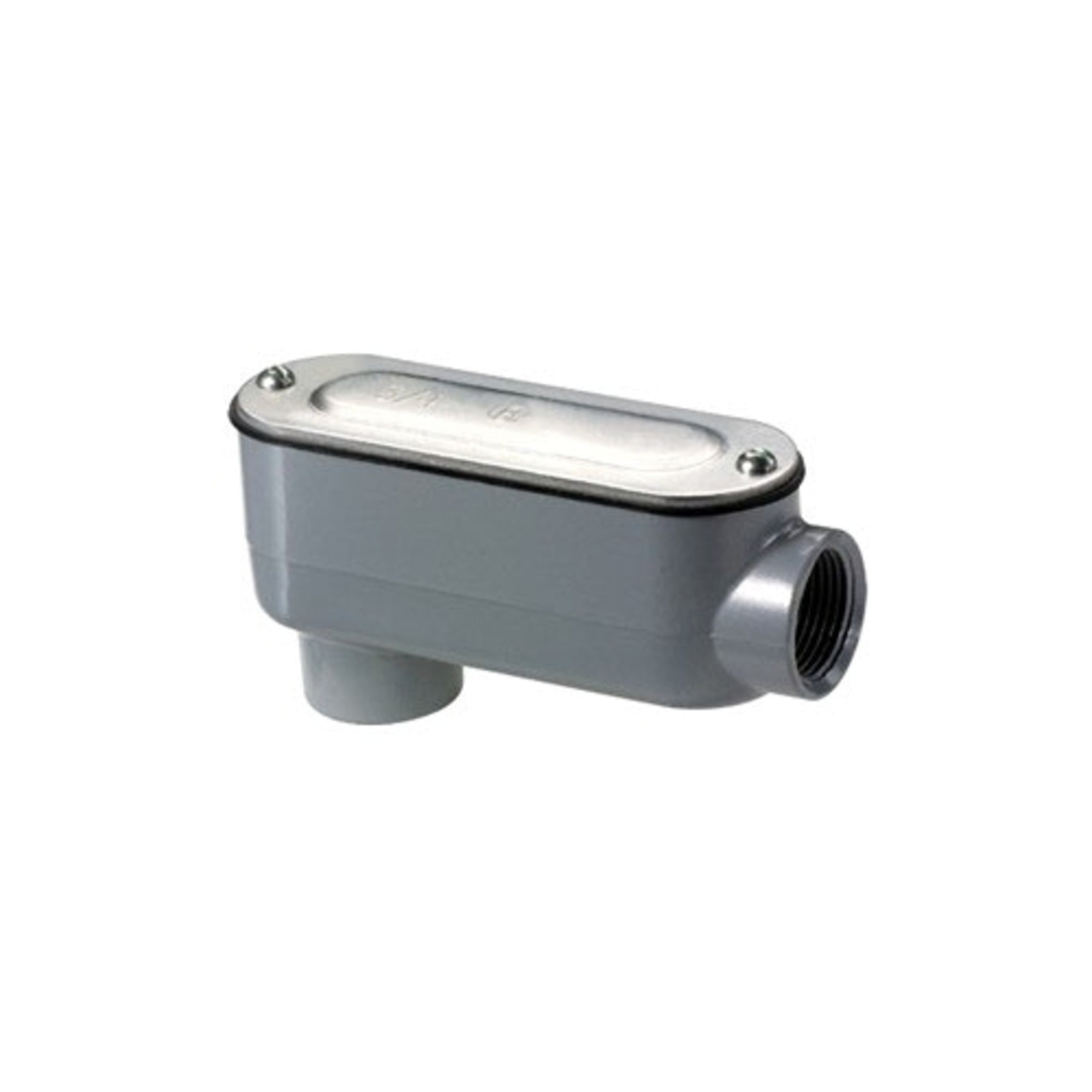

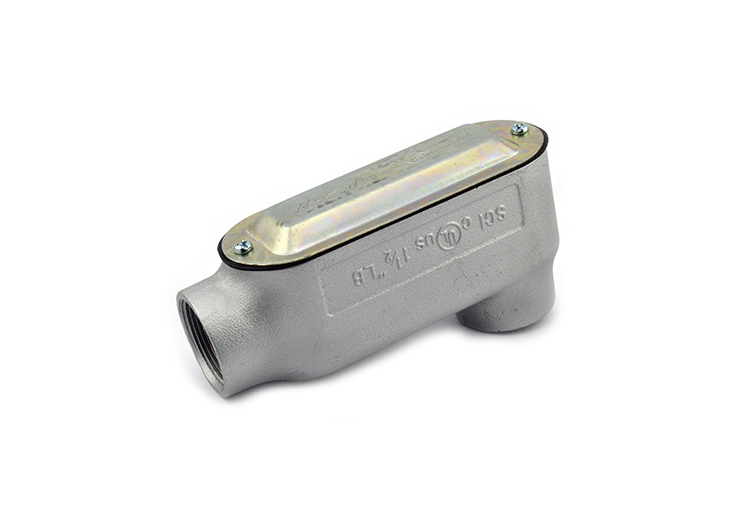

The BRIDGEPORT FITTINGS LB-65CG is a Type LB rigid conduit body designed for accessing the interior of conduit systems for inspection, pulling, and maintenance. It features threaded hubs for rigid and intermediate metal conduit and comes preassembled with a cover and neoprene gasket, protecting inner wiring from dust and rain. This malleable iron conduit body is suitable for heavy-duty industrial applications and wet locations.

• Heavy-Duty: Malleable iron offers excellent impact abrasion and corrosion resistance, making these conduit bodies suitable for heavy-duty industrial applications.
• Gasket and Cover: Conduit body comes preassembled with a cover and neoprene gasket for protecting the inner wiring system from dust, water, and most other liquids and oils.
• Threaded Hubs: NPT threads allow rigid and intermediate metal conduit to be screwed directly into the conduit body.

Product Highlights

Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection, and routine maintenance.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: LB-65CG

Technical Specifications

• Finish: Zinc Plated
• UL Standard: UL-514B
• Material: Malleable Iron
• Hub Size: 1-1/2 Inch
• Type: Type LB with Cover & Gasket
• Installation Type: Threaded (Rigid)
• Number Of Hubs: 2
• Gasket Material: Neoprene
• Cover Type: Zinc Coated Steel, Screw On
• Hub Location: 90 Degree
• Access Opening: Back
• Applicable Standard: Federal Specification A-A-50563A, NEMA FB-1
• Application: Wet Location
• Volume: 35.3 cubic inch
• Max Conductor Fill: 3-#2AWG
