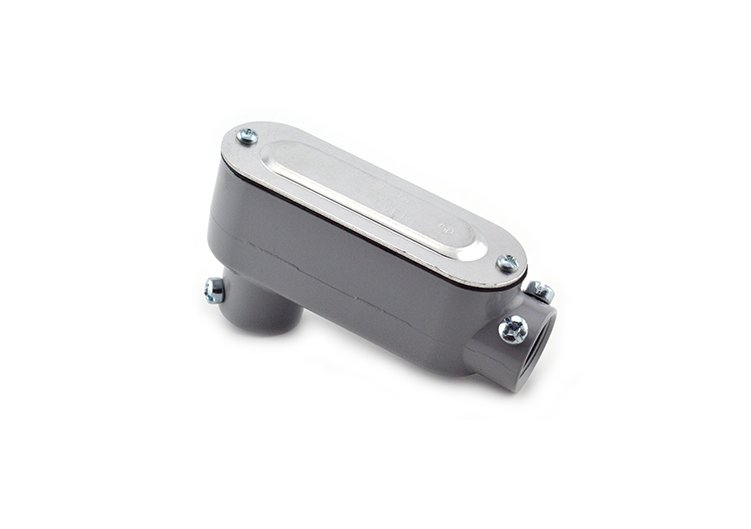

Bridgeport Fittings LB-42CGC Aluminum Type LB Combination Threaded/Set-Screw Conduit Body With Cover and Gasket 3/4 Inch

Product Description

The BRIDGEPORT FITTINGS LB-42CGC is a 3/4 inch aluminum Type LB combination conduit body designed for use with Threaded/Set-Screw Rigid, IMC, and EMT conduit applications. It includes a cover and gasket, providing access to the conduit system for inspection, pulling, and maintenance. This Type LB body facilitates a 90-degree change in cable direction through the back, featuring two hubs and a 7.2 cubic inch capacity.

• Features a combination threaded and set-screw design for compatibility with Rigid, IMC, and EMT conduit applications.
• Includes a preassembled cover and gasket, providing access for inspection, pulling, and maintenance of the conduit system.
• Type LB configuration allows for a 90-degree change in cable direction, with two 3/4 inch hubs and a 7.2 cubic inch capacity.

Product Highlights

Aluminum construction with combination threaded/set-screw installation, UL 514A approved, and RoHS compliant for versatile conduit system access.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: LB-42CGC
• Country of Origin: India

Technical Specifications

• ECCN: EAR99
• Country of Origin: India
• UNSPSC: 39131708
• Cover and Gasket: Yes
• Hub Size: 3/4 in
• Application: EMT/Rigid/IMC Conduit Applications
• Enclosure: NEMA FB-1
• Material: Aluminum
• Number of Hubs: 2
• Series: 5 Series
• Standards/Approvals: RoHS Compliant, UL Listed, UL 514A
• Type: Type LB Combination Raintight
• Finish: Paint
• Installation: Threaded (Rigid/IMC) Set Screw (EMT)
• Capacity: 7.2 Cu Inch
• Hub Location: 90 Degree
• Access Opening: Back
