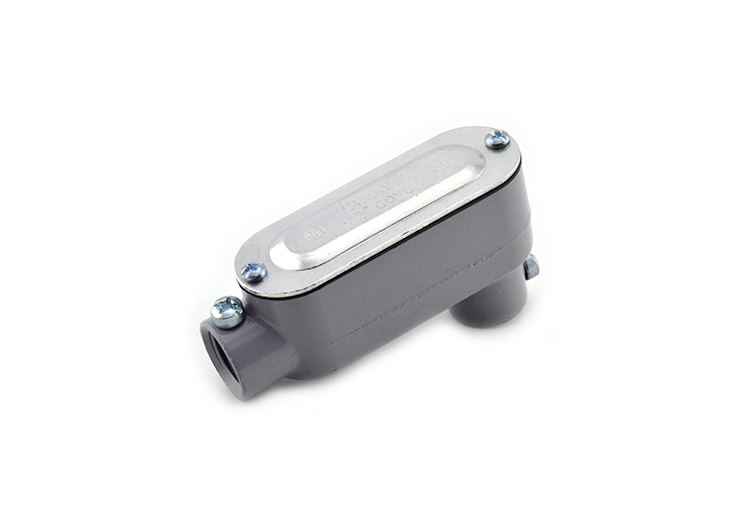

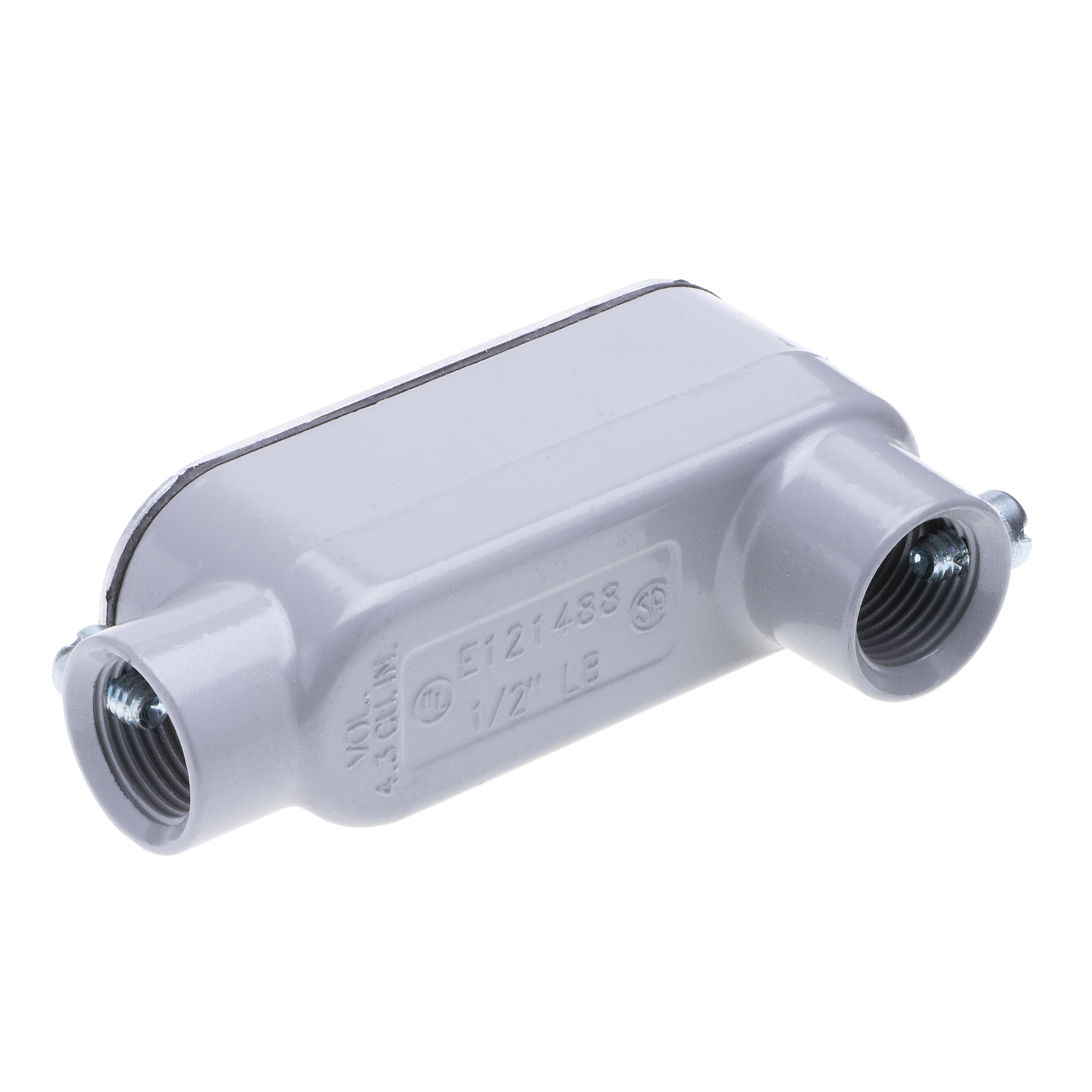

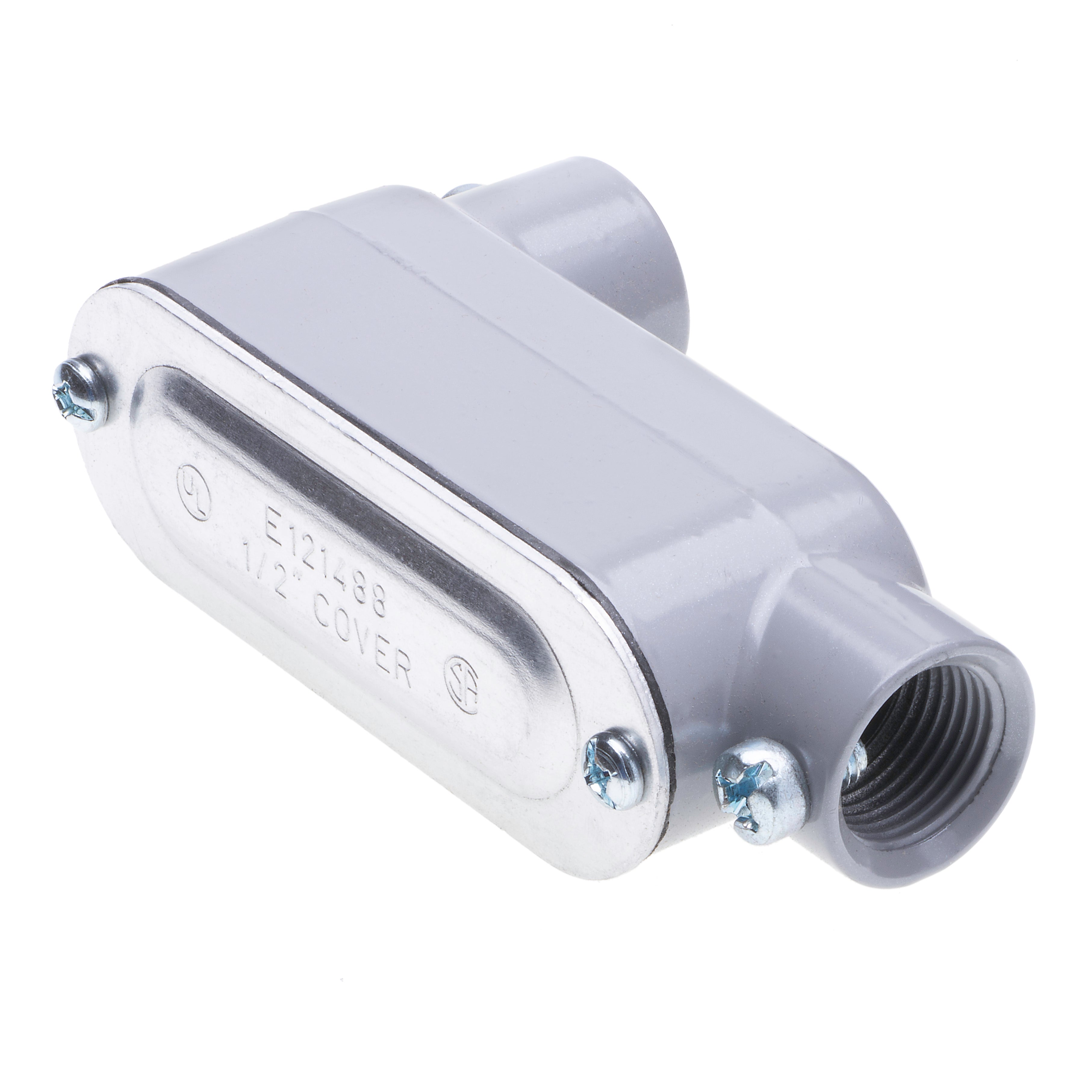

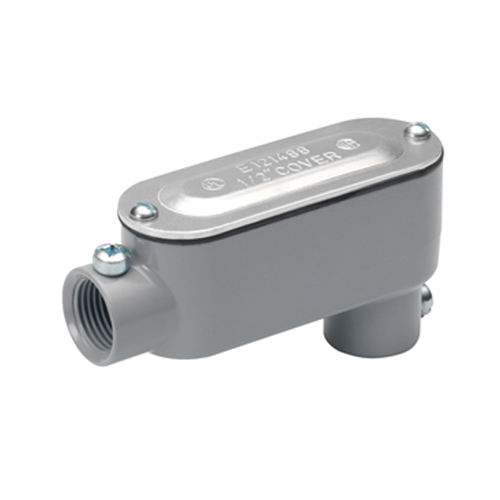

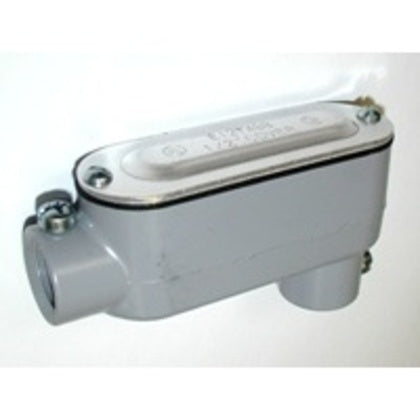

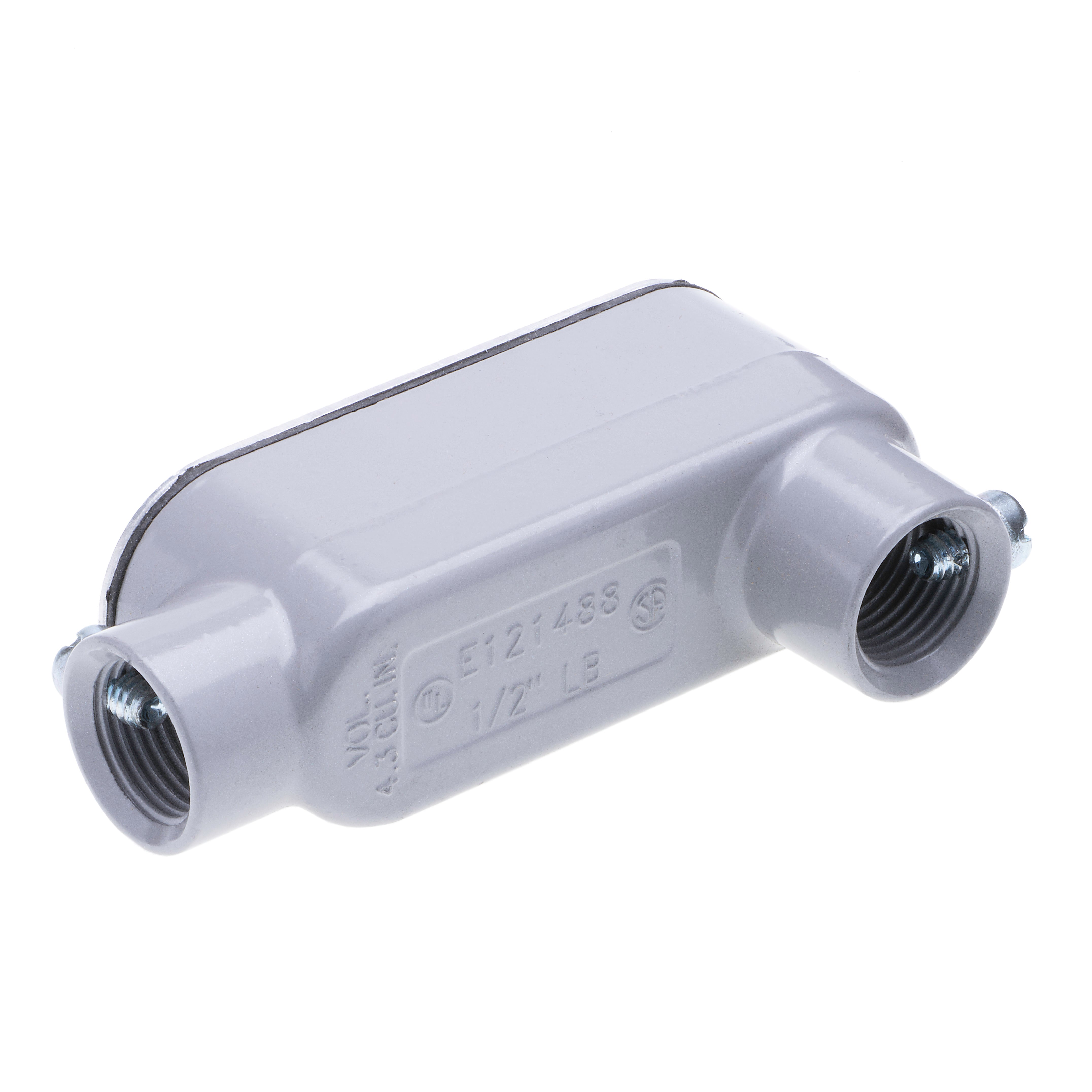

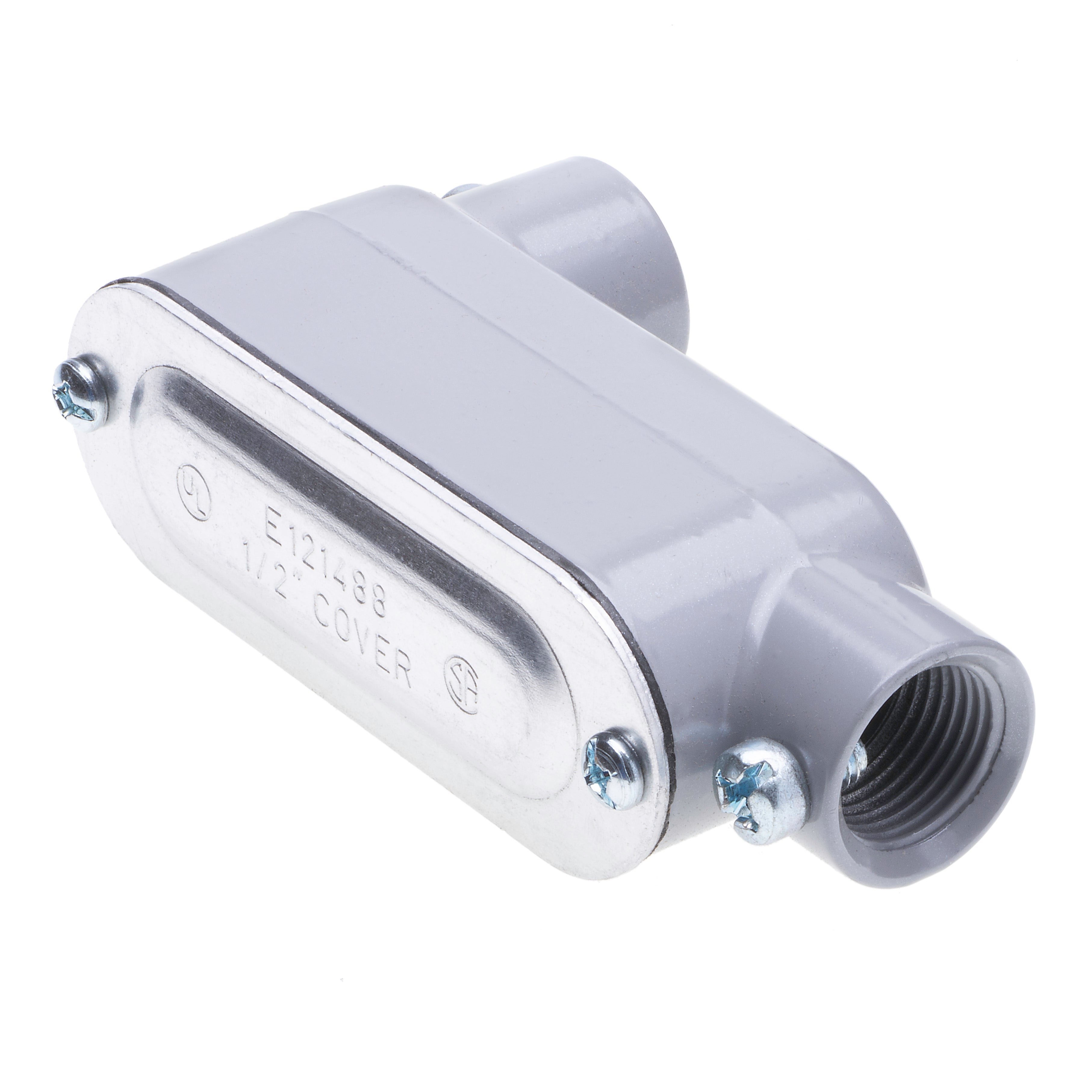

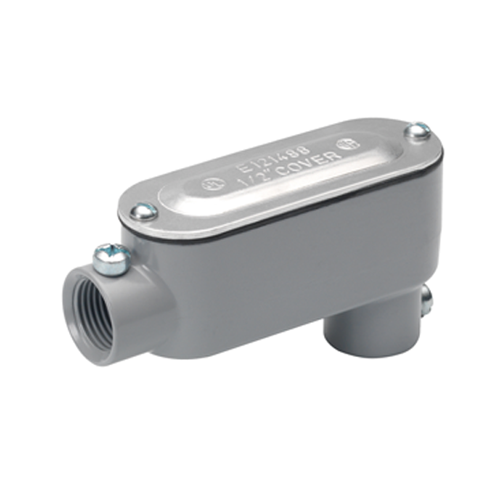

Bridgeport Fittings LB-41CGC Aluminum Type LB Combination Conduit Body With Cover And Gasket 1/2 in.

Product Description

The BRIDGEPORT FITTINGS LB-41CGC is a 1/2 inch Aluminum Type LB Combination Conduit Body. This unit includes set screws, a gasket, and a cover, designed to provide access to the interior of a conduit system. It facilitates inspection, wire pulling, and maintenance within electrical installations. The combined set screw and NPT threaded design allows for versatile use with rigid conduit, IMC, and EMT applications.

• Units feature a threaded interior for rigid conduit and set screws for EMT.
• Preassembled with a cover and gasket for immediate installation and protection.
• Type LB design allows for a 90-degree change in cable direction.

Product Highlights

Provides versatile access for inspection and maintenance in EMT, IMC, and rigid conduit systems, featuring a raintight design.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: LB-41CGC
• Country of Origin: India

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39131708
• Application: EMT/Rigid/IMC Conduit Applications
• Connection Type: Screw
• Enclosure Rating: NEMA FB-1
• Hub Size: 1/2 in
• Material: Aluminum
• Number of Hubs: 2
• Series: 5 Series
• Standards/Approvals: RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Type: Type LB Combination Raintight
• Finish: Paint
• UL Standard: UL-514A
• Color: Gray
