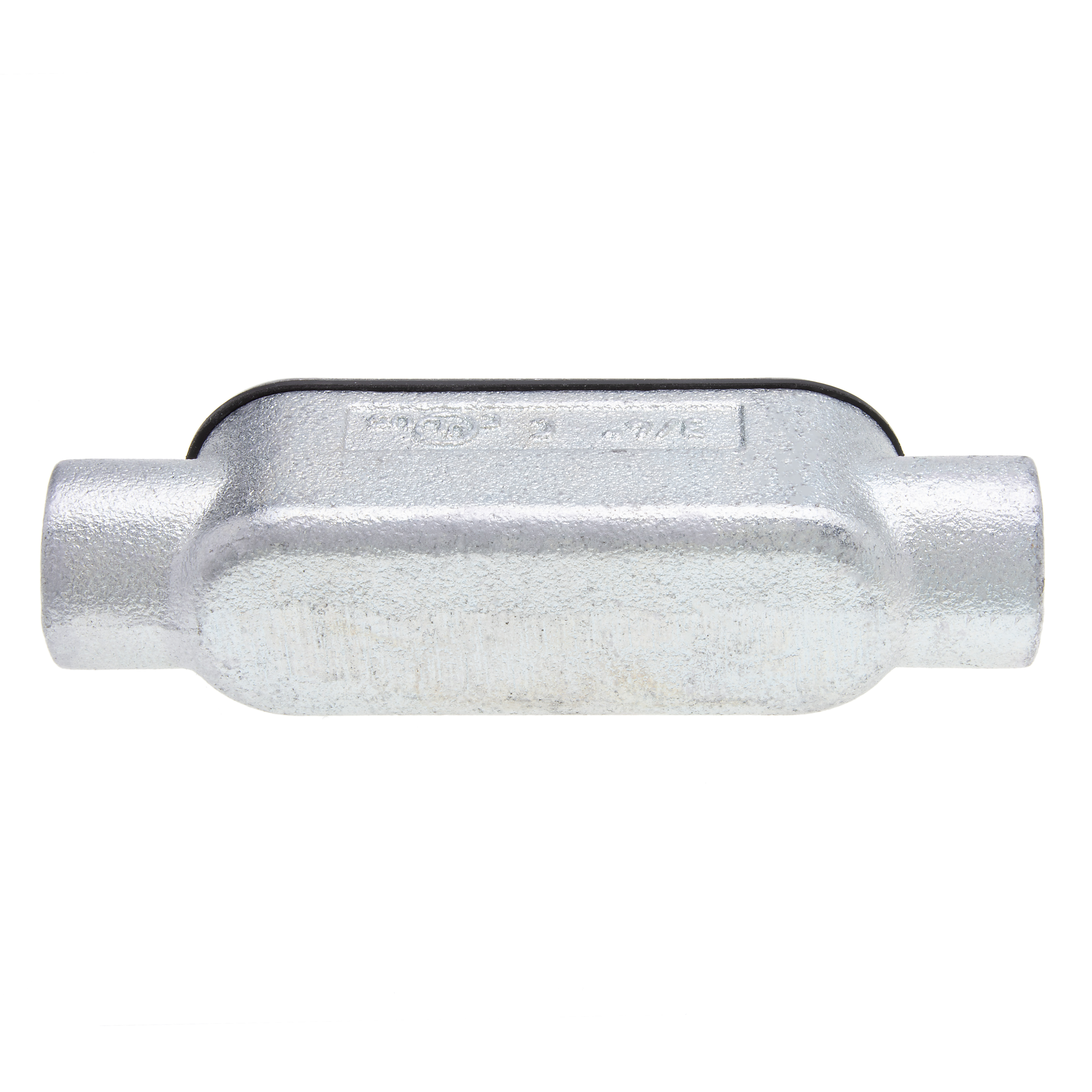

Bridgeport Fittings C-62CG Type C Conduit Body 3/4 Inch

Product Description

The BRIDGEPORT FITTINGS C-62CG is a 3/4 inch Type C rigid conduit body with cover and gasket, designed to provide access to the interior of a conduit system for wire pulling, inspection, and routine maintenance. Constructed from malleable iron with NPT threads, this conduit body accepts rigid and intermediate metal conduit at both hubs. The included neoprene gasket and cover protect interior wiring from dust and moisture ingress. Licensed electricians and conduit installers use this fitting in commercial and industrial conduit installations where inline access points are required.

The C-62CG is suited for use in rigid metal conduit systems installed in commercial, industrial, and residential applications where a straight-through inline access point is needed. The Type C straight-body design allows clear access to both entry and exit hubs simultaneously, simplifying wire pulls on long or congested runs. This conduit body is part of a product family available in trade sizes 1/2 inch through 4 inches, making it a consistent solution across multi-size conduit layouts.

Key Features

• Malleable iron construction for durability in demanding conduit installations
• NPT threads compatible with rigid and intermediate metal conduit
• Type C straight-body design provides simultaneous access to both hubs for easier wire pulling
• Includes neoprene gasket and cover to protect interior wiring from dust and water
• UL Listed under File No. E11077
• Available in trade sizes 1/2 inch through 4 inches as part of the same product family

Compatibility

Designed as an OEM-style replacement and standard-fit conduit body for 3/4 inch rigid metal conduit and intermediate metal conduit systems using NPT thread connections.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the conduit system before opening the conduit body or accessing interior wiring. Thread conduit into the top and bottom hubs securely before feeding conductors through. Ensure the neoprene gasket is properly seated before fastening the cover to maintain the dust and moisture seal.

Technical Specifications

• Trade Size: 3/4 inch
• Body Type: Type C (straight-through)
• Material: Malleable Iron
• Thread Type: NPT
• Conduit Compatibility: Rigid Metal Conduit, Intermediate Metal Conduit
• Gasket Material: Neoprene
• Listing: UL Listed, File No. E11077

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: C-62CG
