Product Description

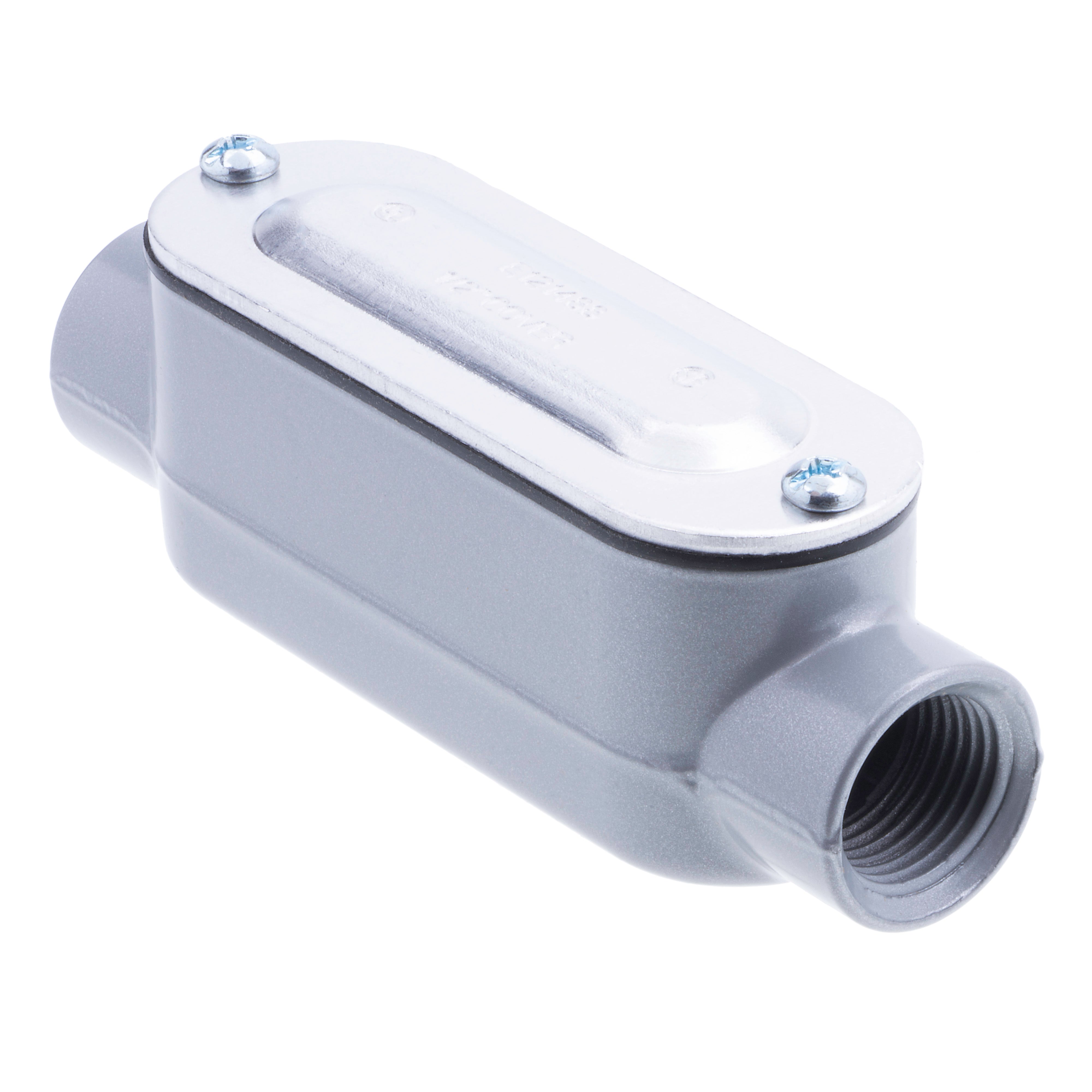

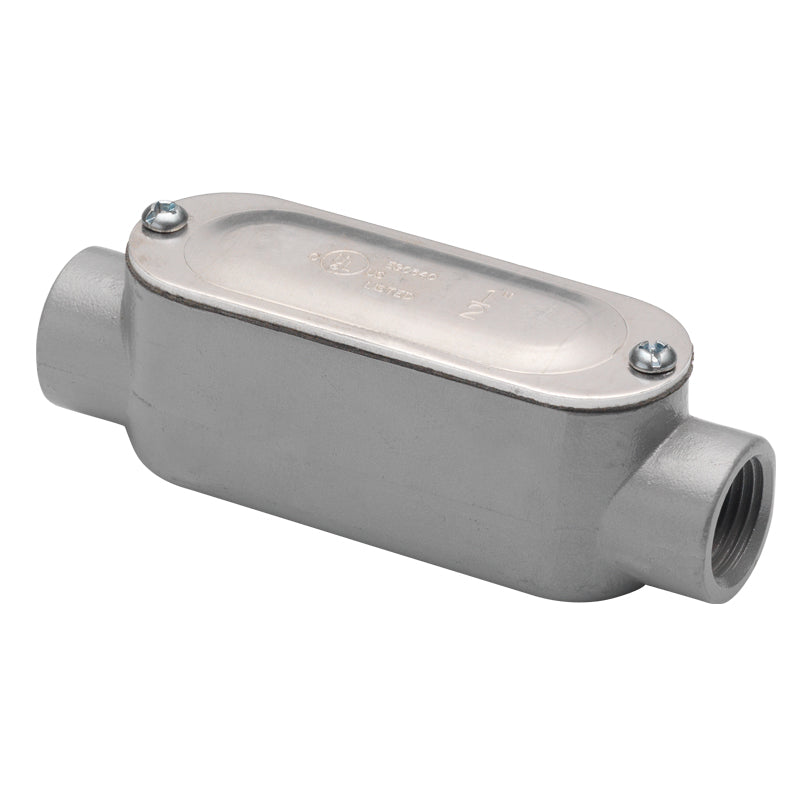

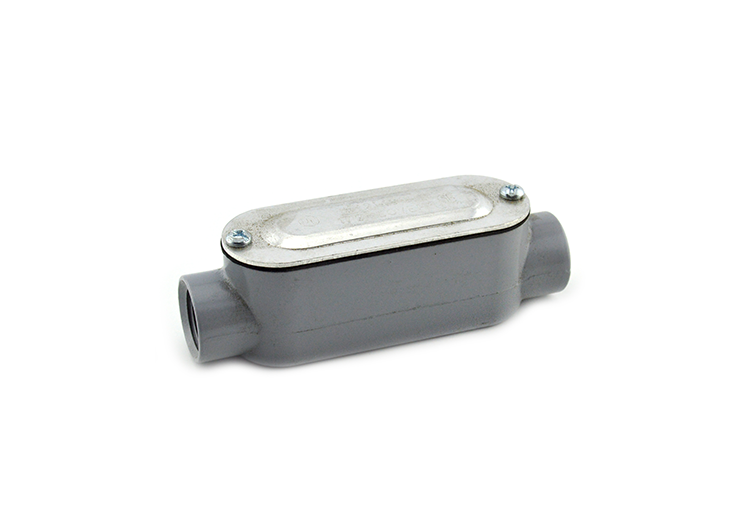

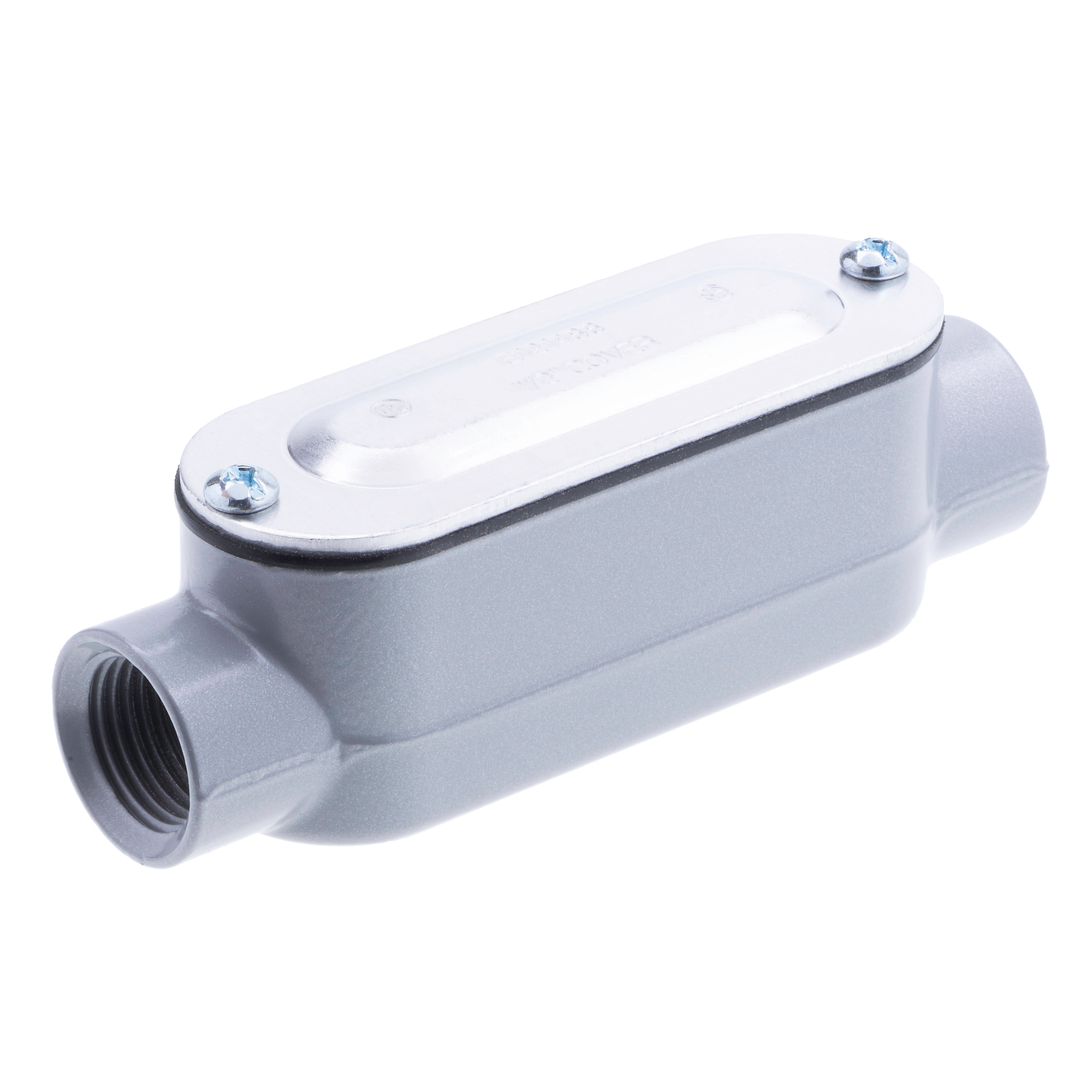

The BRIDGEPORT FITTINGS C-41CG is a 1/2 inch Aluminum Type C threaded conduit body designed for rigid and IMC conduit systems. It includes a cover and gasket, providing access to the interior of the conduit for inspection, pulling, and maintenance. This die-cast aluminum body is suitable for various electrical installations, ensuring protection against dust and water.
- Designed for rigid and IMC conduit systems.
- Includes a cover and gasket for protection against dust and water.
- Provides access to conduit interior for inspection and maintenance.
Product Highlights
Aluminum Type C conduit body with cover and gasket for rigid/IMC conduit.
Product Information
Standard Information
-
Brand: BRIDGEPORT FITTINGS
-
Manufacturer Part Number: C-41CG
-
Country of Origin: India
Technical Specifications
-
Series: 5 Series
-
Trade Size: 1/2 Inch
-
Access Opening: Straight Side
-
Certifications: UL 514A, UL (Canada and US), CSA, cULus Listed
-
Configuration: C
-
Hub Location: Straight
-
Hub Size: 1/2 Inch
-
Mounting Type: Threaded (Rigid/IMC)
-
Material: Enamel Painted Aluminum
-
Number Of Hubs: 2
-
Conduit Type Compatibility: IMC/Rigid Conduit
-
Includes: Cover & Gasket
-
Finish: Enamel Paint
-
Form: 85
-
Capacity: 4.25 cu-Inch
-
Cover Type: Screw On
-
Enclosure Rating: NEMA FB-1
-
RoHS Compliant: Yes
