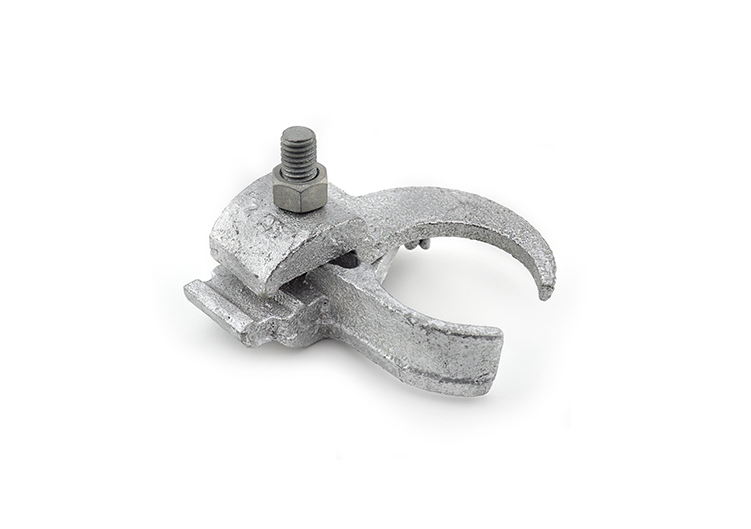

Bridgeport Fittings 976 Edge Type Conduit Clamp 2 in

Product Description

The BRIDGEPORT FITTINGS 976 is a 2-inch edge type conduit clamp constructed from malleable iron for heavy-duty conduit support applications. It is designed to secure rigid metal conduit (RMC), intermediate metal conduit (IMC), and electrical metallic tubing (EMT) as they run across or perpendicular to beams, channels, and angle iron supports. The malleable iron body delivers the strength, rigidity, and ductility required in demanding structural mounting scenarios. Licensed electricians and electrical contractors install this fitting in commercial and industrial environments where robust conduit management is essential.

This clamp is suited for use in commercial and industrial installations where conduit must be routed along structural steel members such as unistrut channel, angle iron, and wide-flange beams. It is particularly useful in panel rooms, equipment rooms, and open-structure buildings where conduit runs are mounted to exposed structural supports. The edge-type design allows the clamp to grip the flange or edge of a support member securely, keeping conduit aligned and stable over long runs.

Key Features

• Malleable iron construction provides high strength and ductility for heavy-duty applications
• Edge-type design clamps to beams, channels, and angle iron supports
• Compatible with 2-inch RMC, IMC, and EMT conduit
• Available in trade sizes 1/2 inch through 3 inches across the product family
• Rigid mounting geometry keeps conduit perpendicular or parallel to structural members

Compatibility

Designed for use with 2-inch rigid metal conduit (RMC), intermediate metal conduit (IMC), and electrical metallic tubing (EMT) in structural edge-mount applications on beams, channel, and angle supports.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before beginning conduit installation or repositioning existing runs. Ensure the structural support member is rated to carry the combined load of the clamp, conduit, and wiring. Use fasteners appropriate for the support material and torque to the fastener manufacturer's specification.

Technical Specifications

• Trade Size: 2 inches
• Conduit Types Supported: RMC, IMC, EMT
• Material: Malleable Iron
• Mounting Style: Edge Type

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 976
