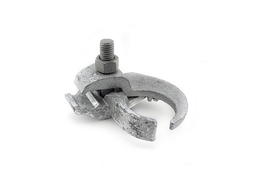

Bridgeport Fittings 975 Edge Type Conduit Clamp 1-1/2 in

Product Description

The BRIDGEPORT FITTINGS 975 is a 1-1/2 inch edge type conduit clamp designed to secure rigid conduit, intermediate metal conduit (IMC), and electrical metallic tubing (EMT) across or perpendicular to beam, channel, and angle supports. Constructed from malleable iron with a steel bolt and nut, it delivers high impact resistance and fracture toughness that lighter clamp materials cannot match. The hot dip galvanized and zinc electroplate finish provides corrosion resistance for demanding install environments. Licensed electricians and electrical contractors are the primary installers of this fitting.

This clamp is suited for commercial and industrial electrical installations where conduit must be routed along structural steel beams, unistrut channel, or angle iron supports. The edge-mount design allows flexible positioning across or perpendicular to the support member, making it practical for congested runs and tight structural bays. The 975 is part of a product line that covers trade sizes 1/2 inch through 3 inches, so mixed-size conduit runs can be supported with a consistent product family. It is a common choice for industrial facilities, warehouses, and commercial construction projects requiring heavy-duty conduit management.

Key Features

• Malleable iron body provides high impact resistance and fracture toughness for heavy-duty conduit securing
• Secures 1-1/2 inch rigid conduit, IMC, and EMT to beam, channel, and angle supports
• Edge-type design allows mounting across or perpendicular to structural supports
• Hot dip galvanized and zinc electroplate finish for corrosion resistance
• Steel bolt and nut hardware included
• RoHS compliant, REACH compliant, and LEED compliant
• UL listed under UL File E161206

Compatibility

Designed to secure 1-1/2 inch rigid conduit, IMC, and EMT across or perpendicular to beam, channel, and angle supports. Compatible trade size is 1-1/2 inches.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before beginning conduit installation or support work. Ensure the structural support member is rated for the load before fastening the clamp. Do not overtighten the bolt and nut beyond snug-fit to avoid cracking the malleable iron body.

Technical Specifications

• Trade Size: 1-1/2 inches
• Material: Malleable Iron Clamps, Steel Bolt and Nut
• Finish: Hot Dip Galvanized, Zinc Electroplate
• Length: 3.9375 inches
• Width: 3.25 inches
• Weight: 110 pounds
• UL File: E161206
• Compliance: RoHS, REACH, LEED
• Warranty: 1 Year
• Country of Origin: China

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 975
