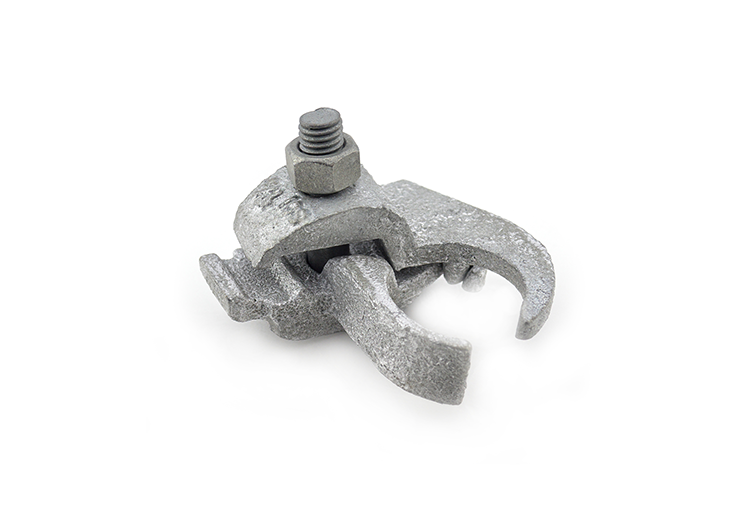

Bridgeport Fittings 974 Edge Type Conduit Clamp 1-1/4 in

Product Description

The BRIDGEPORT FITTINGS 974 is a 1-1/4 inch edge type conduit clamp designed to secure rigid conduit, intermediate metal conduit (IMC), and electrical metallic tubing (EMT) across or perpendicular to beam, channel, and angle supports. Constructed from malleable iron, the 974 delivers high strength, rigidity, and ductility for heavy-duty conduit routing in demanding environments. This clamp is installed by licensed electricians in commercial and industrial applications where a reliable mechanical fastening point on structural steel is required.

This clamp is suited for use in commercial and industrial electrical installations where conduit must be run perpendicular to or across structural supports such as beams, channels, and angle iron. It accommodates 1-1/4 inch trade size conduit and is part of a product line available in trade sizes 1/2 inch through 3 inch, making it a consistent solution across multi-size conduit runs on the same structure.

Key Features

• Fits 1-1/4 inch trade size rigid conduit, IMC, and EMT
• Malleable iron construction for high strength and ductility
• Edge-mount design allows perpendicular or across-beam conduit routing
• Compatible with beam, channel, and angle structural supports
• Available in trade sizes 1/2 inch through 3 inch for consistent system-wide use

Compatibility

Designed for use with 1-1/4 inch trade size rigid metal conduit, intermediate metal conduit (IMC), and electrical metallic tubing (EMT) mounted to beam, channel, and angle supports.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the work area before beginning conduit installation. Ensure the structural support surface is clean and free of burrs before seating the clamp. Use hardware appropriate for the load rating of the support structure.

Technical Specifications

• Trade Size: 1-1/4 inches
• Material: Malleable Iron
• Conduit Type Compatibility: Rigid, IMC, EMT
• Mount Type: Edge type, beam, channel, and angle supports

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 974
