Bridgeport Fittings 923S Emt Pipe Strap 1-1/4 Inch

Product Description

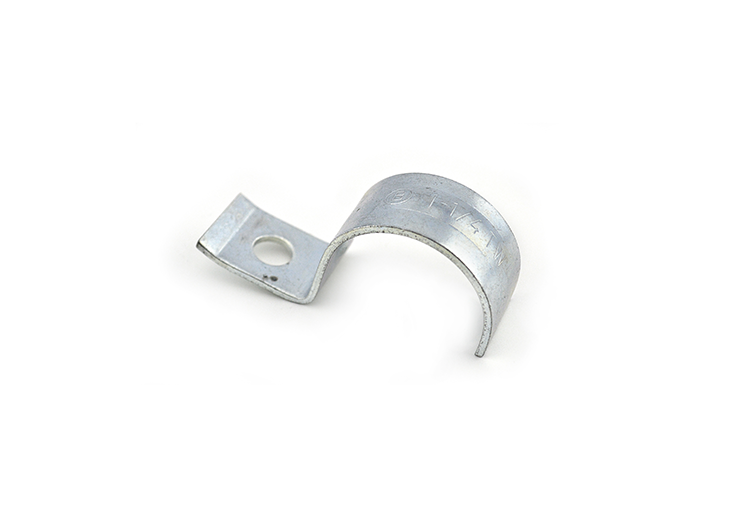

The BRIDGEPORT FITTINGS 923S is a one-hole EMT pipe strap designed to secure 1-1/4 inch electrical metallic tubing (EMT) to walls, ceilings, and other mounting surfaces. Constructed from zinc plated steel, it provides reliable corrosion resistance in demanding environments where moisture or chemical exposure is a concern. Electricians use this strap during conduit installation in residential, commercial, and light industrial settings to keep EMT runs properly supported and code-compliant. The single-hole mounting design allows fast, straightforward fastening with a single fastener per strap.

This strap is suited for EMT conduit installations in both new construction and retrofit work. It mounts to wood framing, concrete, masonry, and steel structure with the appropriate fastener for the substrate. The 923S is part of a broader line of one-hole EMT pipe straps available in trade sizes ranging from 1/2 inch through 4 inches, making it practical to stock across a range of conduit runs on the same job.

Key Features

• Fits 1-1/4 inch trade size EMT conduit
• Zinc plated steel construction for corrosion resistance
• Single-hole mounting for quick installation with one fastener
• Compatible with a wide range of mounting surfaces including wood, masonry, and steel
• Part of a trade-size series spanning 1/2 inch through 4 inch

Compatibility

Designed as an OEM-style support fitting for 1-1/4 inch EMT conduit installations in standard electrical raceway systems.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC requirements for conduit support spacing. Fasten the strap securely to the mounting surface using a fastener appropriate for the substrate type. Ensure EMT is de-energized and the circuit is locked out before making any connections to conduit runs. Do not overtighten the strap in a way that deforms the conduit wall.

Technical Specifications

• Trade Size: 1-1/4 inches
• Material: Zinc Plated Steel
• Mounting Holes: 1
• Conduit Type: EMT

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 923S
