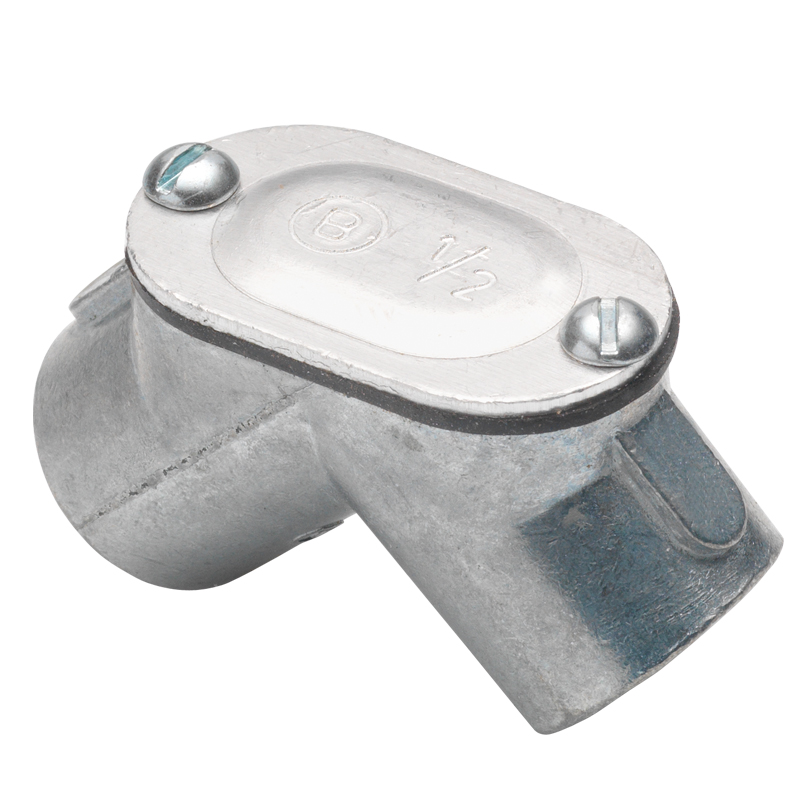

Bridgeport Fittings 81DC Rigid Pull Elbow 1/2 Inch Zinc

Product Description

The BRIDGEPORT FITTINGS 81DC is a 1/2-inch rigid pull elbow connector designed to facilitate 90-degree turns in rigid conduit runs. It is used when conductors must be pulled through an elbow before the conduit changes direction into the next rigid section. The fitting ships complete with a removable cover and gasket that seal the opening against dirt, dust, and moisture. Zinc-plated steel screws are included to secure the cover. This pull elbow meets NEMA Standard FB-1 and UL Standard UL-514B, making it suitable for licensed electrical work in commercial and residential applications.

This pull elbow is installed in rigid metal conduit systems where a 90-degree directional change is required and wire pull access at the bend point is necessary. Electricians use pull elbows when straight conduit bending is not practical or when conductor routing requires a dedicated pull point. The removable cover provides ongoing access for rewiring or adding conductors without disassembling the conduit run. The 1/2-inch trade size fits standard 1/2-inch rigid conduit fittings and couplings.

Key Features

• Facilitates 90-degree turns in 1/2-inch rigid conduit systems
• Removable cover and gasket included for sealed access at the bend
• Zinc-plated steel screws secure the cover and maintain connection integrity
• Meets NEMA Standard FB-1 and UL Standard UL-514B
• Allows wire pulling and feeding through the elbow before completing the turn

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1/2-inch rigid metal conduit systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the conduit run before opening the cover or pulling conductors. Use appropriate conduit wrenches and threading tools for rigid conduit work. Do not overtighten the cover screws, as this may damage the gasket seal.

Technical Specifications

• Trade Size: 1/2 inch
• Conduit Type: Rigid Metal Conduit
• Bend Angle: 90 degrees
• Cover: Included with gasket
• Screw Material: Zinc-plated steel
• Standards: NEMA FB-1, UL 514B

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 81DC
