Bridgeport Fittings 807DC2 90-degree Connector 1 in

Product Description

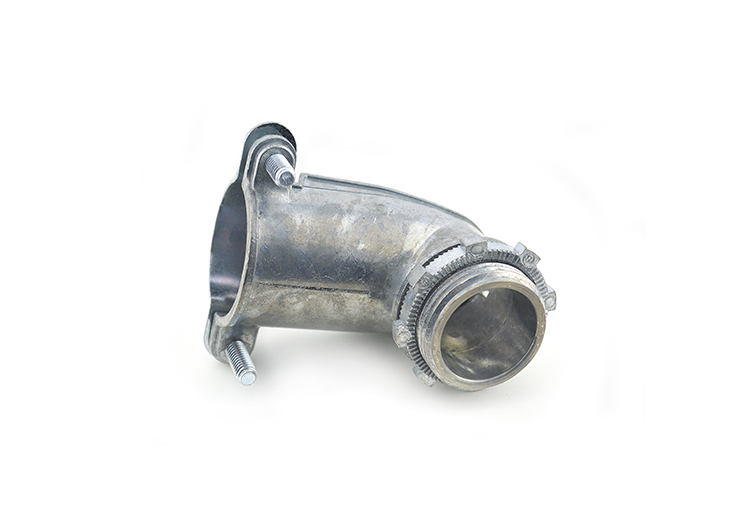

The BRIDGEPORT FITTINGS 807DC2 is a 90-degree connector designed to join flexible metal conduit or AC/MC cable to an electrical box or enclosure at a right angle. Constructed from die cast zinc, this connector delivers a precise fit, consistent finish, and strong corrosion resistance suited to demanding environments. Installation uses a steel cover and two set screws to secure the conduit or cable, followed by tightening the locknut to fasten the connector into the box knockout. This fitting is installed by licensed electricians during raceway and cable assembly work.

The 807DC2 is used in residential and commercial electrical installations where flexible metal conduit or AC/MC cable must enter an enclosure at a 90-degree angle. It accommodates flex trade size 1 inch conduit or cable with an outer diameter ranging from 1.187 inches to 1.312 inches, installed into a 1 inch knockout. Typical applications include panel terminations, junction box connections, and equipment enclosure entries where routing space is limited and a straight connector is not practical.

Key Features

• 90-degree angle entry for conduit or cable runs with space constraints
• Die cast zinc construction for corrosion resistance in harsh environments
• Steel cover with two set screws secures conduit or cable firmly
• Locknut included for securing connector to box knockout
• Compatible with flex trade size 1 inch conduit and 1.187 to 1.312 inch OD cable
• Fits 1 inch knockout openings on electrical boxes and enclosures

Compatibility

Designed for use with flexible metal conduit at flex trade size 1 inch or AC/MC cable with an outer diameter of 1.187 inches to 1.312 inches, installed into a 1 inch knockout on electrical boxes or enclosures.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for flexible metal conduit and AC/MC cable assemblies. De-energize the circuit and verify the power is off at the panel before beginning work. Fasten the conduit or cable into the connector using the steel cover and both set screws before tightening the locknut at the knockout. Do not overtighten the set screws in a way that deforms the conduit or cable jacket.

Technical Specifications

• Connector Angle: 90 degrees
• Trade Size: 1 inch
• Compatible Cable OD Range: 1.187 inches to 1.312 inches
• Knockout Size: 1 inch
• Material: Die Cast Zinc
• Fastening Method: Steel cover with two set screws and locknut

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 807DC2
