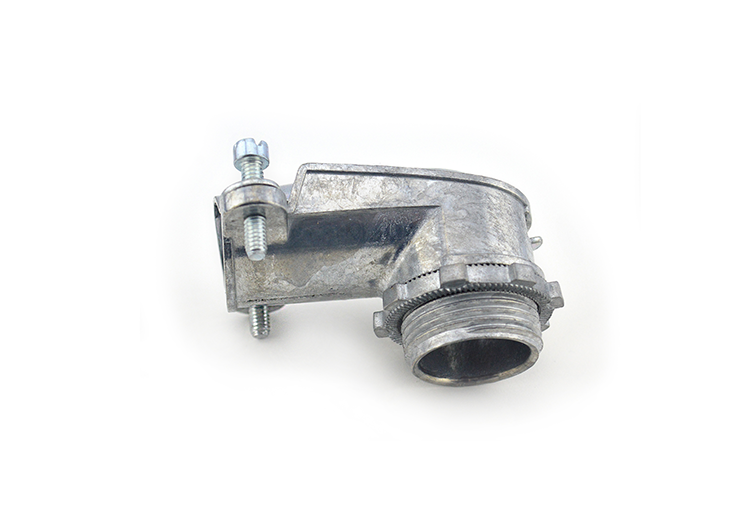

Bridgeport Fittings 806DC2 90-degree Conduit Connector 3/4 in

Product Description

The BRIDGEPORT FITTINGS 806DC2 is a 90-degree connector designed to join flexible metal conduit or AC/MC cable to an electrical box or enclosure at a right angle. Constructed from die cast zinc, it provides a precise fit and strong corrosion resistance suited for use in harsh or demanding environments. The connector secures to the conduit or cable using a steel cover and two set screws, then locks into a box knockout using an included locknut. Licensed electricians and electrical contractors install this fitting as part of branch circuit and equipment wiring assemblies where a 90-degree entry angle is required.

This connector is used in residential, commercial, and light industrial electrical installations where flexible metal conduit or AC/MC cable must enter a box or enclosure at a 90-degree angle. It is suited for installations requiring corrosion-resistant hardware, such as damp locations, equipment rooms, or exposed conduit runs. The 90-degree profile reduces bending stress on the cable or conduit near the termination point and helps maintain a clean, code-compliant installation in tight spaces.

Key Features

• 90-degree angle entry for connecting flexible metal conduit or AC/MC cable to electrical boxes and enclosures
• Die cast zinc construction provides corrosion resistance for use in harsh environments
• Steel cover and two set screws secure conduit or cable to the connector body
• Locknut design secures the connector firmly into the box knockout
• Fits 3/4 inch trade size flexible conduit or cable with an outer diameter of 0.875 inches to 1.000 inches into a 3/4 inch knockout

Compatibility

Designed for use with 3/4 inch trade size flexible metal conduit or AC/MC cable ranging from 0.875 inches to 1.000 inches in outer diameter, installed into a 3/4 inch knockout on an electrical box or enclosure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify the absence of voltage before beginning any work at the enclosure. Fasten the conduit or cable into the connector using the steel cover and set screws before tightening the locknut into the box knockout. Do not over-tighten the set screws, as this may damage the cable jacket or conduit armor.

Technical Specifications

• Trade Size: 3/4 inch
• Cable Outer Diameter Range: 0.875 inches to 1.000 inches
• Knockout Size: 3/4 inch
• Material: Die Cast Zinc
• Cover Material: Steel
• Angle: 90 degrees

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 806DC2
