Bridgeport Fittings 804DC2 conduit connector, flex 90 degree 1/2 inch

Product Description

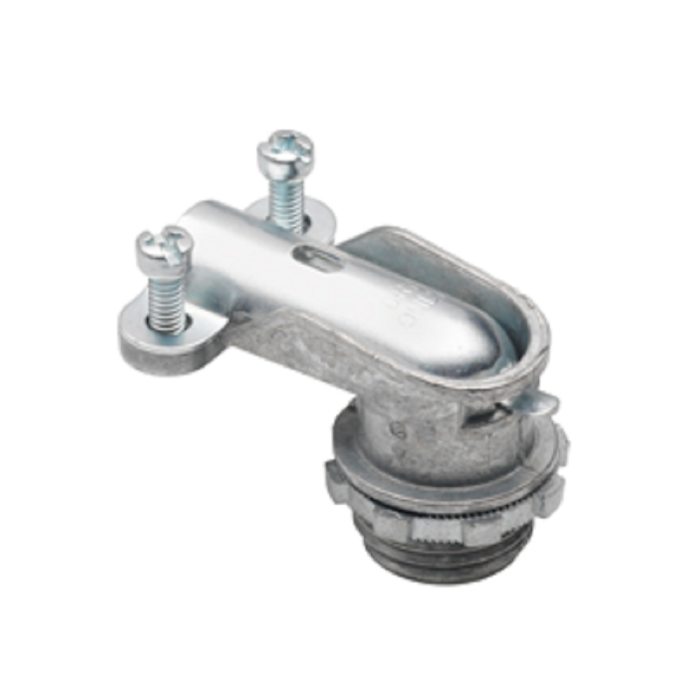

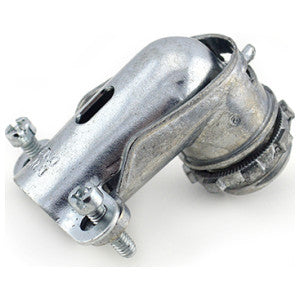

The BRIDGEPORT FITTINGS 804DC2 is a 90-degree connector designed for 1/2 inch flexible metallic conduit. Constructed from zinc die cast, it provides a secure squeeze connection for connecting flexible metal conduit to a box or enclosure. This non-insulated throat connector is suitable for use with MC cable and has a cable opening range of 0.75 to 0.875 inches.

• 90-degree connector for 1/2 inch flexible metallic conduit
• Constructed from durable zinc die cast material
• Features a squeeze connection type with a non-insulated throat

Product Highlights

This 90-degree zinc die cast connector is designed for 1/2 inch flexible metallic conduit, ensuring a secure connection to electrical enclosures.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 804DC2
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: United States
• UPC: 78174715804
• UNSPSC: 39121419
• Finish: Ball burnish
• Connection Type: Squeeze
• Material: Zinc Die Cast
• Type: Armored Cable and Flexible Connector
• Use With: MC Cable and 1/2 Inch Flexible Metal Conduit
• Angle: 90 Degree
• Throat Type: Non-Insulated
• Number of Conductors: 1 Cable
• Trade Size: 1/2 Inch
• Cable Opening Range: 0.75 to 0.875 Inch
• Throat Diameter: 0.625 Inch
• Cable Openings: Single
• Installation Type: 2-Screw Clamp
