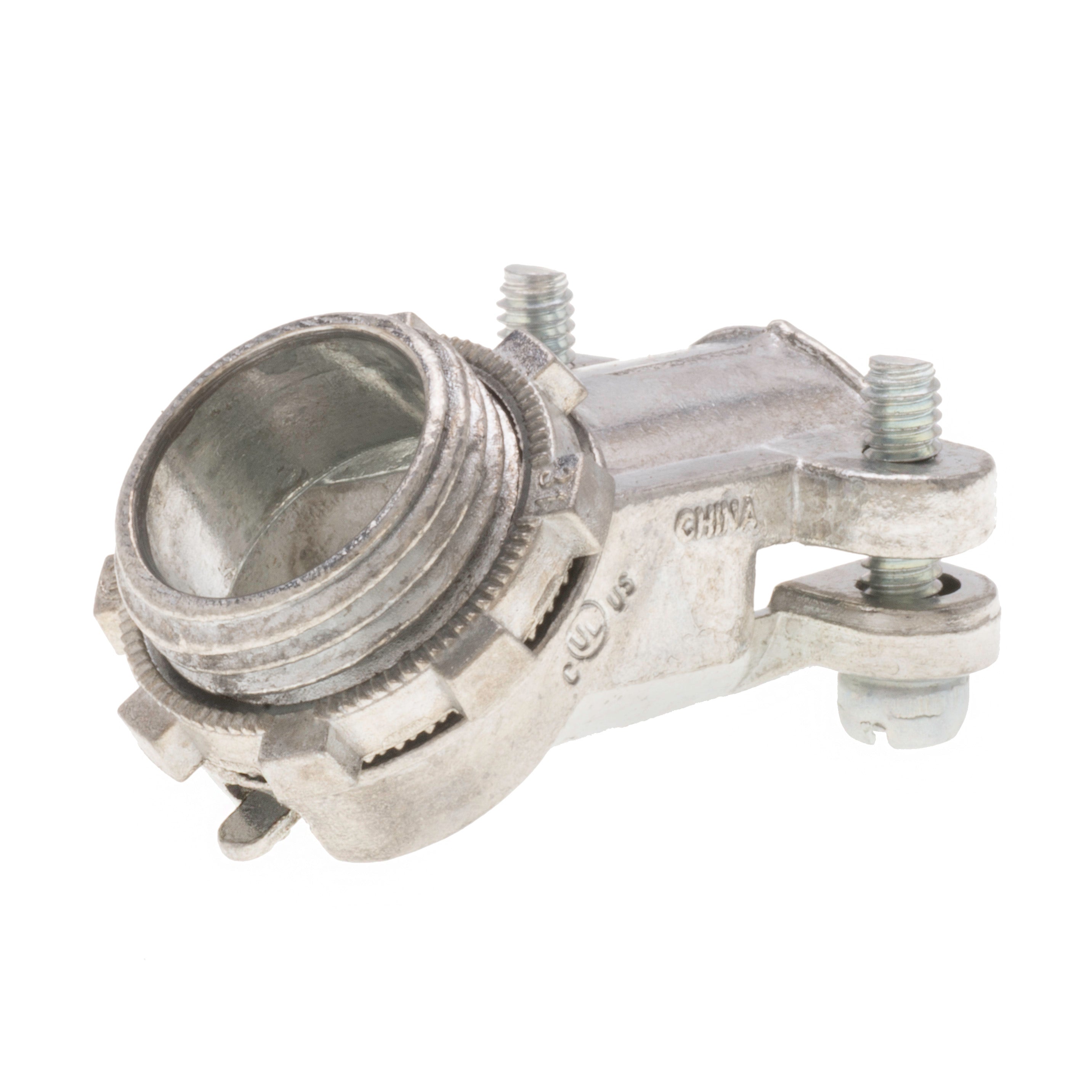

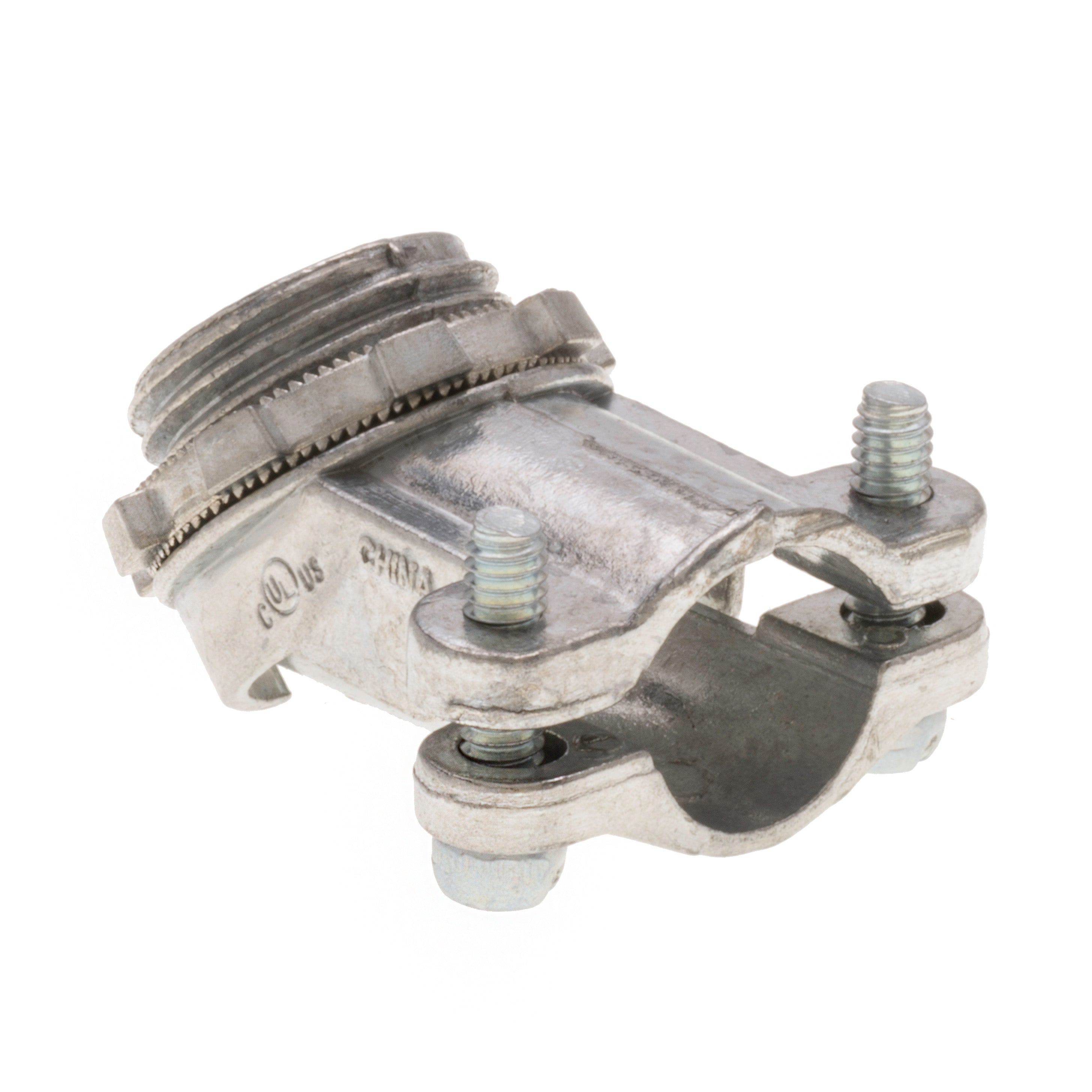

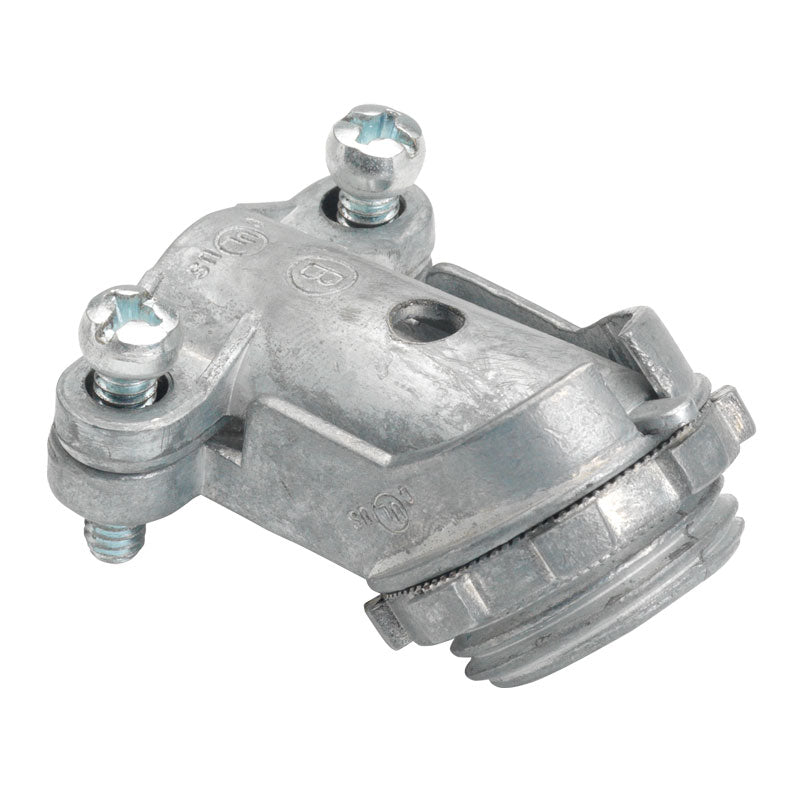

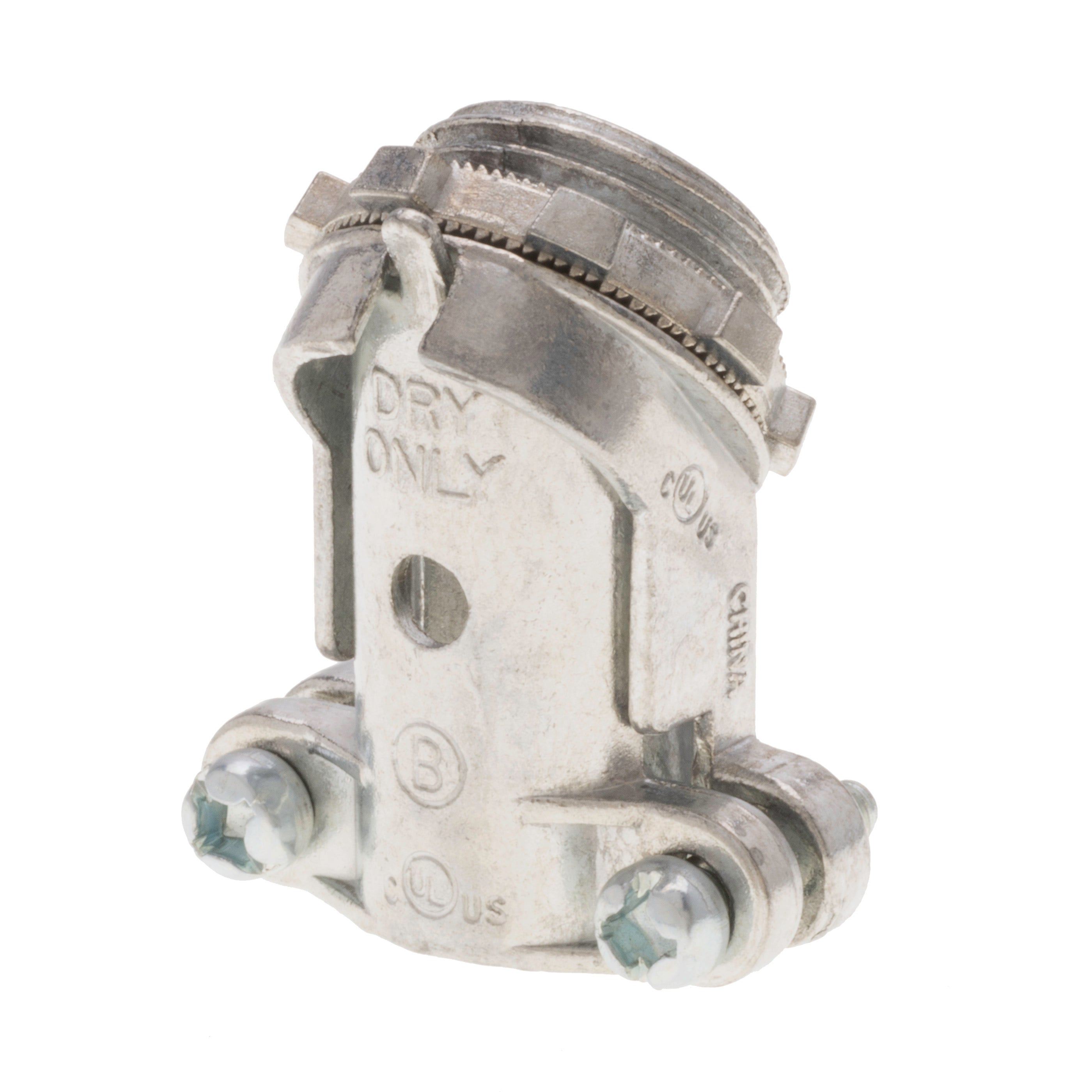

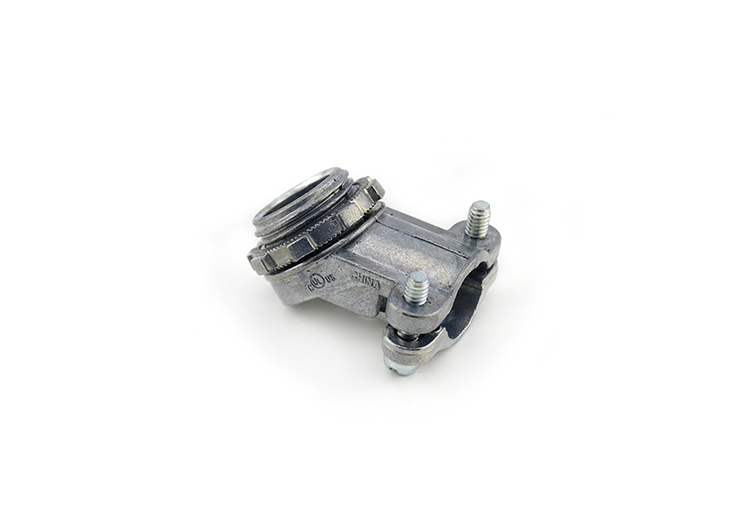

Bridgeport Fittings 800-DC2 3/8 inch Ball Burnished Zinc Die Cast 45 Degree Flex Connector Box of 25

Product Description

The BRIDGEPORT FITTINGS 800-DC2 is a 45-degree connector designed for joining 3/8 inch flexible metallic conduit or armored cable to an electrical box or enclosure. Constructed from zinc die-cast material with a ball burnished mirror smooth finish, this connector ensures a secure and precise connection. Its non-insulated throat contributes to reliable performance in various electrical installations. This flex connector is suitable for applications requiring a 45-degree bend.

• Designed for 3/8 inch flexible metallic conduit or armored cable
• Features a 45-degree angle for connecting to electrical boxes or enclosures
• Constructed from zinc die-cast with a ball burnished mirror smooth finish for durability and corrosion resistance

Product Highlights

45-degree zinc die-cast connector for 3/8 inch flexible conduit and armored cable.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 800-DC2
• Country of Origin: China

Technical Specifications

• ECCN: EAR99
• Country of Origin: China
• UNSPSC: 39121419
• Throat Type: Non-Insulated
• Angle: 45 Degree
• Flex Size: 3/8 Inch
• Material: Zinc Die Cast
• Type: Connector
• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B
• EAN/UCC-13: 0781747158000
• GTIN: 30781747158001
• Prop 65 Flag: No
• UPC: 781747158000
• Connection Type: Single Screw
• Use With: Flexible Metallic Conduit
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Flexible Metal Conduit Armored Cable
• Standard Package: 100
• Approval: UL
• ROHS Compatible: Yes
• Throat Size: 0.562 Inch Dia
