Bridgeport Fittings 675DC2 2-screw strap type cable connector 1-1/2 inch knockout oval

Product Description

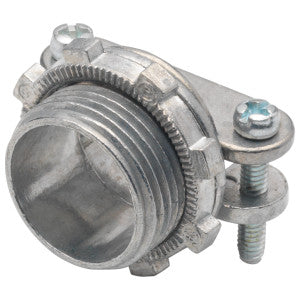

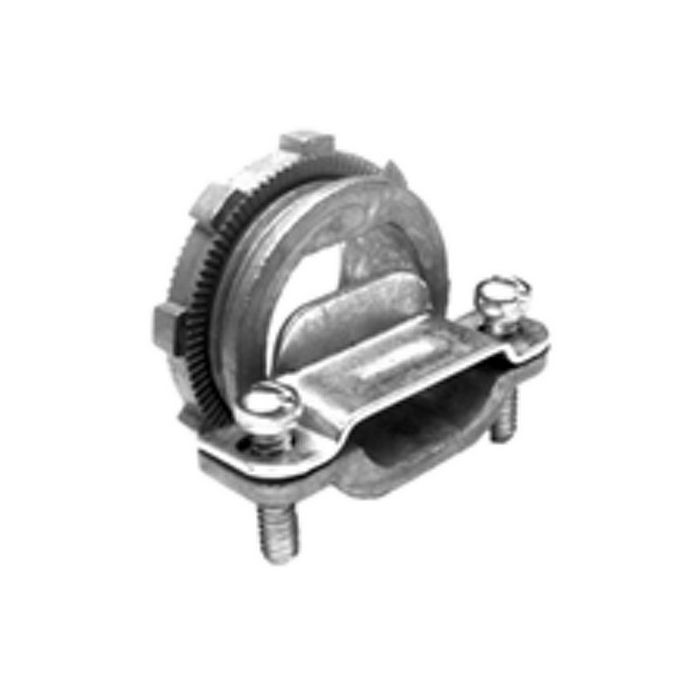

The Bridgeport Fittings 675DC2 is a 2-screw, strap type connector designed for securing non-metallic and SJO oval cables. It features a 1-1/2 inch knockout and is suitable for cable openings ranging from 0.75 to 1.25 inches. Constructed from die cast zinc with a ball burnished finish, this connector ensures a secure connection for oval service entrance cables to an enclosure.

• Furnished with 2-way Phillips/slotted head screw for versatile installation.
• Features a 2-screw strap type design for secure cable retention.
• Designed for 1-1/2 inch knockouts and a 1-1/2 inch diameter throat.

Product Highlights

Die cast zinc connector for non-metallic and SJO oval cables, featuring a 2-screw strap type and 1-1/2 inch knockout.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 675DC2
• Country of Origin: US - United States

Technical Specifications

• Manufacturer: Bridgeport Fittings
• Finish: Ball Burnished/Mirror Smooth
• Suitable For Use With: Non-Metallic/SJO Oval Cable
• Cable Openings: 0.75 to 1.25 in
• Angle: 180 Degrees
• Diameter: 2.375 in
• Length: 2.875 in
• Knockout Size: 1.5 in
• Application: Connecting nonmetallic cable to box or enclosure
• Connection Type: Screw Strap
• Material: Die Cast Zinc
• Type: Oval Cable
• Use With: Oval Service Entrance Cable
• Color Family: Metallic
