Bridgeport Fittings 561-DC2 MC cable connector with set-screw strap-type connection 3/4 inch 10-pack 180 degree

Product Description

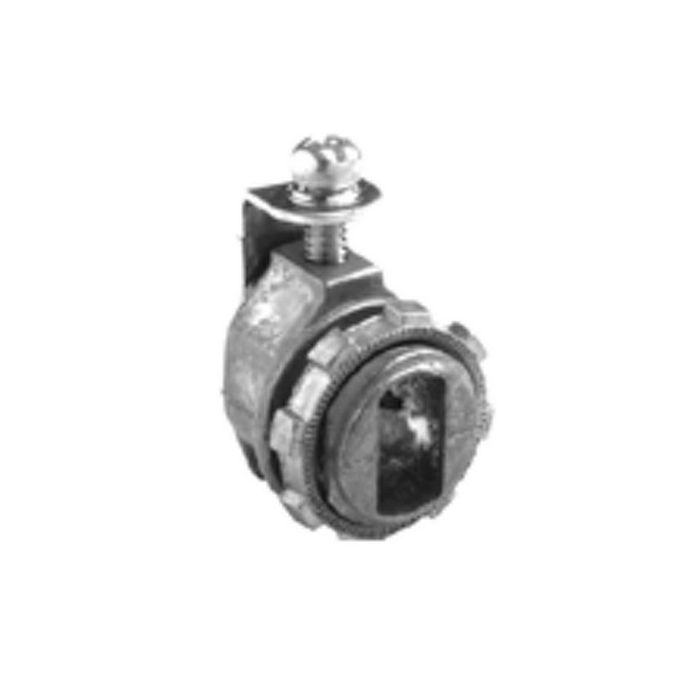

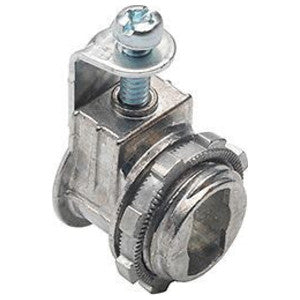

The Bridgeport Fittings 561-DC2 is a zinc die cast set-screw strap type conduit connector designed for 3/4 inch MC cable. It features a Tri-Drive screw for secure installation and accommodates cable openings from 0.61 to 0.87 inches. This connector is compatible with 10/4 to 8/3 AWG AC/MC/HCF cable and has a ball burnished, mirror smooth finish, suitable for straight, non-insulated installations.

• Designed for 3/4 inch MC cable with a maximum opening of 0.870 inch
• Features a set-screw strap type connection and Tri-Drive screw for secure installation
• Constructed from durable zinc die cast with a ball burnished, mirror smooth finish

Product Highlights

Durable zinc die cast connector for 3/4 inch MC/AC/HCF cable, featuring a Tri-Drive set-screw strap connection.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 561-DC2
• Country of Origin: China

Technical Specifications

• Brand: Bridgeport Fittings
• MPN: 561-DC2
• Product Type: Conduit Connector
• Screw Type: Tri-Drive
• Trade Size: 3/4 Inch
• Cable Openings: 0.61 to 0.87 Inch
• Cable Compatibility: 10/4 to 8/3 AWG AC/MC/HCF Cable
• Material: Die Cast Zinc
• Finish: Ball Burnished/Mirror Smooth
• Connector Type: Strap Connector
• Angle: 180 Degree
• OD Min: 0.62 Inch
• OD Max: 0.87 Inch
• Installation: Saddle-Strap, 1-Screw
• Throat: Non-Insulated
