Bridgeport Fittings 560-DC2 conduit connector electrical fitting 3/8 inch 1/2 inch 500 per pack

Product Description

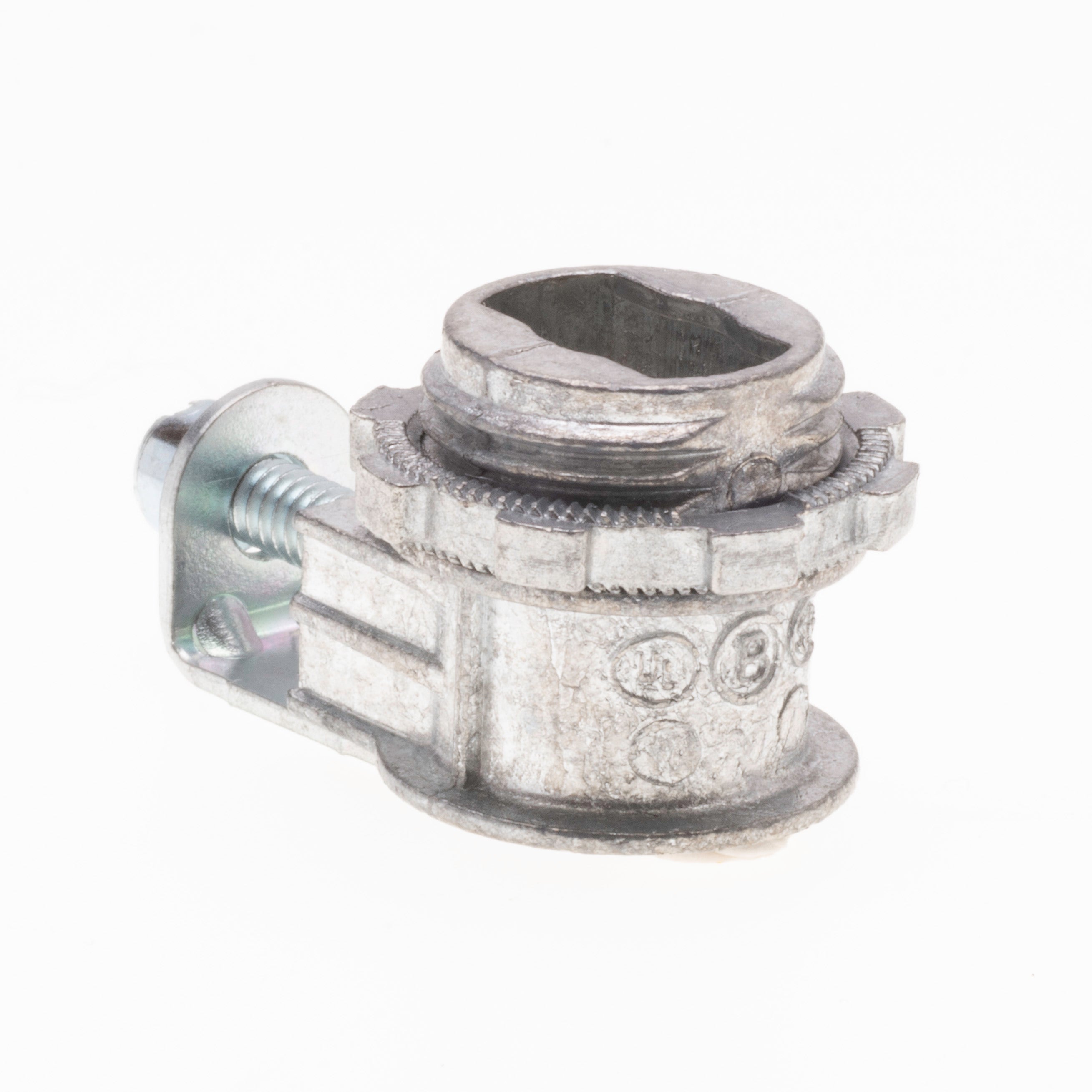

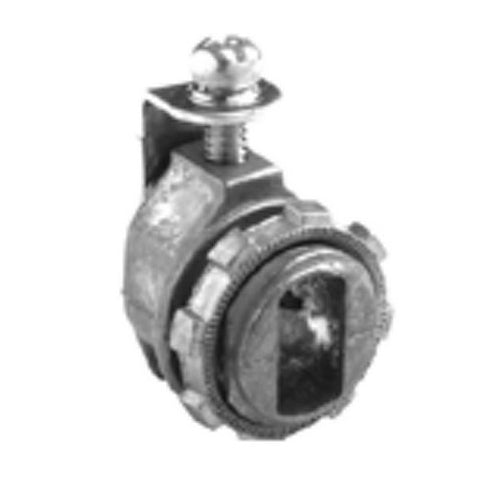

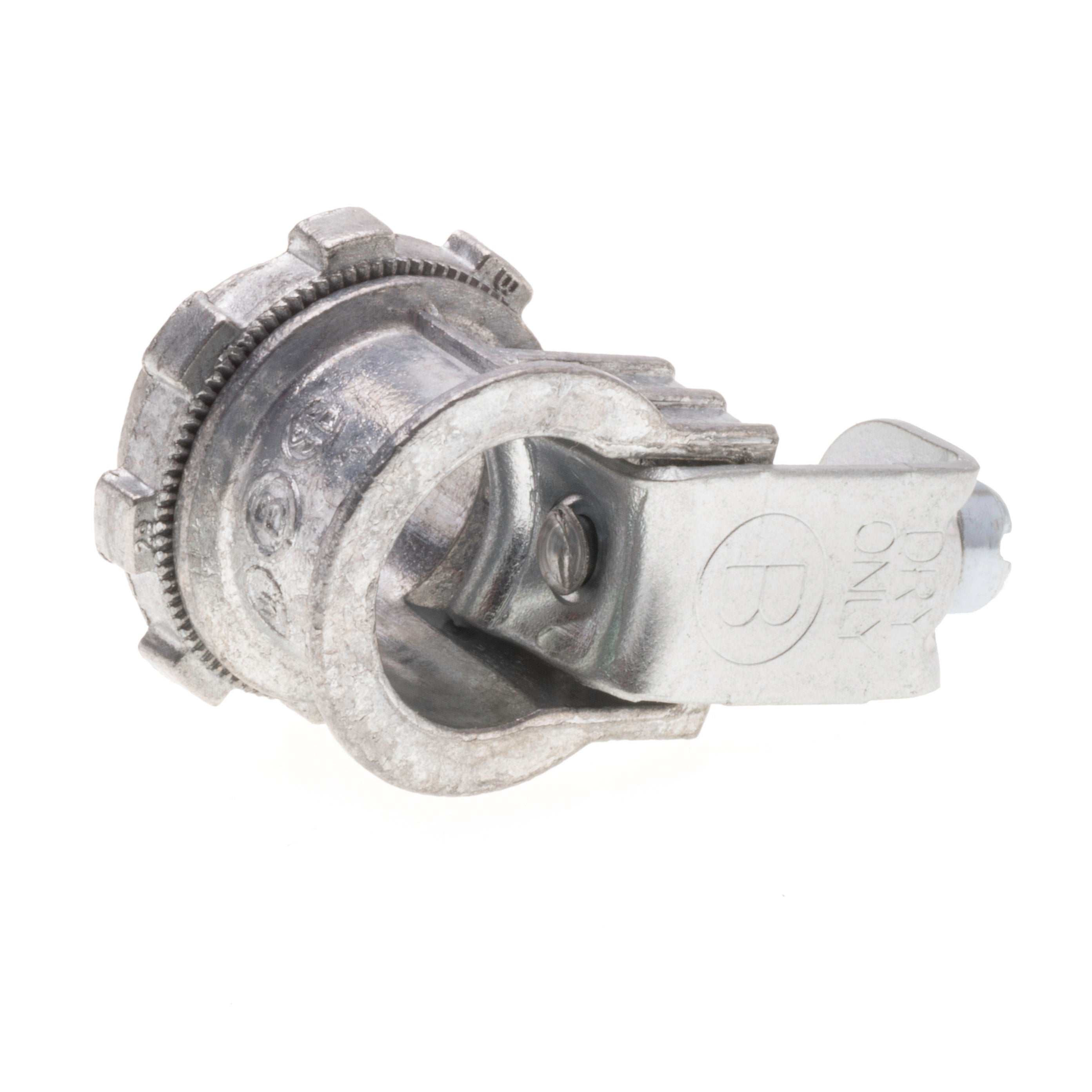

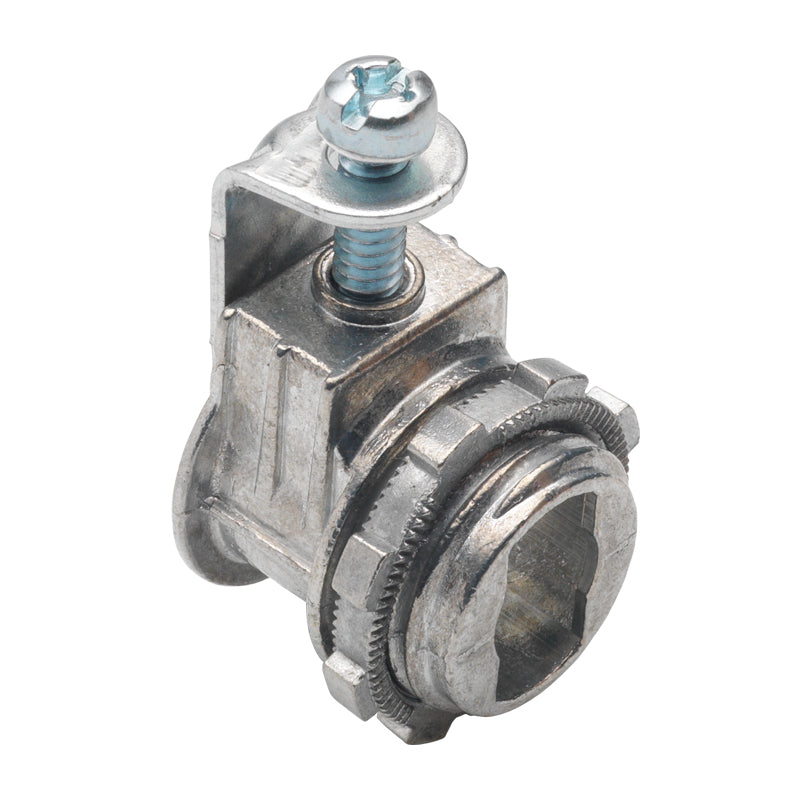

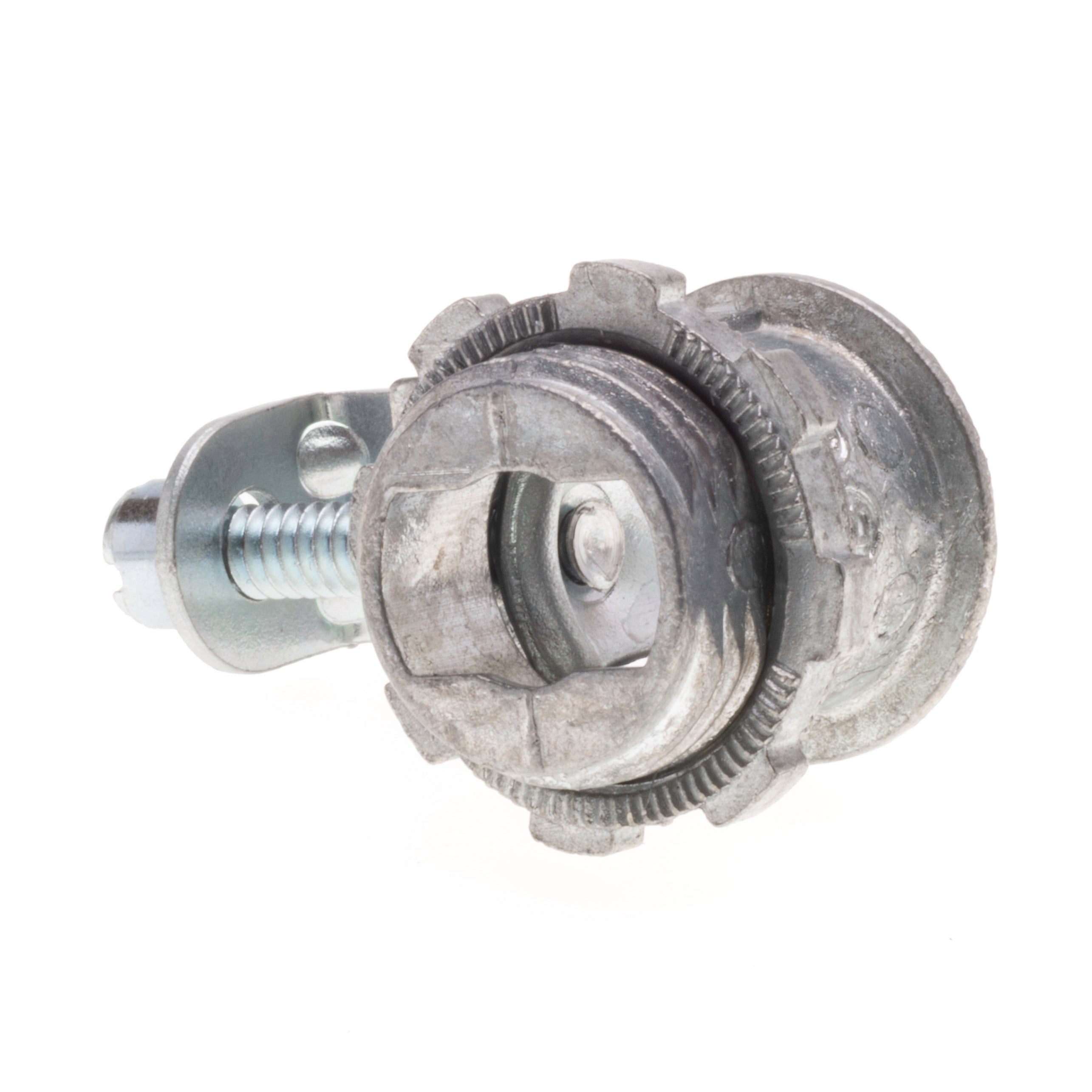

The Bridgeport Fittings 560-DC2 is a 1-screw strap connector designed for AC/MC/MCI-A cable types. Constructed from ball burnished mirror smooth die-cast zinc, this electrical fitting has a 3/8 inch trade size and a 1/2 inch knockout size. It accommodates cord sizes from 14/4 to 10/4 AWG and features a 1/2 inch throat diameter. This connector is suitable for connecting cables to electrical boxes or enclosures, ensuring secure and compliant installations.

• Made in USA
• RoHS Compliant
• Features Tri-Drive Screw

Product Highlights

This 1-screw strap connector is made from die-cast zinc, designed for AC/MC/MCI-A cables with a 3/8 inch trade size and 1/2 inch knockout. It features a Tri-Drive screw for secure connections.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 560-DC2
• Country of Origin: USA

Technical Specifications

• Applicable Standard: Federal Specification A-A-50552, FB-1 NEMA, UNSPSC 39121419, REACH
• Cable Conduit Type: AC/MC/MCI-A
• Cable Openings: 0.44 to 0.61 in
• Category: Electrical & DataCom
• Compatibility: 14/4 to 10/4 AWG MCI-A, 12/2 to 10/4 AWG AC/MC/MCIA/HCF/HCFMCI-A, 14/2 to 10/3 AWG NM Cable and 3/8 in Flexible Metal Conduit
• Connector Type: Single Screw, Strap Type
• Cord Size: 14/4 to 10/4 AWG
• Country of Origin: United States
• Finish: Ball Burnished Mirror Smooth
• Knockout Size: 1/2 Inch
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Number of Conductors: 1 Cable
• Number of Screws: 1
• Prop 65 Flag: No
• Standard & Approvals: CSA LR39354 Certified, UL E20534, 514-B Listed, RoHS Compliant
• Throat Diameter: 1/2 Inch
• Trade Size: 3/8 Inch
• UNSPSC Code: 39121700
