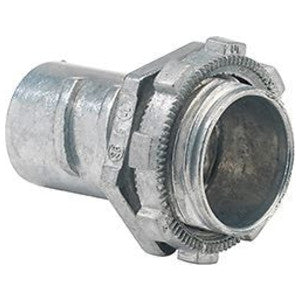

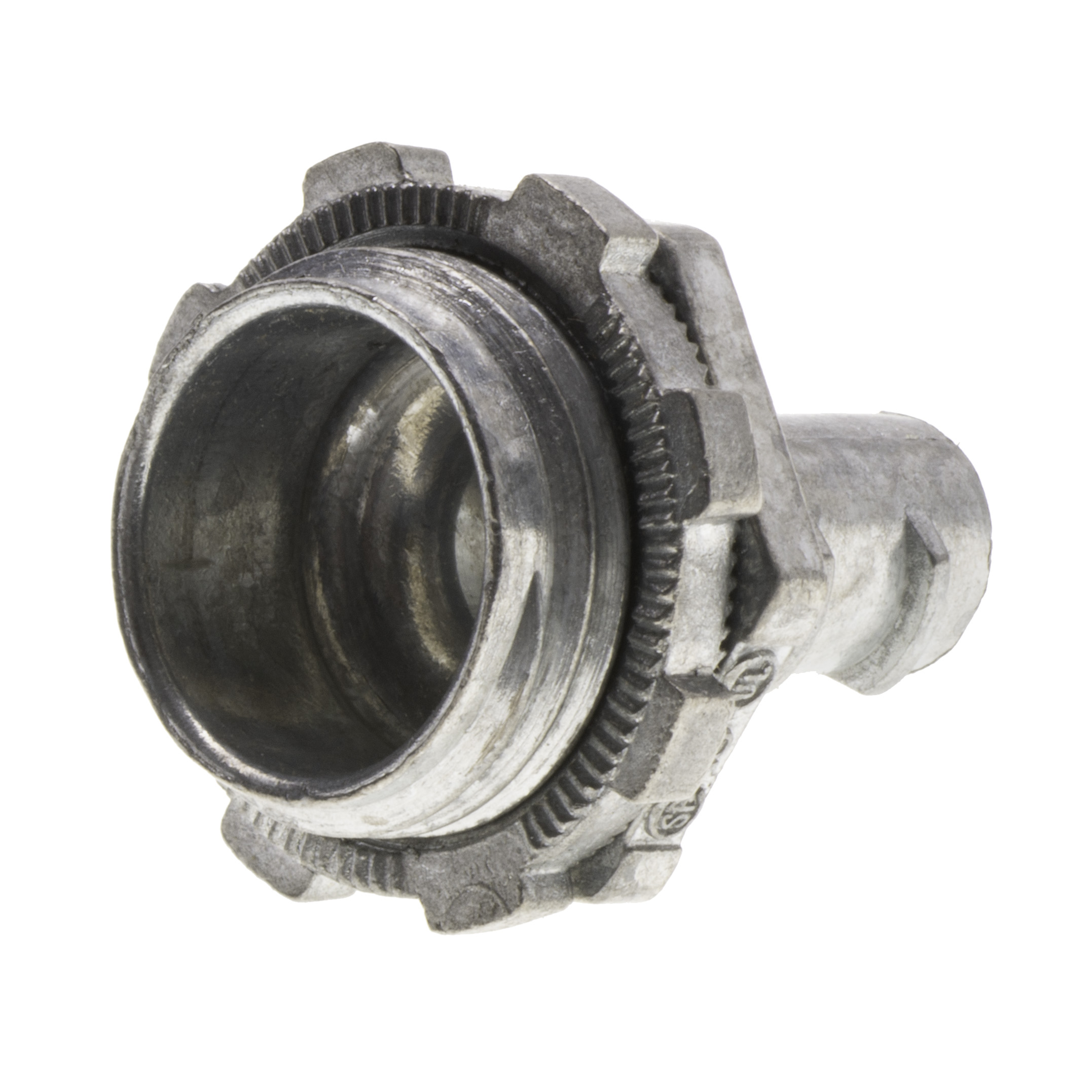

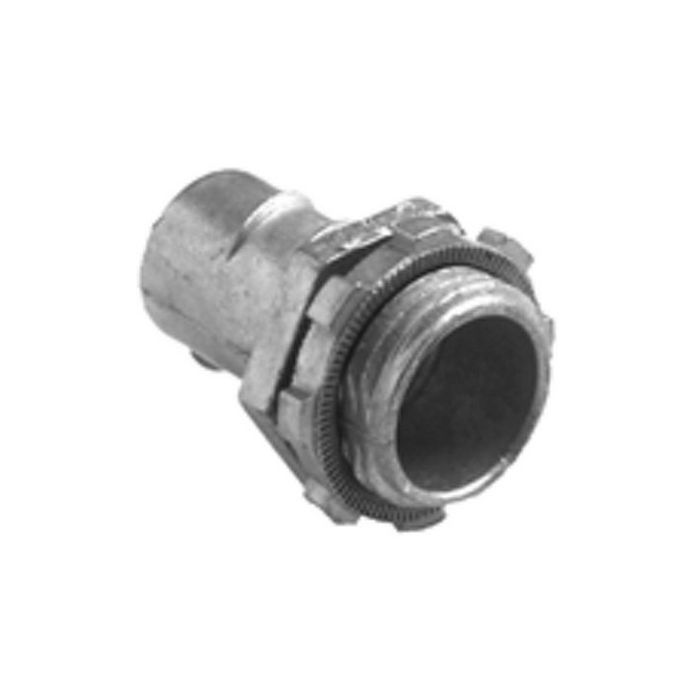

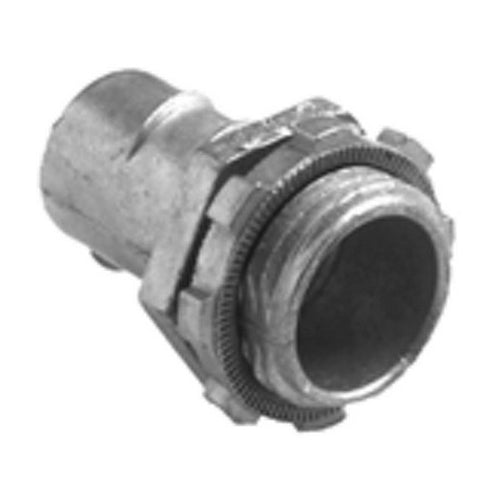

Bridgeport Fittings 521-DC2 straight screw-in flex connector 3/4 inch 15521

Product Description

The BRIDGEPORT FITTINGS 521-DC2 is a straight screw-in connector designed for 3/4 inch flexible metallic conduit. This zinc die cast connector facilitates reliable connections between flexible metal conduit and an electrical box or enclosure knockout. It features a non-insulated throat and a ball burnished/mirror smooth finish, ensuring precise fit and performance. The threaded mount allows for secure installation.

• Designed for 3/4 inch flexible metallic conduit, ensuring compatibility for various installations.
• Constructed from zinc die cast with a ball burnished/mirror smooth finish for durability and corrosion resistance.
• Features a screw-in design for quick and easy installation, connecting conduit to electrical boxes or enclosures.

Product Highlights

Straight screw-in connector for 3/4 inch flexible metallic conduit, featuring zinc die cast construction and a ball burnished finish for secure, corrosion-resistant connections.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 521-DC2
• Country of Origin: United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: United States
• UNSPSC: 39121419
• Throat Type: Non-Insulated
• Size: 3/4 in
• Application: Flexible Metal Conduit
• Material: Die Cast Zinc
• Finish: Ball Burnished/Mirror Smooth
• Mounting Type: Threaded
• Standards/Approvals: RoHS Compliant|UL 514B File No. E9391|CSA File No. LR39354|NEMA FB-1|Federal Specification A-A-50552
• Maximum Operating Temperature: 85 °C (185 °F)
• Minimum Operating Temperature: -20 °C (-4 °F)
• IP Rating: IP00
