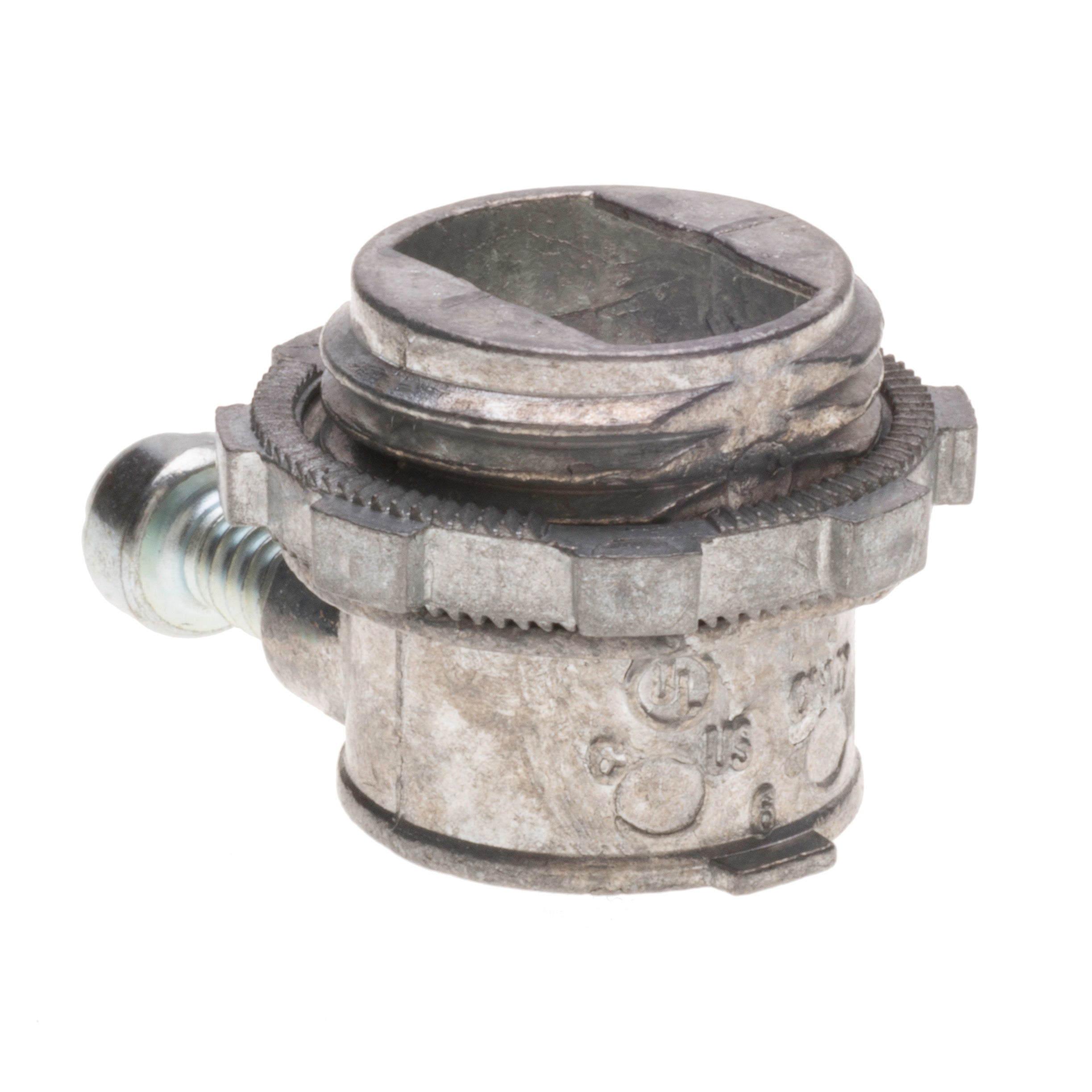

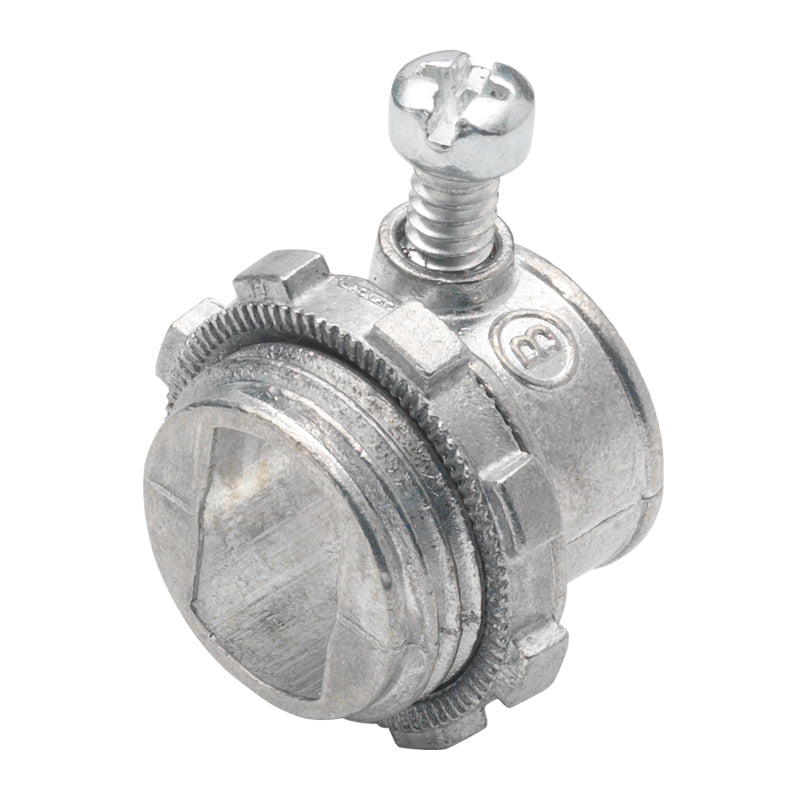

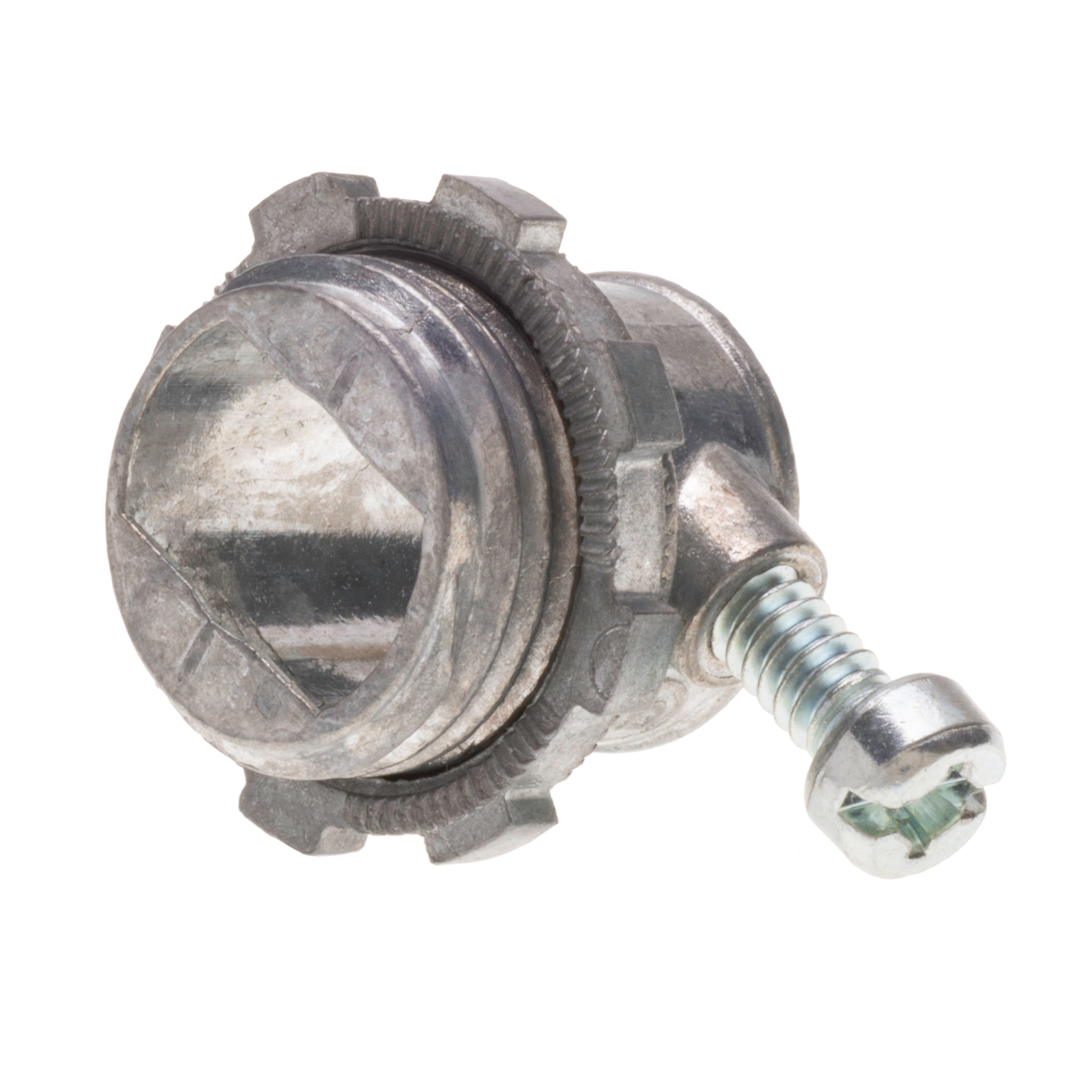

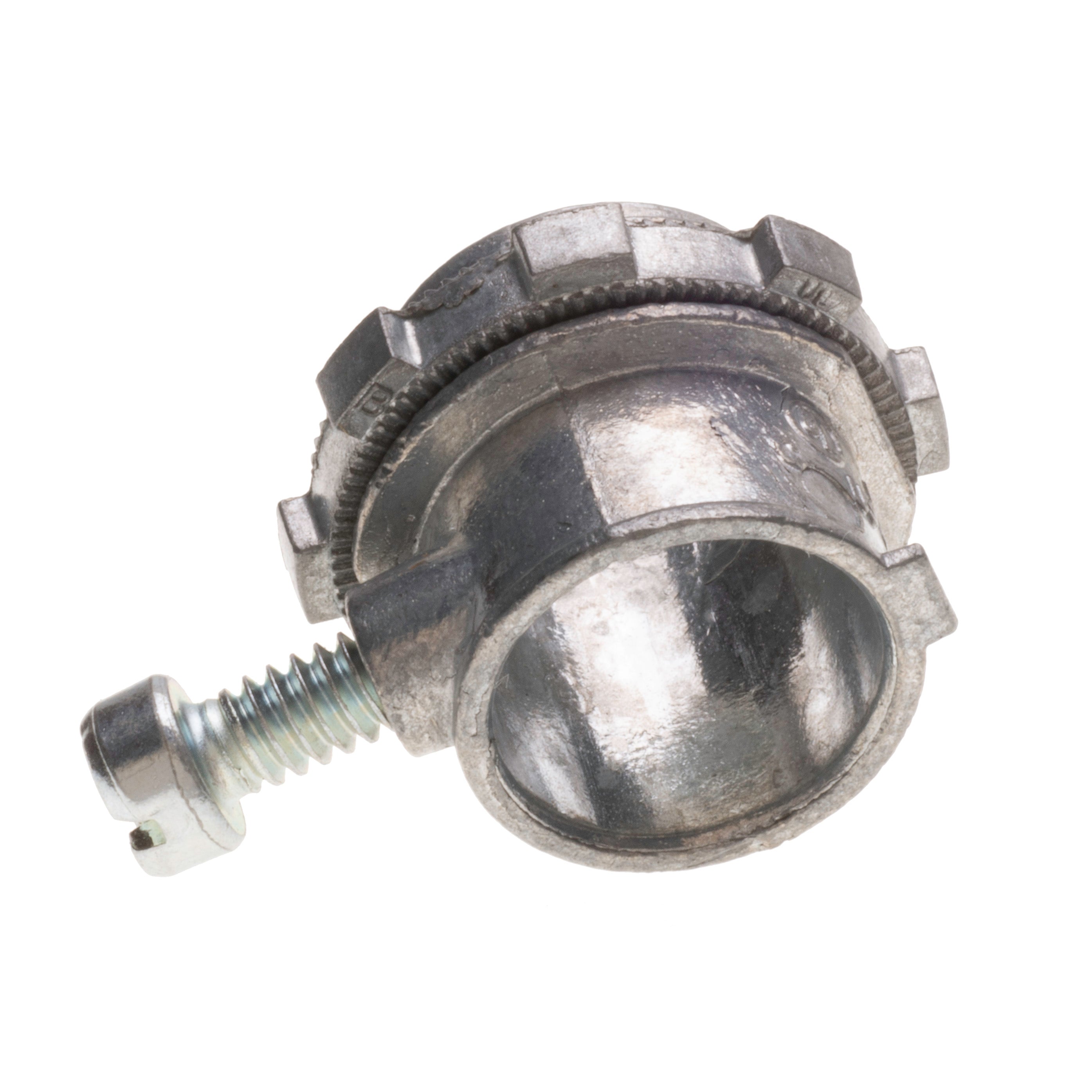

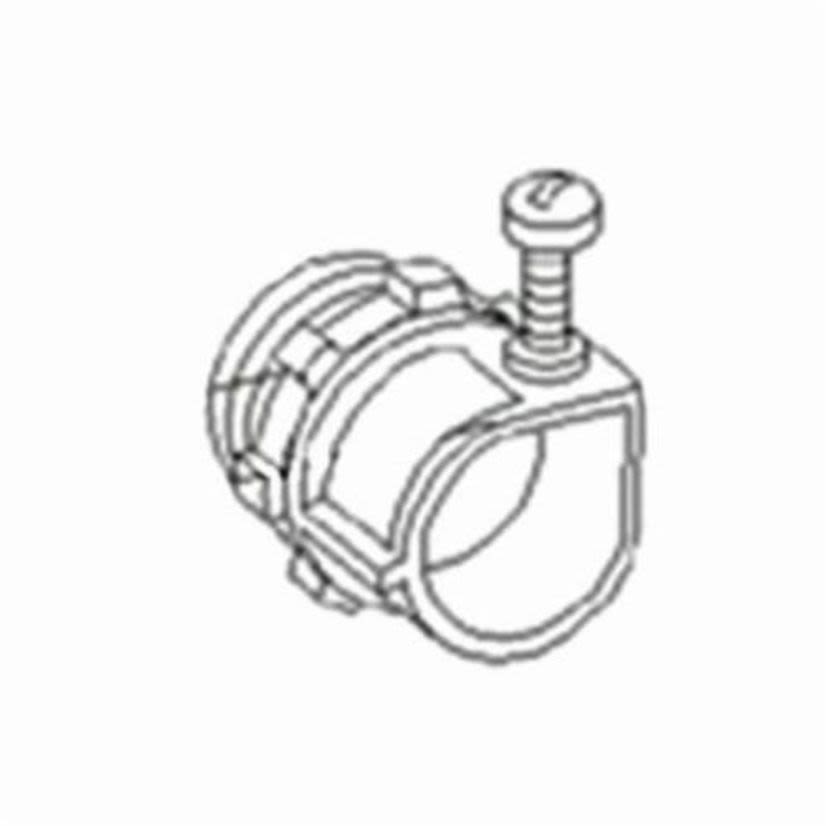

Bridgeport Fittings 501DC2 Set Screw Connector 3/8 inch 180 degree

Product Description

The BRIDGEPORT FITTINGS 501DC2 Set Screw Connector is designed to join flexible metal conduit (FMC), metal clad cable (MC), metal clad interlocking armor ground cable (MCI-A), and metal clad power control signal cable (MC-PCS) to an electrical box or enclosure. This non-insulated connector features a die-cast zinc body for precise fit and corrosion resistance, suitable for 3/8 inch trade size applications.

• Features a set screw design for secure, hand-tightened connections with a screwdriver.
• Connects 3/8 inch flexible metal conduit, MC, MCI-A, and MC-PCS cable to a 1/2 inch knockout.
• Constructed from die-cast zinc for durability, precise fit, and excellent corrosion resistance.

Product Highlights

This connector ensures secure and reliable connections for various armored and metal-clad cables to electrical enclosures.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 501DC2
• Country of Origin: United States

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B
• Material: Zinc Alloy
• UNSPSC: 39121419
• EAN: 0781747155016
• GTIN: 30781747155017
• Prop 65 Flag: No
• UPC: 781747155016
• Compatible Cable Types: Steel or AL AC/MC/MCI-A Cable
• Cable Opening Range: 0.43 to 0.61 in
• Insulation Type: Non-Insulated
• Angle: 180 deg
• Mounting Type: Threaded
• Country of Origin: United States
• Package Type: EACH
• Trade Size: 3/8 in
• Certifications: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 514B File No. E20534|NEMA FB-1|Federal Specification A-A-50552|REACH Compliant
• Connector Type: Set Screw Connector
• Number of Cables: 1 Cable
