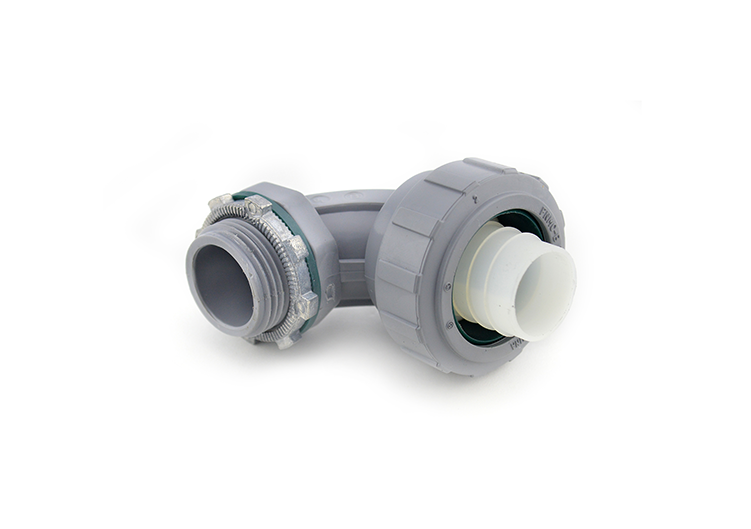

Bridgeport Fittings 471NMLT 3/4 in 90 deg Nm Lqdt

Product Description

The Bridgeport Fittings 471NMLT nonmetallic liquid tight 90-degree connector is designed to join nonmetallic “Type B” liquid tight conduit to a box or enclosure in wet environments. Featuring NPT threads, a knockout gasket, and an inner sealing, this plastic connector ensures a liquid tight connection for electrical systems. It is suitable for outdoor applications and meets UL-514B standards.

• Designed for outdoor use, these plastic fittings provide a lightweight, durable, and sunlight-resistant solution for securing nonmetallic liquid tight conduit.
• Liquid tight 90-degree connectors feature NPT threads, a knockout gasket, and an internal sealing ring for keeping water out of electrical systems.
• Installation involves sliding the compression nut and sealing ring over the conduit, threading the ferrule into the conduit channel, and retightening the compression nut.

Product Highlights

UL-Listed and NEMA TYPE 2, 3, 3R, 4, 4X, 12 compliant, meeting NEC requirements for wet locations.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 471NMLT
• Country of Origin: USA

Technical Specifications

• Material: Plastic
• UL Standard: UL-514B
• UNSPSC: 39121420
• Prop 65 Flag: No
• ECCN: EAR99
• Application: 90 Degree Connector for use with non-metallic "Type B" liquid tight conduit.
• Angle: 90 Deg
• Connector Type: Liquidtight, Nonmetallic
• Size: 3/4 IN
• Type: Connector
• Certifications: UL-Listed, NEMA FB-1
• Finish: Plain
