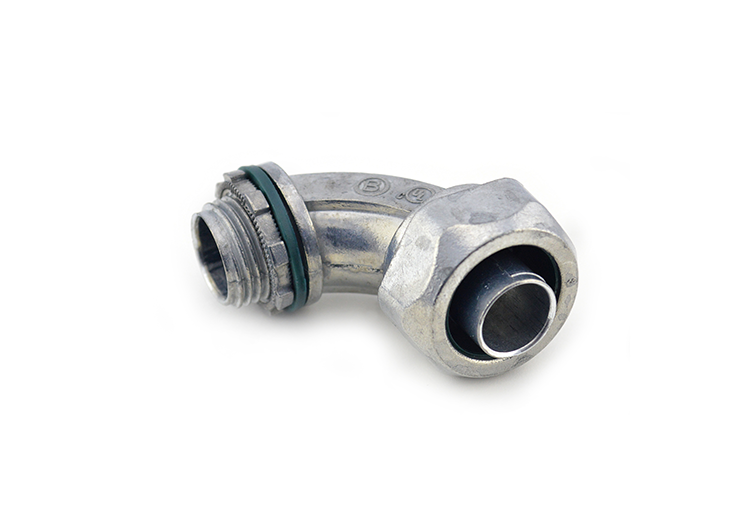

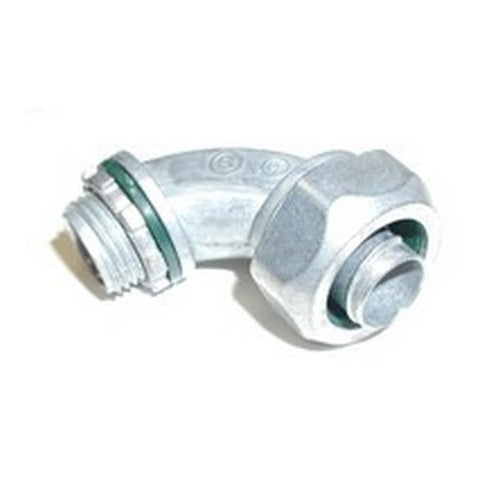

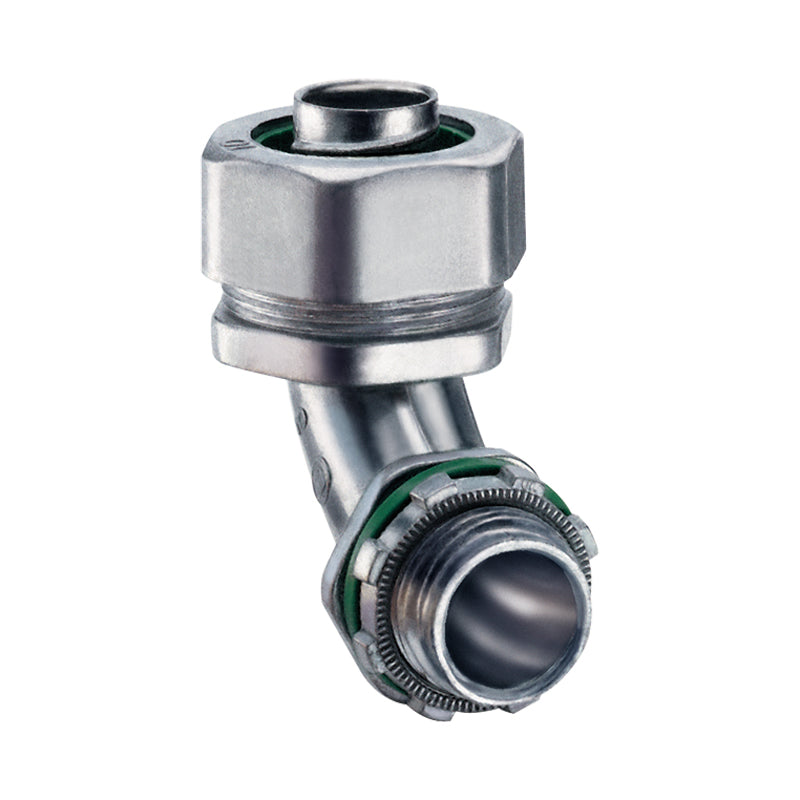

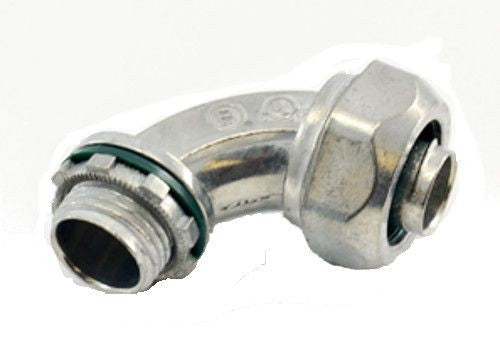

Bridgeport Fittings 470LT2 Liquidtight Connector 1/2 Inch 90 Degree

Product Description

The Bridgeport Fittings 470LT2 is a 90-degree liquidtight connector designed to join metallic or nonmetallic “Type B” liquid tight conduit to an electrical box or enclosure. It features NPT threads, a polyethylene gasket, and an inner sealing ring to ensure a liquid tight seal, making it suitable for wet environments. This connector is constructed from zinc alloy and has a non-insulated throat.

• Listed for use with both metallic and nonmetallic liquid tight conduit.
• Features NPT threads, a knockout gasket, and an internal sealing ring for liquid tight integrity.
• UL-Listed and meets NEMA TYPE 2, 3, 3R, 4, and 12 requirements for wet locations.

Product Highlights

Designed for ease of assembly and corrosion resistance, this connector is suitable for hazardous locations and features a 105 deg C temperature rating.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 470LT2
• Country of Origin: USA

Technical Specifications

• Material: Zinc Alloy
• UL Standard: UL-514B
• Application: 90 Degree connector for use with metallic and nonmetallic "Type B" liquid tight conduit, including hazardous locations.
• Throat Type: Non-Insulated
• Angle: 90 Degree
• Connector Type: Liquidtight
• Trade Size: 1/2 Inch
• Finish: Zinc
• Temperature Rating: 105 deg C
• Thread Length: 9/16 inch
• Certifications: CSA Certified, UL Listed, RoHS Compliant, Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2
